Operation 3
Lock for loader unit control lever and electrical lock for 3rd control circuit lever (option)
The function of switch 51 on the control lever is described as seen in travel direction!
Risk of accidents due to unlocked control lever!
In order to avoid risk of accidents during machine travel on public roads:
☞Lock control lever 11 (loader unit) against unintentional operation
Risk of accidents. When working with attachments without hydraulic
functions, unintentionally actuating the switch 51 on the control lever
(3rd control circuit) can unlock the attachment from the quickhitch!
☞Lock the 3rd control circuit when working with attachments without hydraulic
functions
☞Secure control lever 11 (loader unit)
• Push control lever 11 down vertically in neutral position
➥ The control lever is locked in this position and can no longer be moved
➥ The loader unit is secured against unintentional operation
☞Lock the 3rd control circuit
• Slide the lock in switch 66 downward and press switch to position A
➥ The 3rd control circuit is disabled and secured against unintentional operation

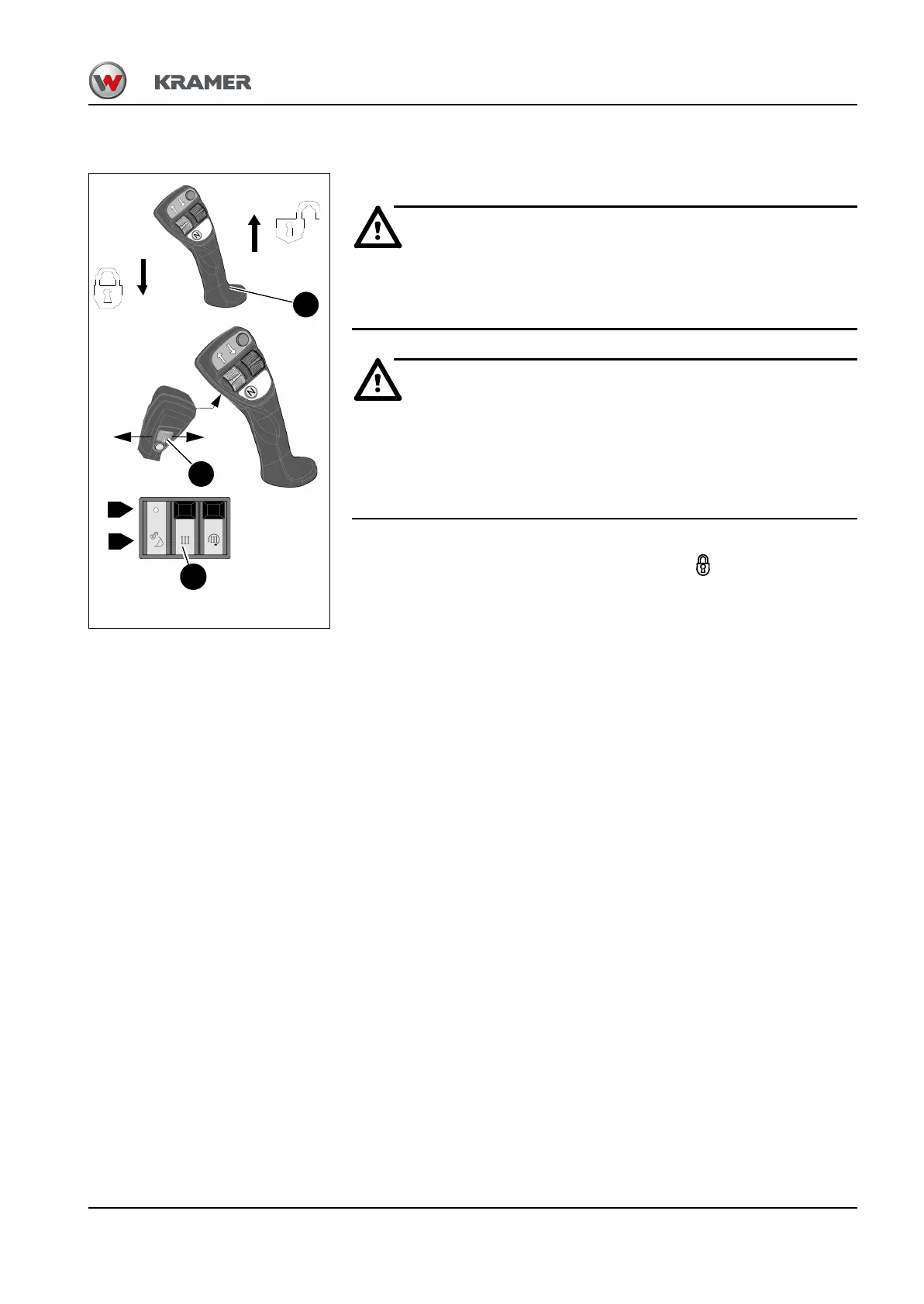

Fig. 65 : Locking the control levers/3rd control circuit
(option)
11
B
A
51
AB
66
