6 Technical data
Main fuse box with relays
The main fuse box with the power relays and the preheating time control unit is located in
the engine compartment on the right on the rear wall
.
Relays (overview)
The relays are located underneath the switch panel on the side console on the right.

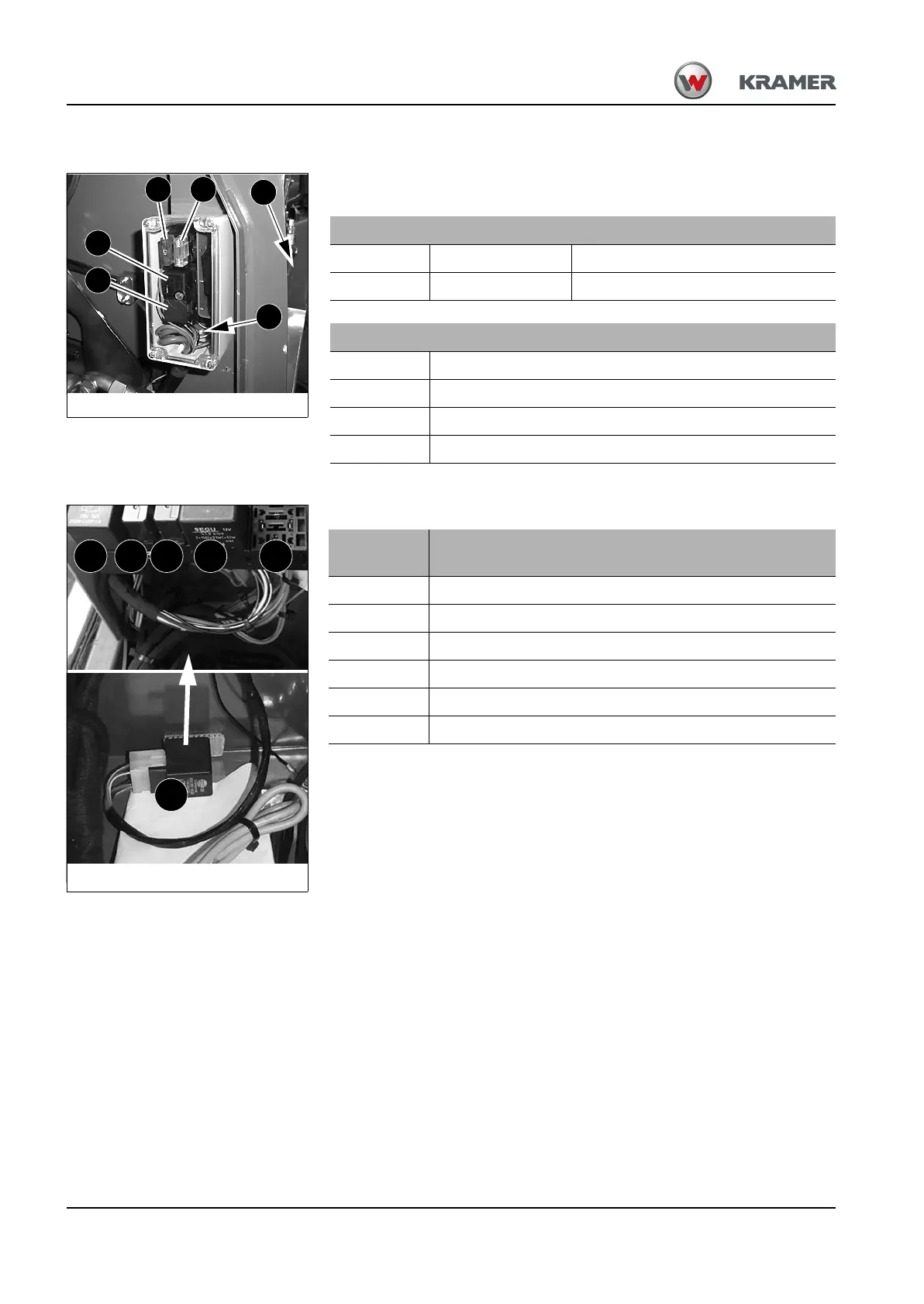

Fig. 193 : Main fuse box
K5
F17F18
K9
K8
K7
Fuse no. Rated current (A) Protected circuit
F17 80 A Main fuse (machine)
F18 40 A Preheating , starter, cutoff solenoid
Relay no. Protected circuit
K5 Preheating
K7 Start high-current relay
K8 Time-lag relay
K9 Cutoff solenoid
Fig. 194 : Relay positions
K10K1 K3 K4 K27
K73
Switching
relay no.
Protected circuit
K1 High-current relay
K3 Reverse driving switching relay
K4 Forward driving switching relay
K10 Switching relay – turn indicators
K27 Time lag relay for rear window heating of cabin (option)
K73 Switching relay for operator presence switch (option)
