6.18 Dimensions with pallet forks

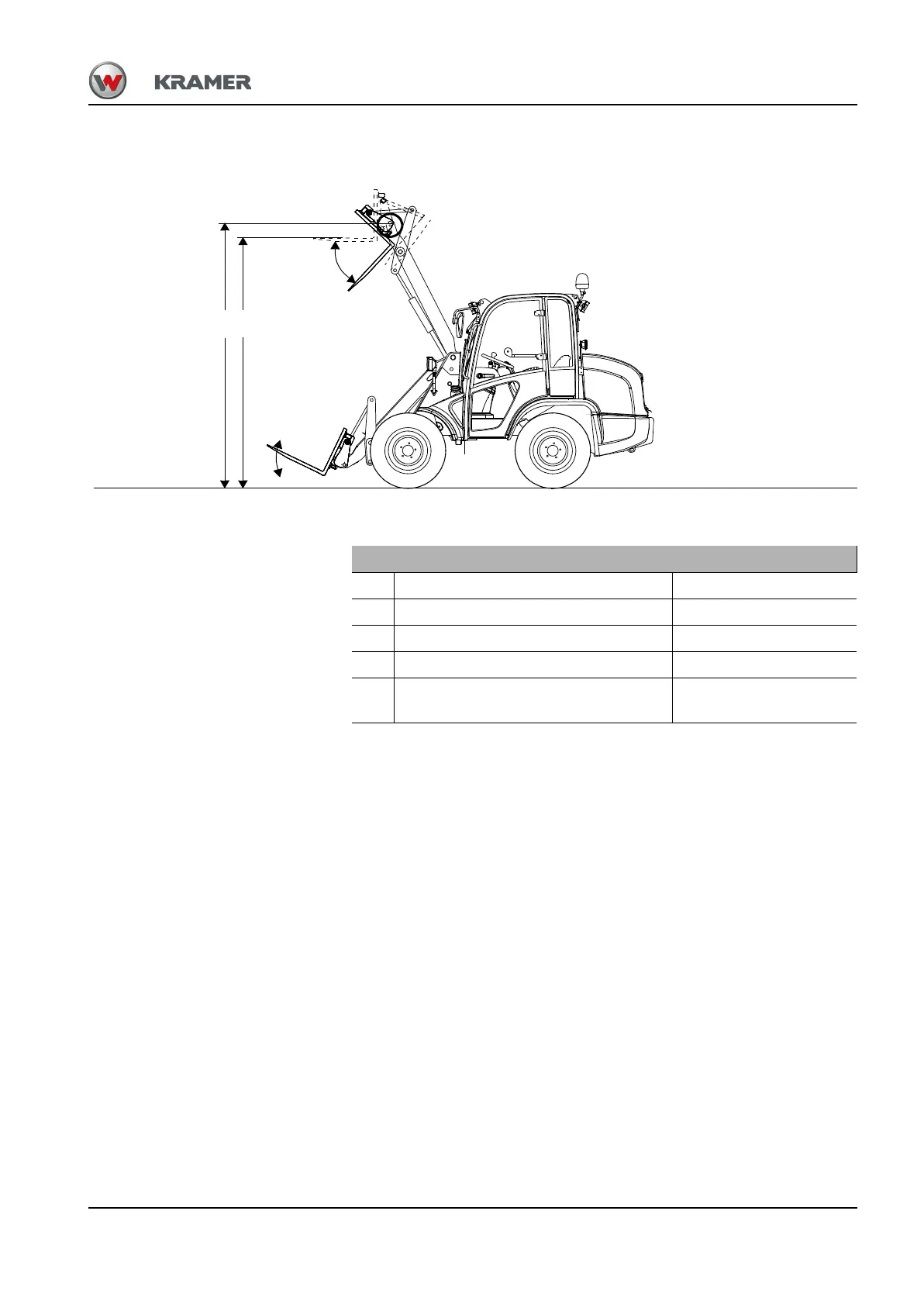

Fig. 196 : Machine dimensions with pallet forks
a b
d
c
Wheel loader model 348-01
a Pin height
1, 2
1. With tyres 27x8.5-15
2. + 10 mm with 28x9.00-15 tyres/+ 30 mm with 315/55 R16 tyres /
+ 30 mm with 10R 16.5 tyres/+ 40 mm with 10-16.5 S-K02 tyres
2790 mm
b Pallet height
1, 2
2680 mm
c Tilt-in angle in transport position 17 °
d Tilt-out angle 75°
–
Turning radius with pallet forks
3
(horizontal fork arms in transport position)
3. With pallet forks order no. 1000101816 (800 mm)
2950 mm
