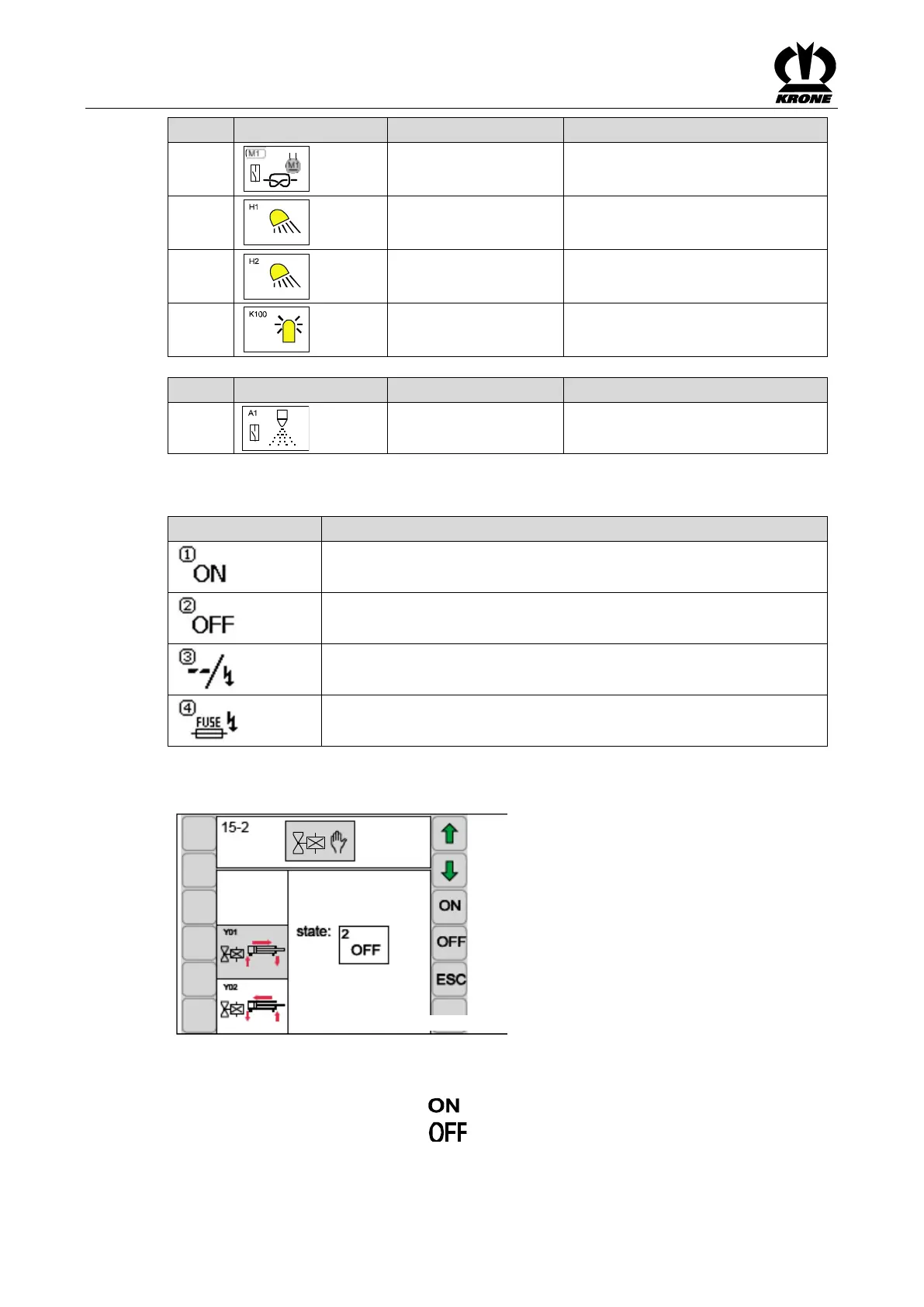

Terminal – Menus [Medium/Comfort Version Electronics]
232
Pos: 103.291 /BA/I nfo-Center/CC I-ISOBUS-Ter minal/CCI-BiG Pack/Haupt menüs/Hauptme nü 4 Service/A uflistung der möglichen digital en Aktoren zusätzl ich für HS BAurei he @ 374\mod_1442 479538782_78. docx @ 27205 62 @ @ 1
No.
Actuator
Designation
Explanation
M1
Knotter triggering
Digital actuator
Error detection is not possible.
H1
Working lights
Digital actuator in the area of the
knotter table
H2
Working lights
Digital actuator in the area of the
pick-up
K100
Warning beacon
Digital actuator
Pos: 103.292 /BA/I nfo-Center/CC I-ISOBUS-Ter minal/CCI-BiG Pack/Haupt menüs/Hauptme nü 4 Service/A uflistung der möglichen digital en Aktoren zusätzl ich A1 Siliermi ttelanlge @ 366\mod_ 14412691658 63_78.docx @ 269 4323 @ @ 1
No.
Actuator
Designation
Explanation
A1
Silage additive system
Digital actuator
Pos: 103.293 /BA/I nfo-Center/ Sensoren/Stat usanzeigen/Statu sanzeige digi taler Aktoren (1,2, 3,4)_BiG Pac k @ 374\mo d_14424805408 57_78.docx @ 2 720593 @ @ 1
Status of actuators
Symbol
Status
Actuator ON
Actuator OFF
General actuator error
No supply voltage
Possible cause: Fuse defective.
Pos: 103.294 /BA/I nfo-Center/CC I-ISOBUS-Ter minal/CCI-BiG Pack/Haupt menüs/Hauptme nü 4 Service/Diag nose digitale A ktoren_BiG P ack @ 374\m od_1442482755 514_78.docx @ 2720878 @ @ 1
Diagnostics of digital actuators
15-2
CC000046_1
Fig.
141
Errors are only displayed when the actuator is switched on and a test is possible for the
actuator. The LED on the plug can also be checked directly on the actuator.
• To switch on the actuator, press .
• To switch off the actuator, press .
