Krone Big Pack 1270

To Next Page

To Previous Page

Terminal – Menus [Medium/Comfort Version Electronics]

233

Pos: 103.296 /BA/I nfo-Center/CC I-ISOBUS-Ter minal/CCI-BiG Pack/Haupt menüs/Hauptme nü 4 Service/Diagn ose analog e Aktoren_HS Baureihe @ 37 4\mod_14424 83850121_78.d ocx @ 2721121 @ @ 1

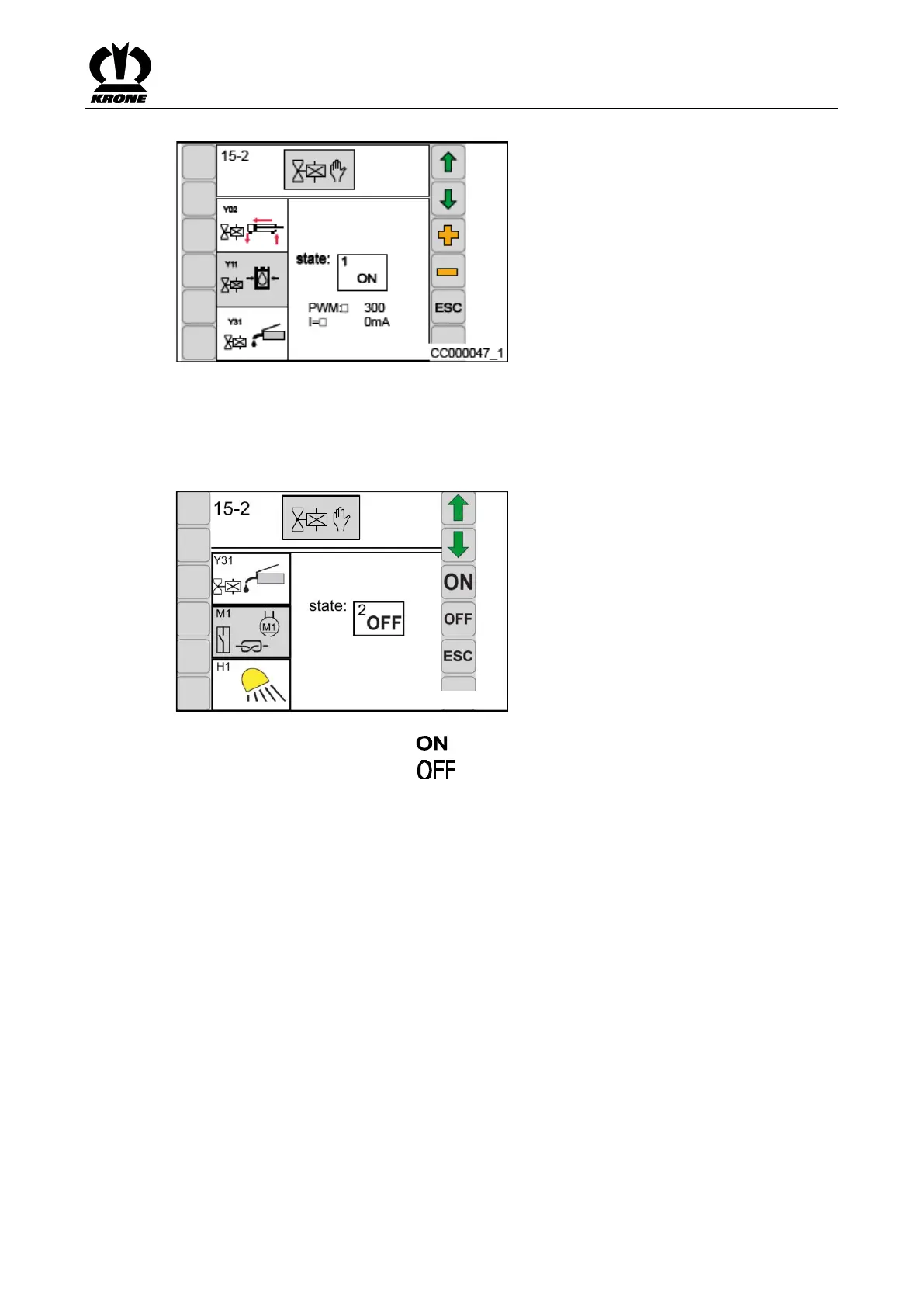

Diagnostics of analogue actuators

15-2

PWM: 300

I= 0mA

CC000047_1

Fig.

142

A current (in mA) can be set with the PWM value (in parts per thousand).

With a value of PWM = 500, the current should be between 500 mA and 3000 mA (depending

on the valve that is used and the operating temperature).

Pos: 103.297 /BA/I nfo-Center/CC I-ISOBUS-Ter minal/CCI-BiG Pack/Haupt menüs/Hauptme nü 4 Service/Me nü 15-2 "Aktort est" Motoren_ BiG Pack @ 37 4\mod_14424 84618716_78.d ocx @ 272127 5 @ @ 1

Engines

CC000952

Fig.

143

• To execute the function, press .
