22.4 Pick-up gearbox
Pos: 140.33 /Übers chriften/Zwisc henüberschrift en/A-EBei Aus führung ohne Sc hneidwerk @ 157\mod_13 64379318831_7 8.docx @ 13 87595 @ @ 1
Design without cutting system
Pos: 140.34 /BA /Wartung/Öl kontrolle_Wechsel/ Großpac kenpresse/Pick-up G etriebe Anbri ngungsort @ 2 4\mod_12415 89606081_78.doc x @ 246295 @ @ 1

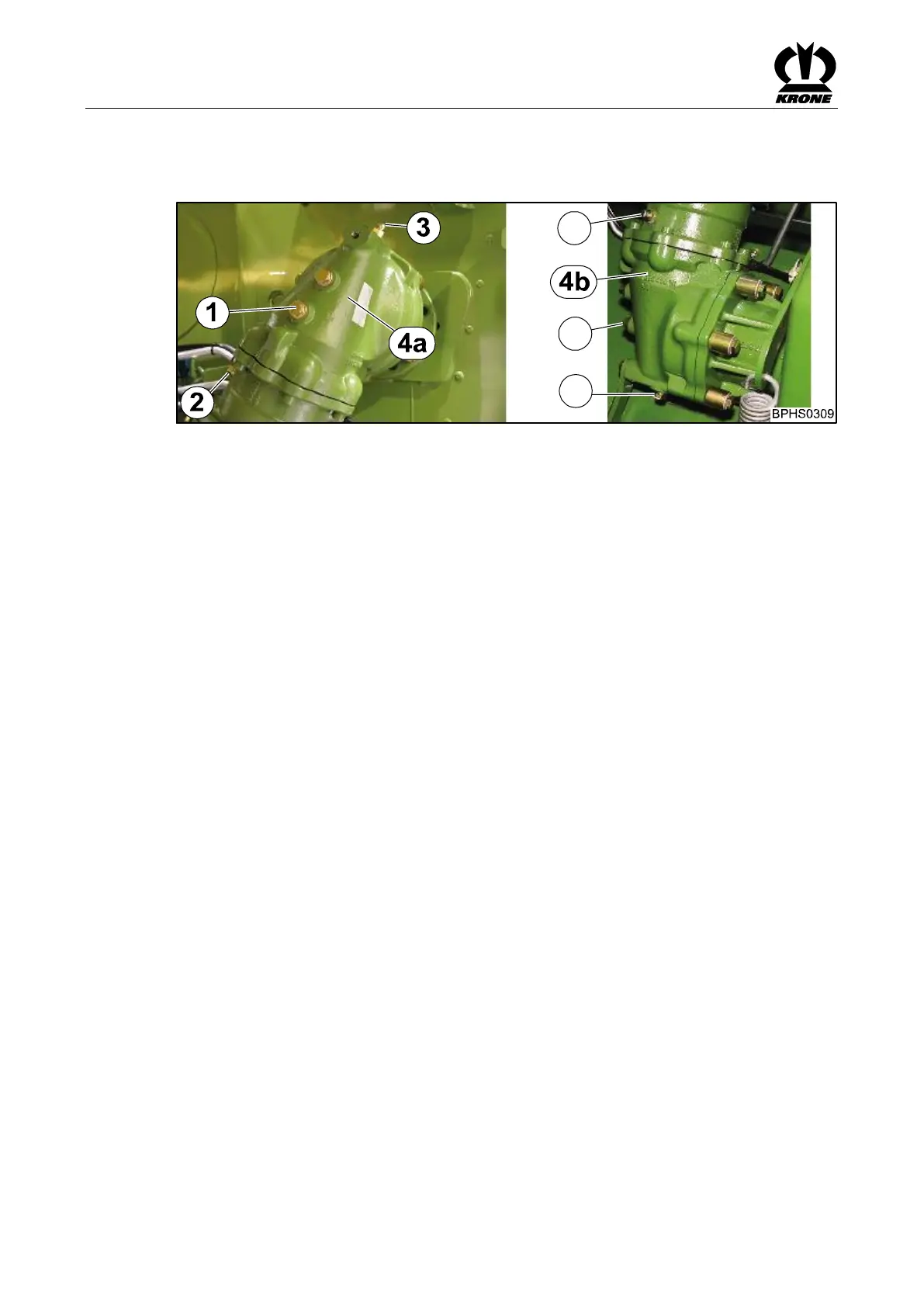

The upper (4a) and lower (4b) Pick-up gearboxes are located on the right side of the machine.
Pos: 140.35 /BA /Wartung/Öl kontrolle_Wechsel/ Großpackenpress e/Pick-up-Getri ebe oben/unten Bil d mitLegende 4x4 / 1290 HDPI I @ 302\m od_141404712526 6_78.docx @ 2355557 @ @ 1
1
2
3
Fig.
252
1)
Inspection screw / inspection hole
2)
Drain plug
3)
Filler plug / filling hole
4a)
Pick-up gearbox top
4b)
Pick-up gearbox bottom
Pos: 140.36 /BA /Wartung/Öl kontrolle_Wechsel/ Ölkontrolle / Öl wechsel Int ervall: siehe Ka pitel Wartung „W artungstabelle“ @ 134\mod_1 350483605921_ 78.docx @ 1 188115 @ @ 1
Interval for oil level check and oil change: refer to chapter Maintenance “Maintenance Table”
Pos: 140.37 /BA /Wartung/Öl kontrolle_WechselÖlq ualität/Öl menge: siehe Kapit el Technisch e Daten der M aschine @ 371\ mod_14419 58324612_78.d ocx @ 2710777 @ @ 1
Oil quality/amount of oil: refer to chapter entitled Technical Data of Machine “Operating
Materials”
Pos: 140.38 /BA /Wartung/Öl kontrolle_Wechsel/ Altölentsorgung: siehe Kapit el Sicherheit „Betri ebsstoffe“ @ 28 0\mod_14 05428392269 _78.docx @ 21527 65 @ @ 1
Used oil disposal: see chapter Safety "Consumables"
Pos: 140.39 /BA /Sicherheit/8. Vor aussetzungen/H andlungsanweis ung für alle Maschinen/H andlungsanweis ung: Maschi ne stillsetzen und sic hern @ 27 4\mod_14043 65253849_78.d ocx @ 2065151 @ @ 1
• Shut down and safeguard the machine, see chapter Safety -> Safety routines, "Shutting
down and safeguarding the machine".
Pos: 140.40 /BA /Wartung/Öl kontrolle_Wechsel/ Ölkontrolle NEU über Kontrollschr aube @ 14 0\mod_13551 41753680_78. docx @ 12445 82 @ @ 1
Oil level check:
• Screw out inspection screw.
• Oil level up to control hole.
If the oil reaches the control hole:
• Screw in the inspection screw and tighten it securely.
If the oil does not reach the control hole:
• Screw out filler plug.
• Top up oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 140.41 /BA /Wartung/Öl kontrolle_Wechsel/ Ölwechsel NEU @ 140\ mod_1355142057 277_78.doc x @ 1244610 @ @ 1
Oil change:
Collect escaping oil in a suitable container.
• Screw out oil drain plug and drain the oil.
• Screw out inspection screw and filler plug.
• Screw in oil drain plug and tighten it securely.
• Top up new oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
