V - 14
Basic Settings and Operation
KR-1-007
3
1
2

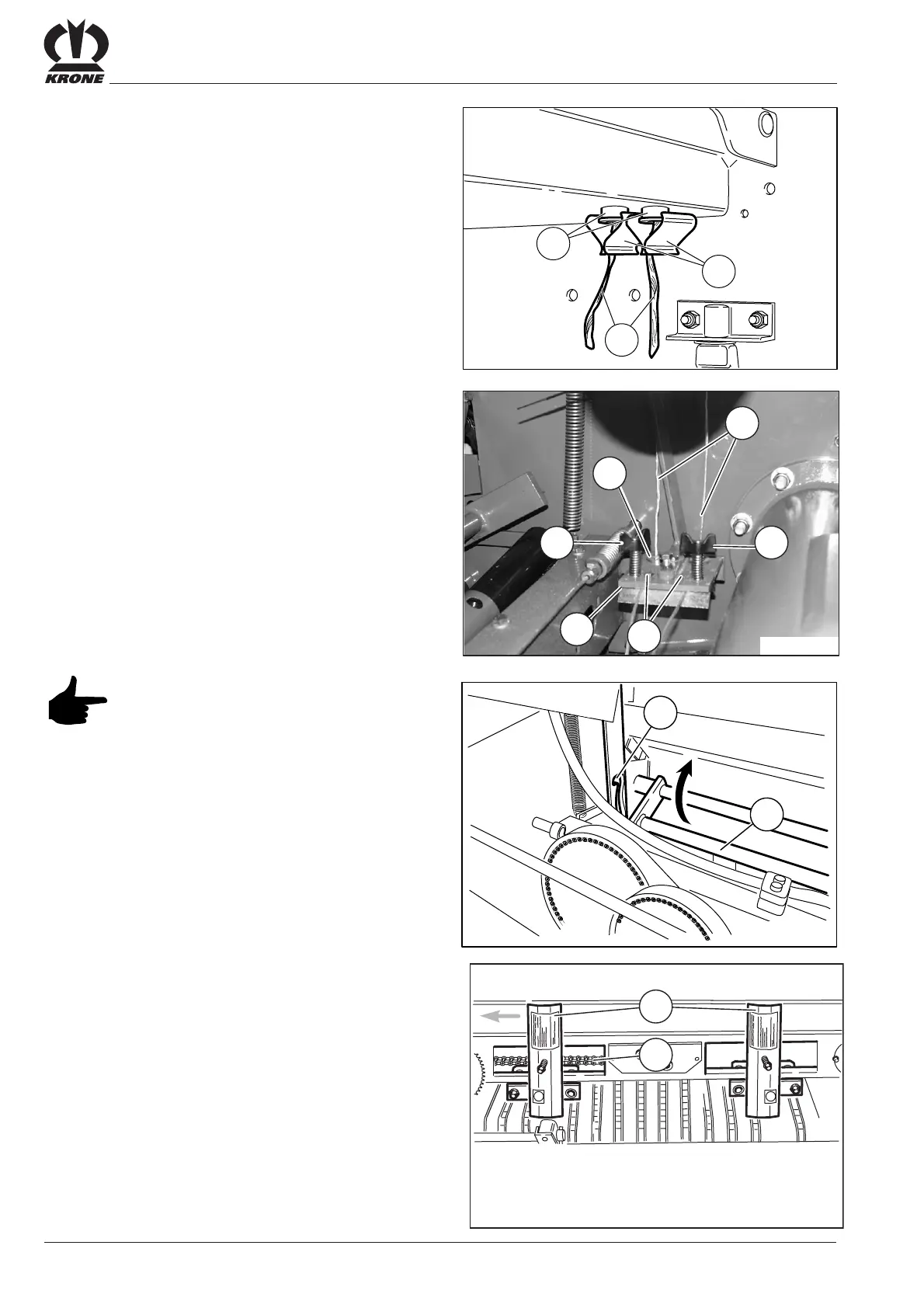

• Thread the twine from the eyelets (1) through the
twine retainers (2).
• Thread the twine (1) through the twine brake (4)
eyelets (3).
• Thread the twine through the space between the
spring tensioners (2) and the screws (5).
For twine wrapping, the net stretcher bar (2)
- if a net wrap system is installed - is rotated
into the upper position.
The connecting link inside the guide rod (1) holds the net
stretcher bar (2) in position.
• Open the twine cleaning flaps (1).
• Rotate the twine manually at the stepped roller in the
working direction (see arrow).
• Remove dirt in area (2).
RBV04040
2
1
CP400001
4
1
3
2
2
5
2
1
CP400002
