15 LIGHTING SYSTEM, INSTRUMENTS 98

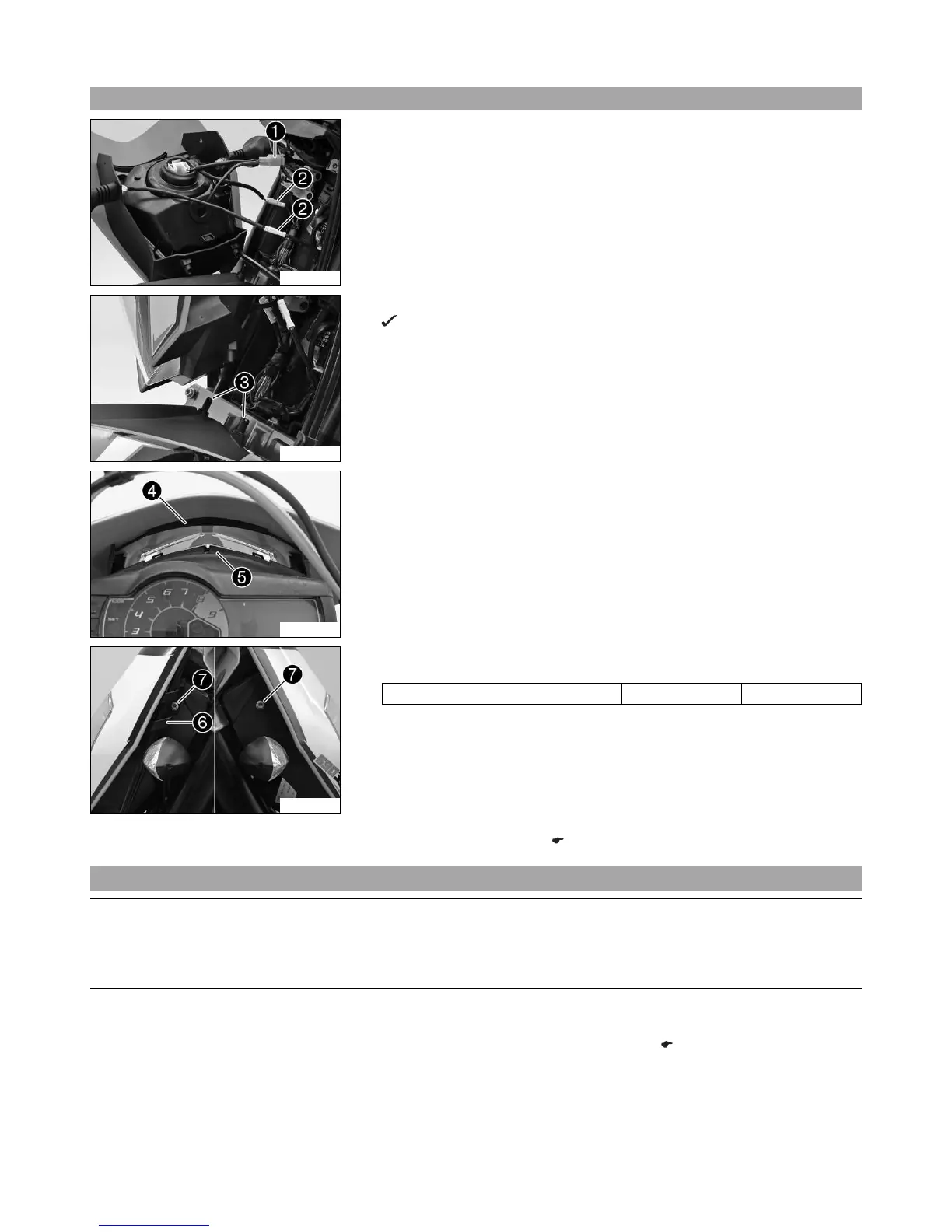

15.5 Installing the headlight mask with the headlight
601910-11
Main work
– Connect the connectors of headlight 1 and turn signal lights 2.
– Check lighting function.
601911-10
– Remove the cloth from the fender and position the headlight mask.
Holding lugs 3 reach into the headlight mask.
601912-10
– Position groove 4 on counterpiece 5.
601909-11
– Position brake line guide 6. Mount and tighten screws 7.
Guideline
Screw, headlight mask M5 5 Nm (3.7 lbf ft)
Finishing work
– Check the headlight setting. ( p. 97)
15.6 Changing the parking light bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 97)
