16 ENGINE 160

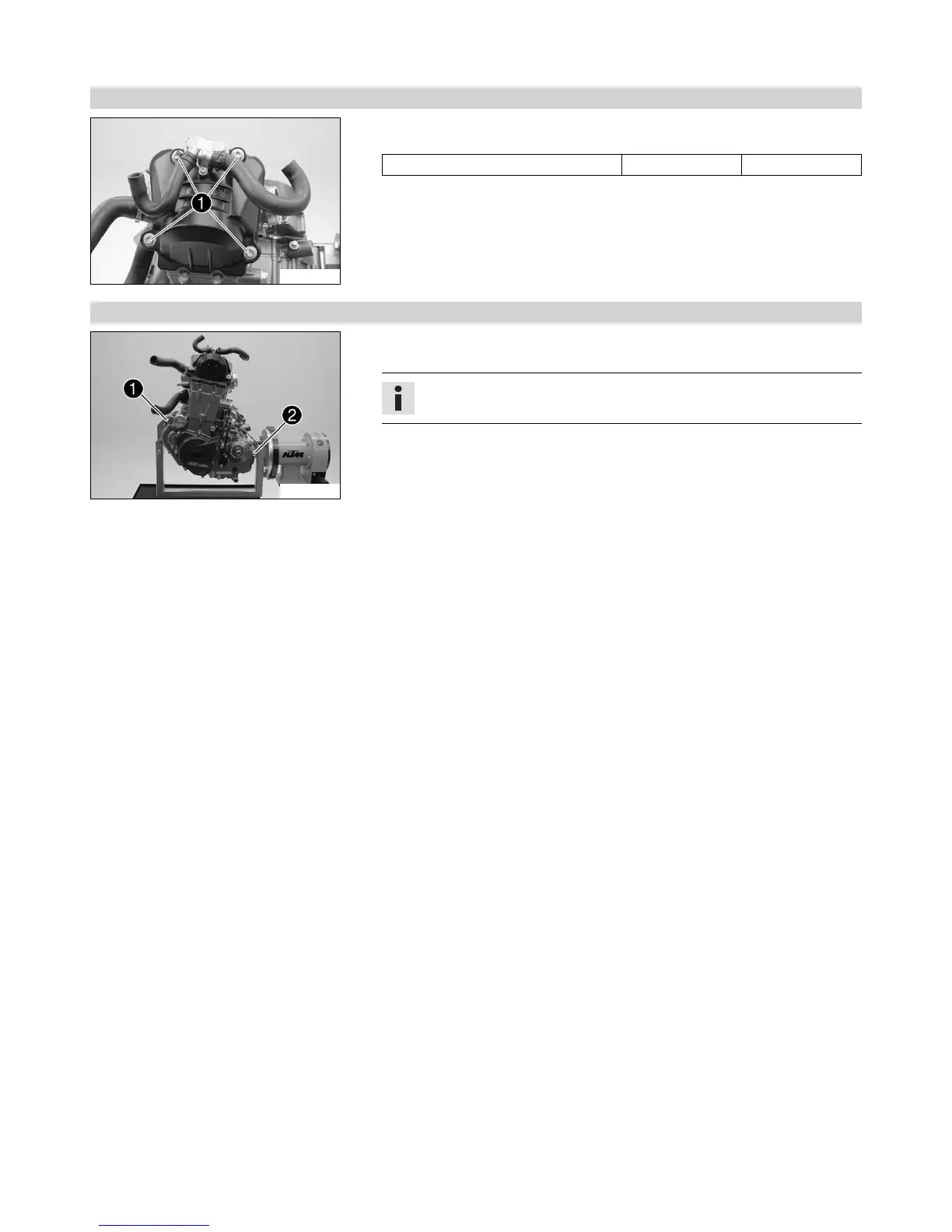

16.5.34 Installing valve cover

300003-10

– Put the valve cover in place with the seal. Mount and tighten screws 1.

Guideline

Screw, valve cover M6 10 Nm (7.4 lbf ft)

16.5.35 Removing the engine from the engine assembly stand

300144-11

– Remove the screw 1 or the nut 2.

– Remove the engine from the engine assembly stand.

Info

Have an assistant help you or use a crane.
