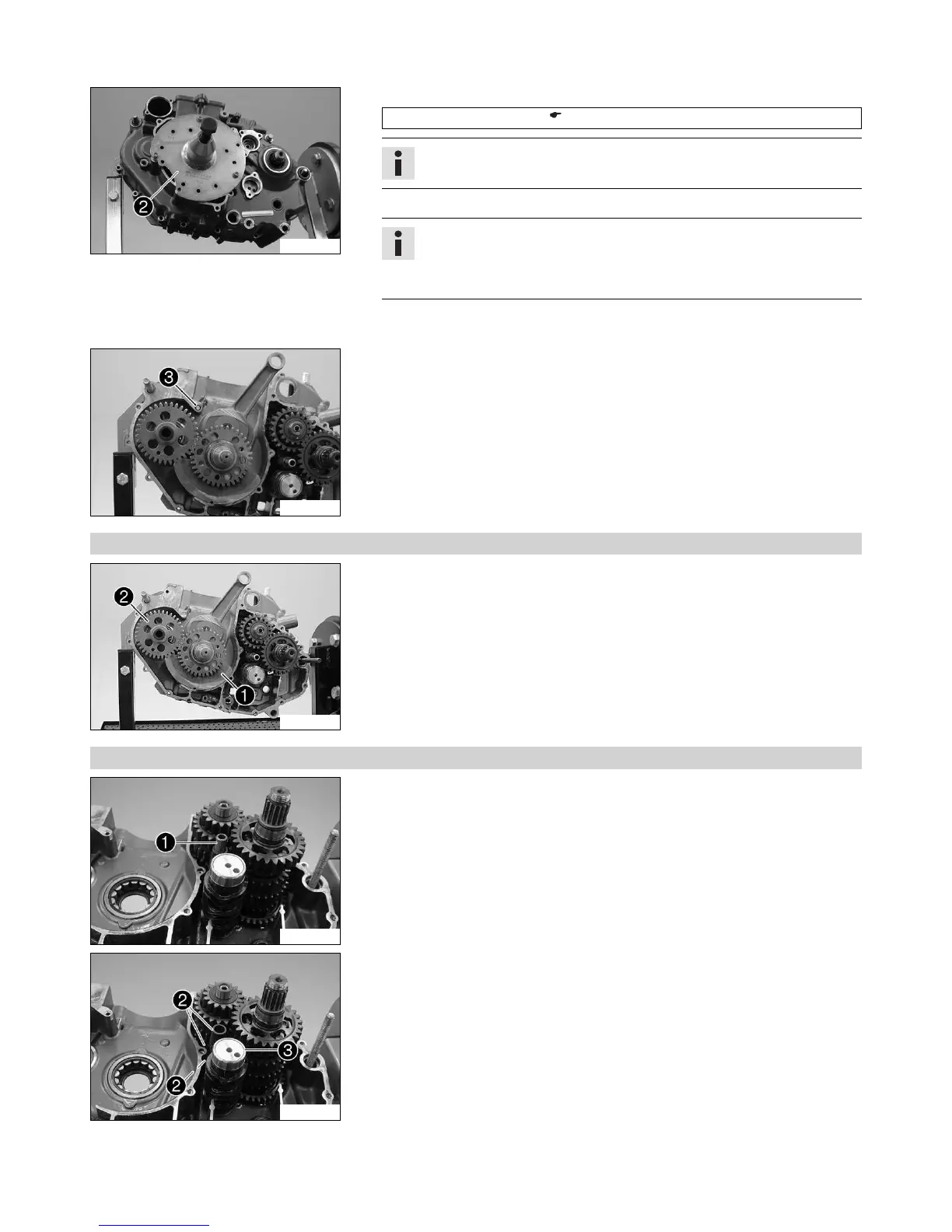

16 ENGINE 117
300076-10
– Install the special tool 2 with suitable screws.
Extractor (75029048000) ( p. 217)
Info
Use the 750 drill hole.
– Pull off the section of the engine case.
Info
Do not tension the section of the engine case.
The balancer shaft and the main shaft have a stop disk, these usually stick
to the bearing.
– Take off the left section of the engine case.
– Remove the special tool.
302132-10
– Remove dowels.
– Remove O-ring 3.
16.3.31 Removing crankshaft and balancer shaft
302133-10
– Remove the crankshaft 1 and the balancer shaft 2.
16.3.32 Removing transmission shafts
300079-10
– Remove the shift rail 1.
300080-10
– Swing shift forks 2 to one side.
– Remove shift drum 3.
