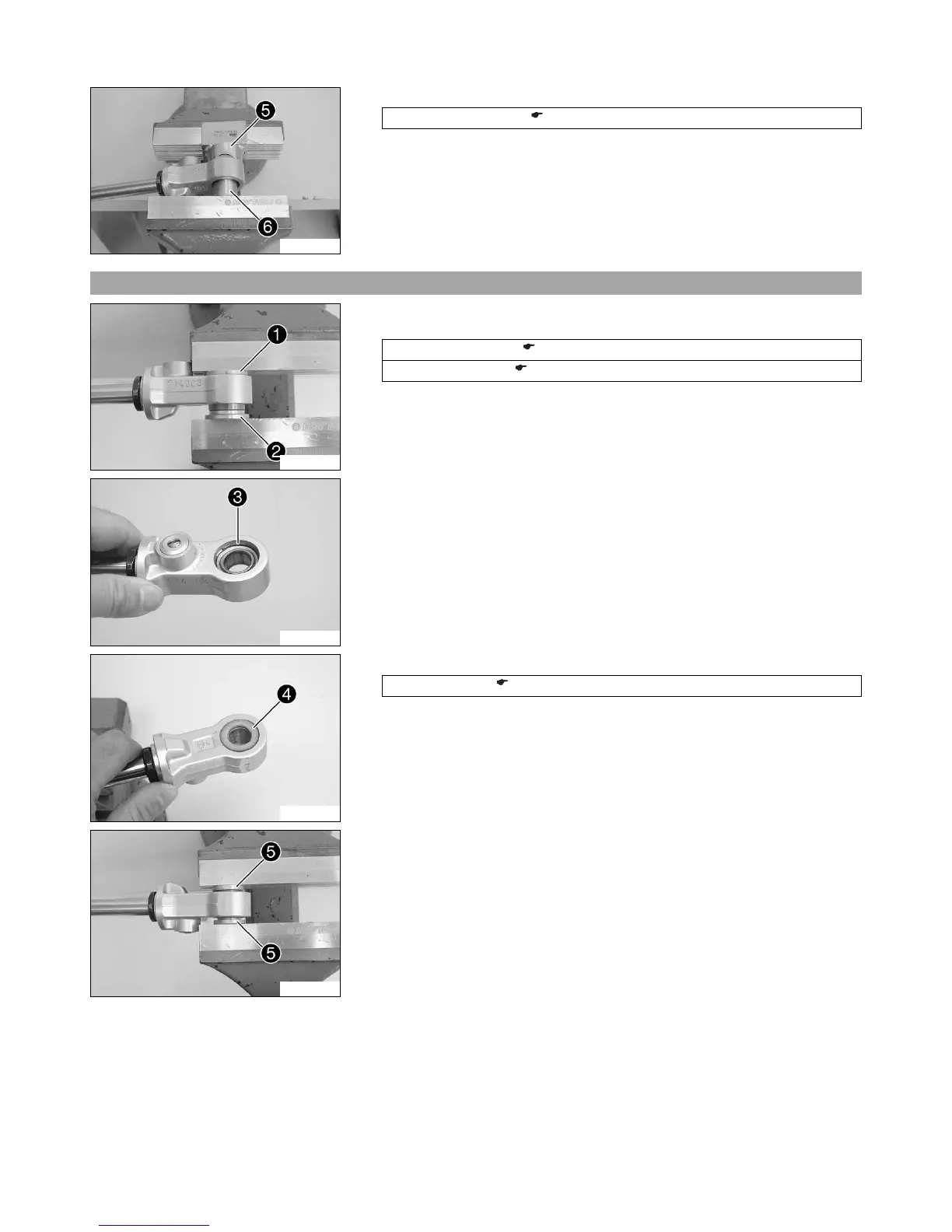

8 SHOCK ABSORBER, SWINGARM 43
200580-10
– Place special tool 5 underneath and press out the heim joint with special tool 6.
Pressing tool (T1207S) ( p. 220)
8.17 Installing the heim joint
200581-10
– Place special tool 1 underneath and press in the heim joint as far as the center
using special tool 2.
Pressing tool (T1206) ( p. 220)
Pressing tool (T129) ( p. 220)
200579-11
– Mount lock rings 3 on both sides.
200578-11
– Mount seal rings 4 on both sides and grease them.
Lubricant (T158) ( p. 208)
200582-10
– Press in both collar sleeves 5 of the heim joint.
