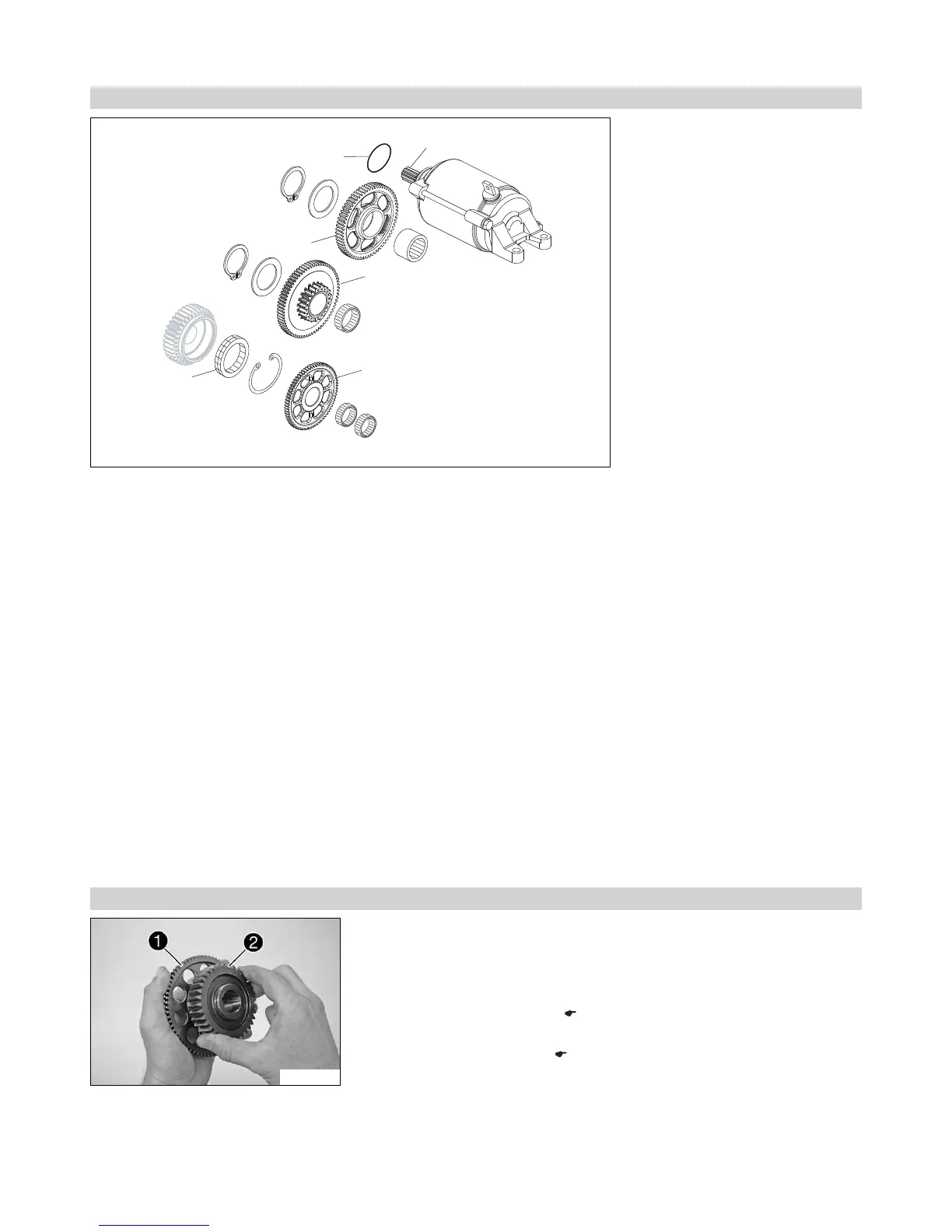

300129-01
– Check the teeth and seating of the starter idler gear 1 for damage and wear.
» If there is damage or wear:
– Replace the starter idler gear and/or needle bushing.
– Check the teeth and seating of the torque limiter 2 for damage and wear.
» If there is damage or wear:
– Replace the torque limiter and/or needle bushing.
– Check freewheel gear 3 and bearing when removed for damage and wear.
» If there is damage or wear:
– Replace the freewheel gear and/or the bearing.
– Check freewheel 4 when removed for damage and wear.
» If there is damage or wear:
– Replace the freewheel.
– Check the toothing of the starter motor 5 for damage and wear.
» If there is damage or wear:
– Replace the starter motor.
– Clamp the minus (negative) cable of a 12 Volt power supply to the starter motor housing. Briefly connect the plus (positive) cable
of the power supply to the starter motor connection.
» If the starter motor does not turn when you close the power circuit:
– Replace the starter motor.
– Replace the O-ring 6 of the starter motor.
16.4.40 Checking freewheel
300131-10
– Insert the freewheel gear 1 in the primary gear 2, turning the primary gear clock-
wise; do not twist!
– Check the locking action of the freewheel gear 1.
» If the primary gear does not turn clockwise or if it does not lock counterclock-
wise:
– Remove the freewheel. ( p. 143)
– Turn the freewheel 180°.
– Install the freewheel. ( p. 143)
