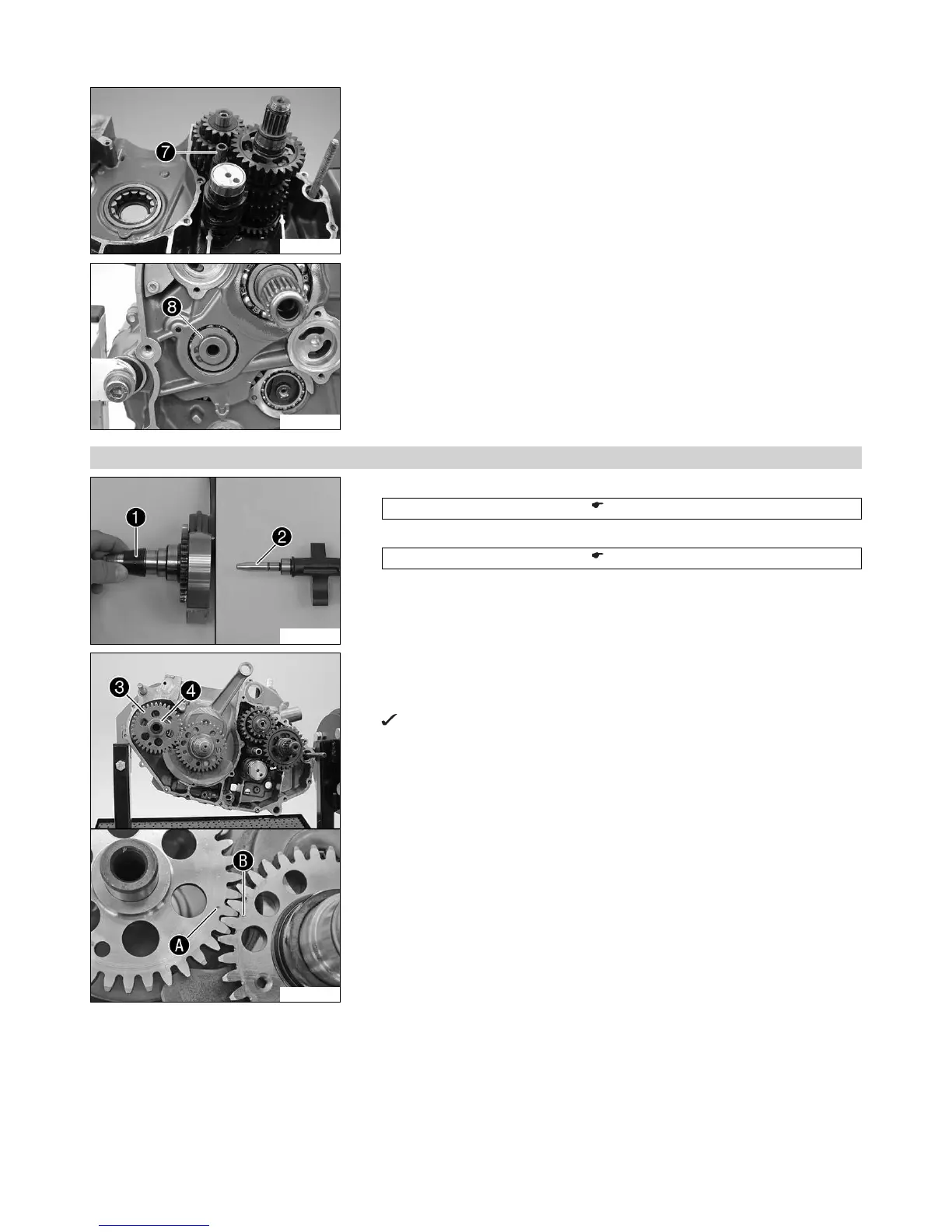

16 ENGINE 145
300079-11
Install the shift rail 7.
Check the transmission for smooth operation.
300082-11
Install the shim 8 and lock ring of the countershaft.
16.5.2 Installing crankshaft and balancer shaft
302136-10
Mount the special tool 1 on the alternator side of the crankshaft.
Mounting sleeve (75029080000) ( p. 217)
Mount the special tool 2 on the balancer shaft.
Mounting sleeve (58529005000) ( p. 211)
302135-10
Push the crankshaft into the bearing seat and take off the special tool.
Grease the shaft seal rings of the balancer shaft.
Push the balancer shaft 3 into the bearing seat and take off the special tool.
Align marks A and B.
Mount stop disk 4.
