14 BRAKE SYSTEM 87
601908-10

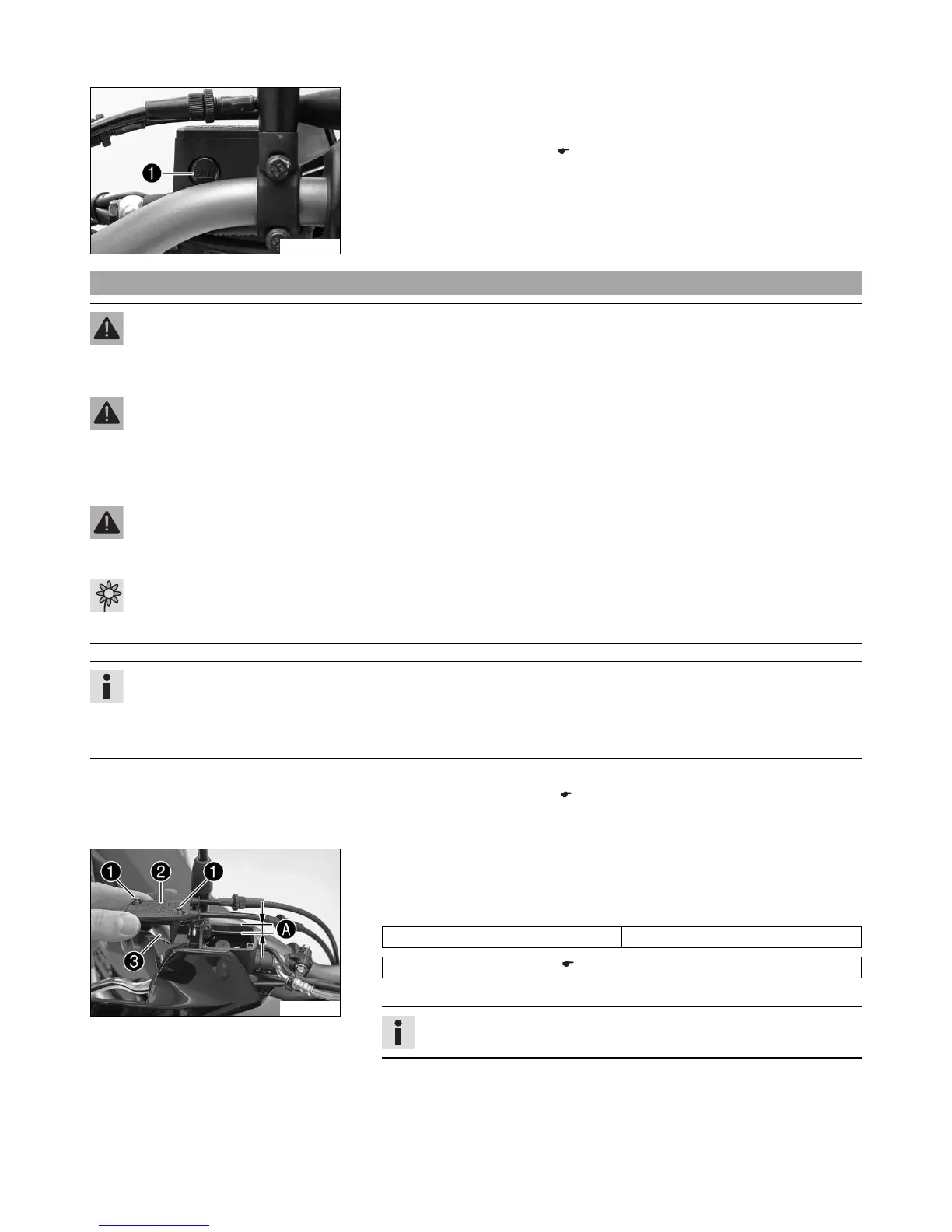

– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
– Check the brake fluid level in the viewer 1.
» When the brake fluid level drops below the MIN mark:
– Add front brake fluid. ( p. 87)
14.5 Adding front brake fluid
Warning
Danger of accidents Failure of the brake system.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Check the brake system and do not continue riding.
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never use DOT 5 brake fluid! It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5
brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint!
Use only clean brake fluid from a sealed container.
Preparatory work
– Check the front brake linings. ( p. 85)
Main work
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
100254-10
– Remove screws 1.
– Remove cover 2 with membrane 3.
– Add brake fluid to level A.
Guideline
Measurement of A 5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 206)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
