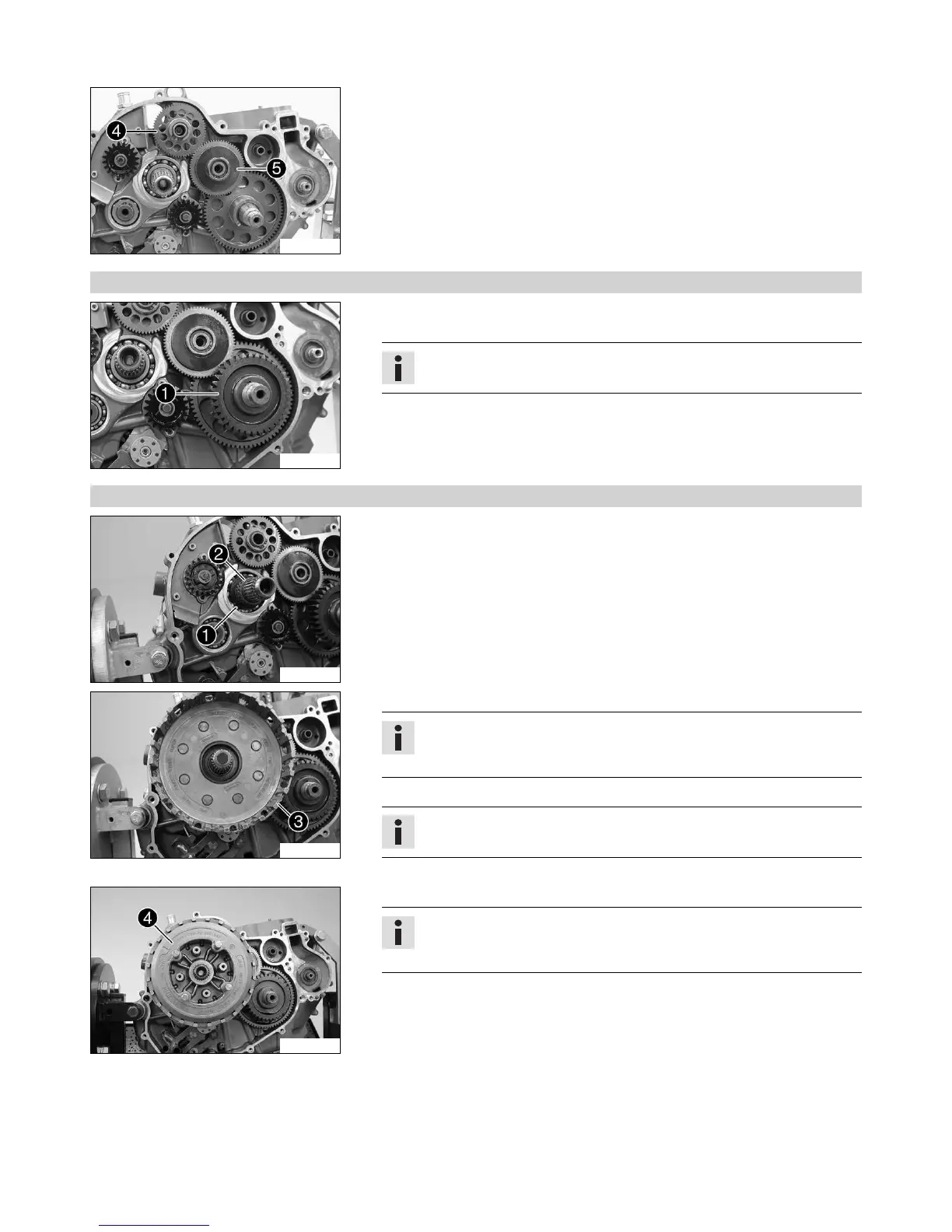

16 ENGINE 148
300064-11
– Push on the starter idler gear 4 with washer. Mount lock ring.
– Push on the needle bearing and torque limiter 5 with washer. Mount lock ring.
16.5.9 Installing primary gear
300063-10
– Ensure that the spring washer is seated properly.
– Mount primary gear 1.
Info
Turn freewheel gear backwards and forwards to ease meshing.
16.5.10 Installing clutch basket
300057-10
– Mount supporting plate 1 and needle bearing 2.
300058-10
– Install the clutch basket 3.
Info
Turn the clutch basket and oil pump gear wheels backwards and forwards
slightly to help them mesh more easily.
– Mount the half washers with the sharp edge facing outward.
Info
Grease the half washers to ease assembly.
– Position stepped washer with the recesses toward the half washers.
302123-10
– Insert the clutch package 4 in the clutch basket.
Info
If necessary, turn the main shaft a little to ease access.
Make sure that the upper clutch facing disc is offset by one notch.
