KTM 2013 690 SMC R EU - Disassembling the Piston Rod

8 SHOCK ABSORBER, SWINGARM 40
201279-10

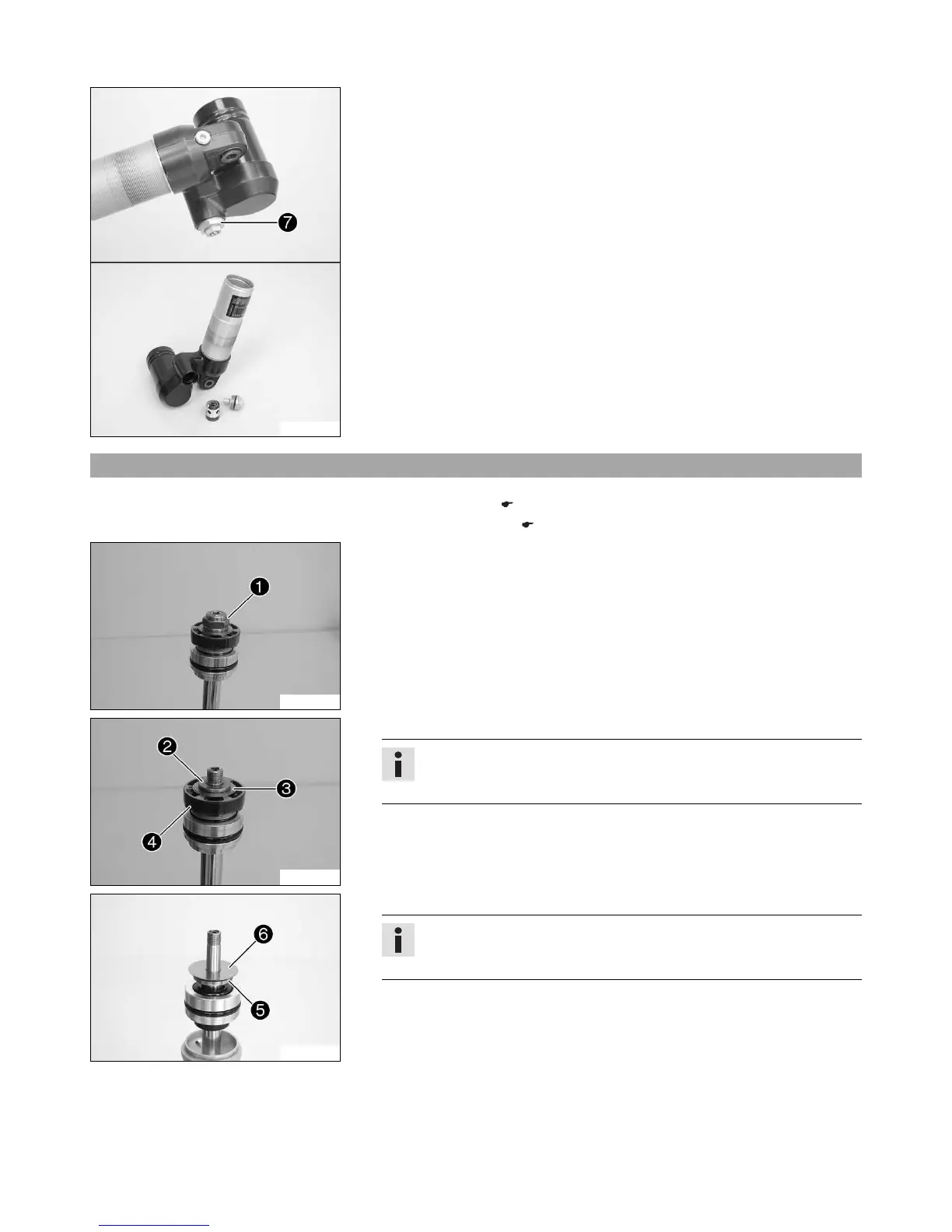

– Remove compression adjuster 7. Remove the spring, sleeve, and piston.
8.14 Disassembling the piston rod
Preparatory work
– Remove the spring. ( p. 38)
– Dismantle the damper. ( p. 39)
300540-10
Main work
– Clamp the piston rod with the heim joint in a vise.
– Remove nut 1.
300541-10
– Remove supporting plate 2 and rebound shim stack 3 together with piston 4.
Info
Thread the rebound shim set on a screwdriver and set the parts down
together.
200572-11
– Remove compression shim stack 6 with supporting plate 5.
Info
Thread the compression shim stack on a screwdriver and set the parts down
together.
