KTM 2013 690 SMC R EU - 5 Motorcycle; Raising the Motorcycle with the Rear Wheel Stand; Taking the Motorcycle off of the Rear Wheel Stand; Raising the Motorcycle with the Front Wheel Stand

5 MOTORCYCLE 10

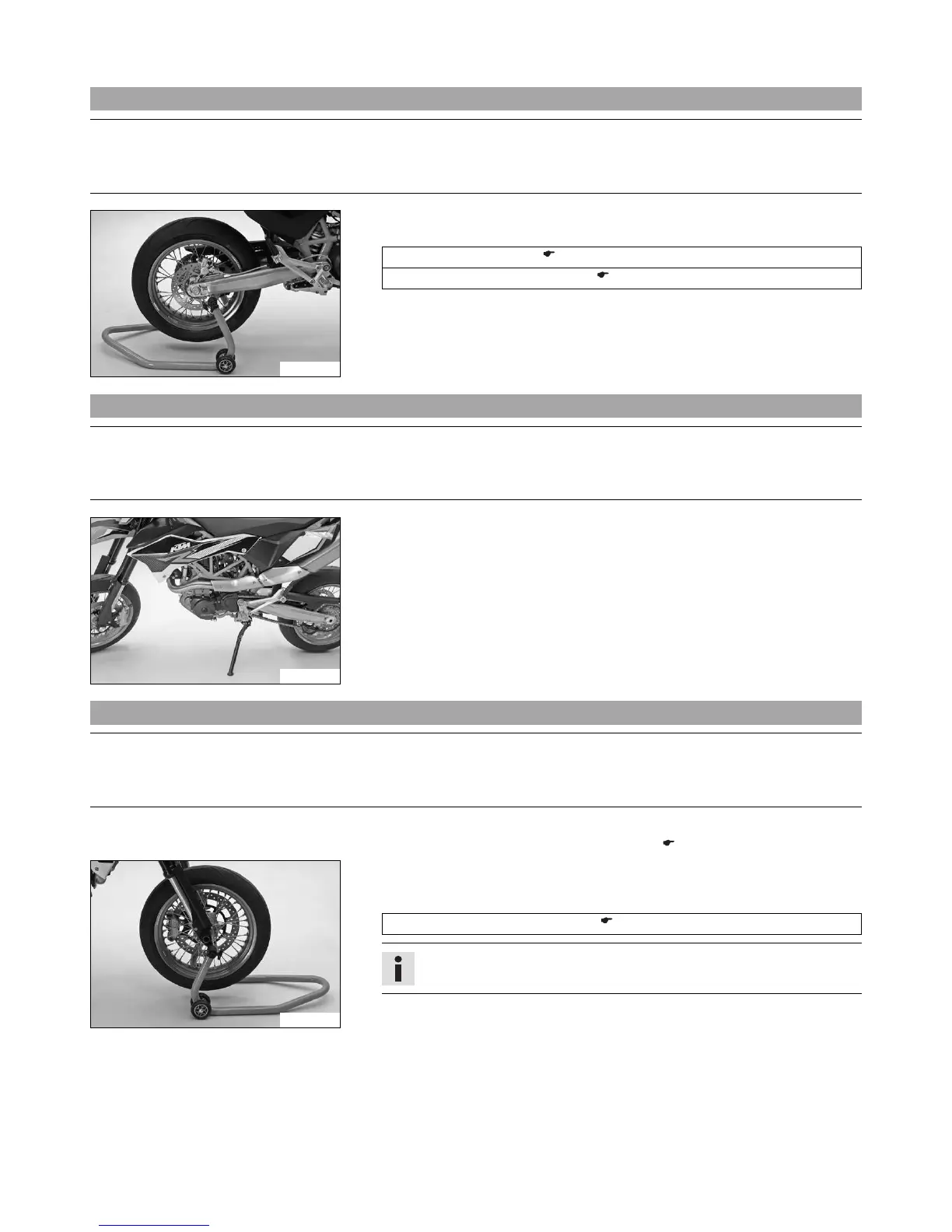

5.1 Raising the motorcycle with the rear wheel stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
601893-01
– Insert the adapter into the rear wheel stand and screw into the swingarm on both
sides.
Adapter (61029055110) ( p. 213)
Rear wheel stand (61029055400) ( p. 213)
– Position the motorcycle upright, align the stand and raise the motorcycle.
5.2 Taking the motorcycle off of the rear wheel stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
601873-11
– Secure the motorcycle against falling over.
– Remove the rear wheel stand and lean the vehicle on the side stand.
5.3 Raising the motorcycle with the front wheel stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 10)
601892-01
Main work
– Move the handlebar to the straight-ahead position. Align the front wheel stand with
the fork legs using the adapters.
Front wheel stand (61029055300) ( p. 213)
Info
Always raise the rear of the motorcycle first.
– Raise the front of the motorcycle.
