KTM 2013 690 SMC R EU - Changing the Engine Oil and Filter, Cleaning the Oil Screens; Draining the Engine Oil

19 LUBRICATION SYSTEM 167
– Change the oil filter. Check oil pumps for wear. Check that all oil holes are
clear.
– Switch off the engine.
Warning
Danger of burns Some vehicle components get very hot when the machine
is driven.
– Wear appropriate protective clothing and safety gloves. In case of burns,
rinse immediately with lukewarm water.
– Remove the special tools.
– Mount and tighten screw 1.
Guideline
Screw, unlocking of timing chain ten-
sioner
M10x1 10 Nm (7.4 lbf ft)
Finishing work
– Check the engine oil level. ( p. 165)

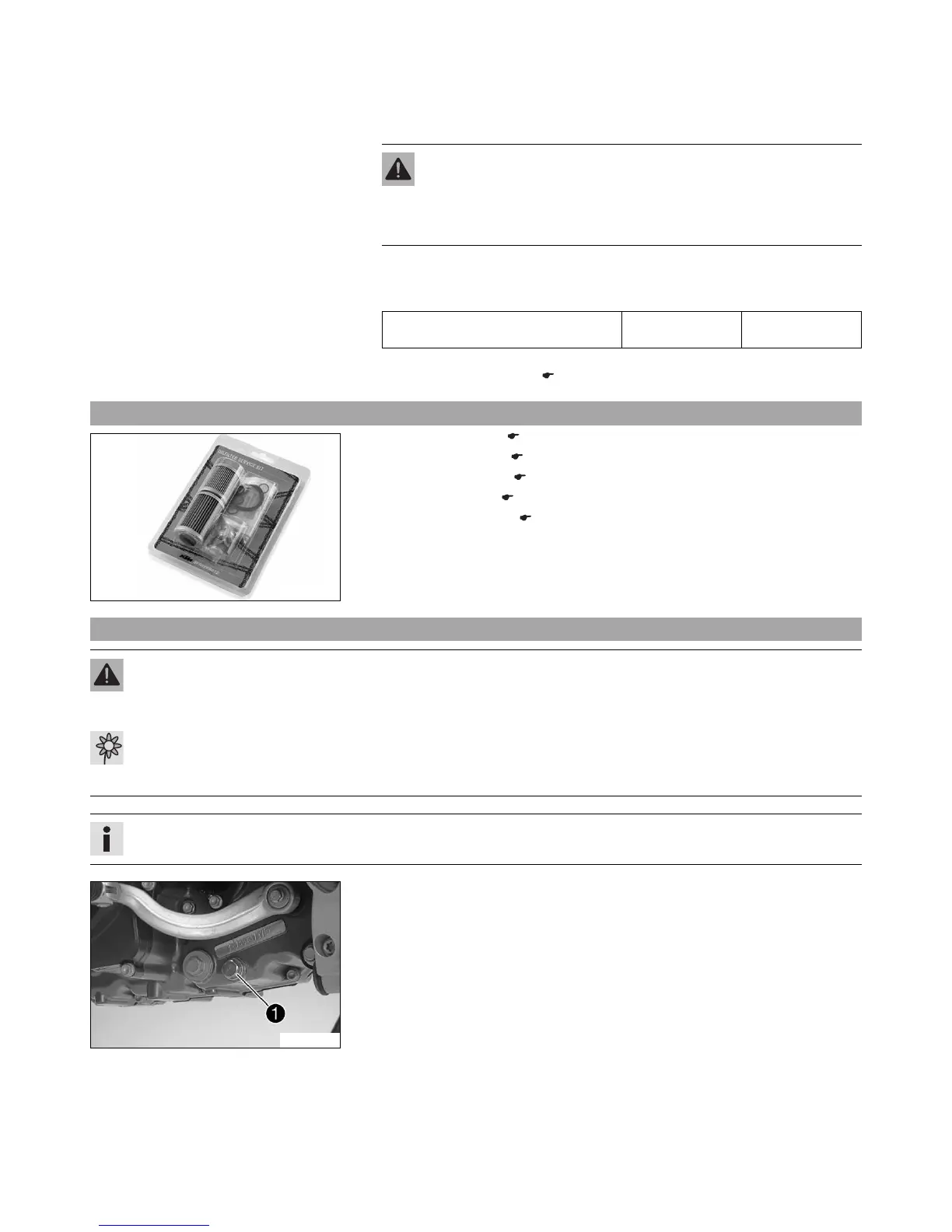

19.4 Changing the engine oil and filter, cleaning the oil screens
601022-10
– Drain the engine oil. ( p. 167)
– Remove the oil filter. ( p. 168)
– Clean the oil screens. ( p. 169)
– Install the oil filter. ( p. 168)
– Fill up with engine oil. ( p. 170)
19.5 Draining the engine oil
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the engine oil only when the engine is warm.
100200-10
– Place a suitable container under the engine.
– Remove the oil drain plug 1 with the magnet and seal ring.
– Completely drain the engine oil.
