16 ENGINE 115

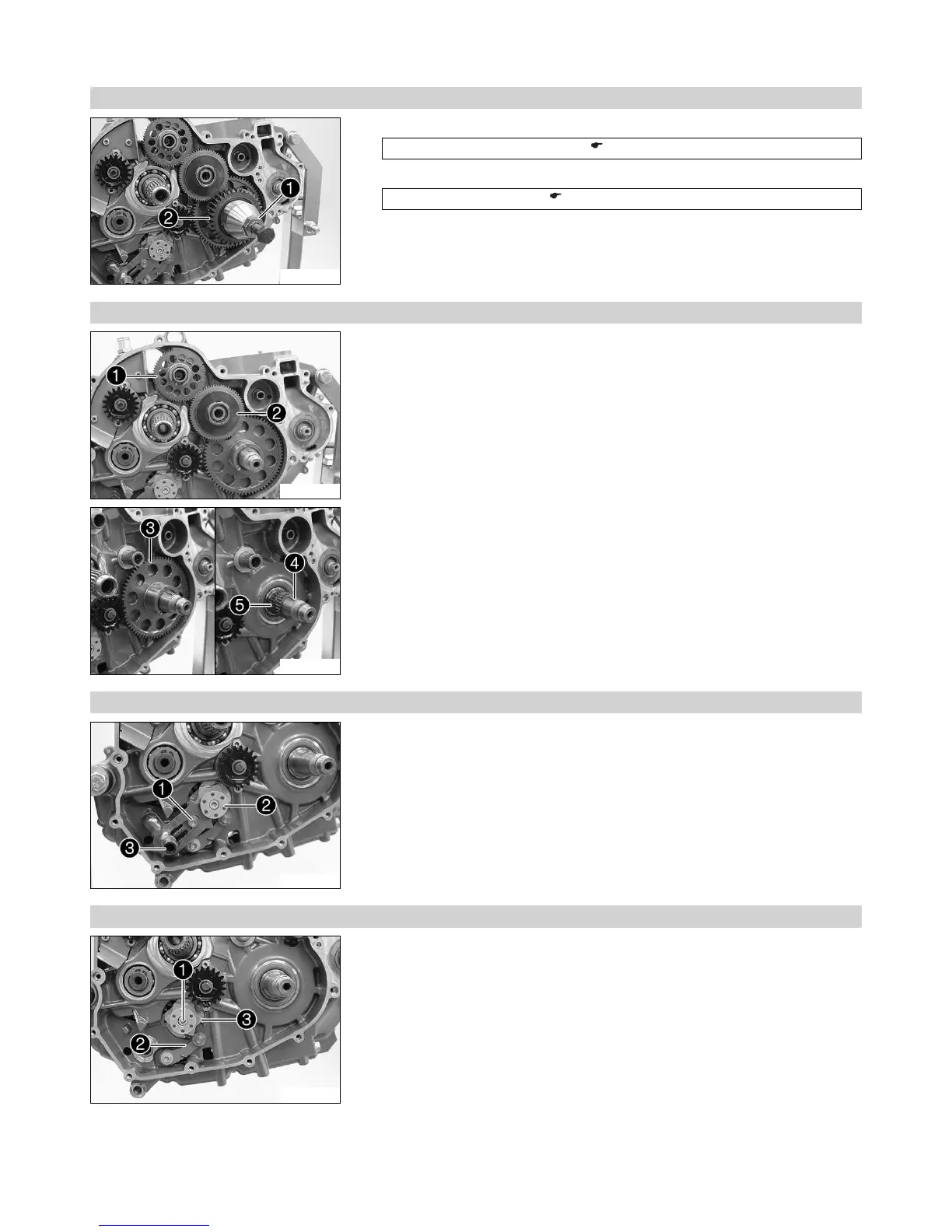

16.3.24 Removing primary gear
300062-10
– Plug the special tool into the crankshaft.
Protection cover (75029090000) ( p. 218)
–
Screw the special tool 1 on to the primary gear 2.
Extractor (75029021000) ( p. 215)
– Hold it using the special tool and pull off the primary gear by turning the screw in.
– Remove the special tools.
16.3.25 Removing starter drive
300064-10
– Remove the lock ring of the starter idler gear 1 and the torque limiter 2.
– Take off the starter idler gear 1 with the washers.
– Remove the torque limiter 2 with the washers and needle bearing.
300065-10
– Take off the free-wheel gear 3.
– Remove the woodruff key 4 and both needle bearings 5.
16.3.26 Removing shift shaft
300066-10
– Push sliding plate 1 away from the shift drum locating 2. Remove shift shaft 3
with the washer.
16.3.27 Removing shift drum locating
300067-10
– Remove screw 1.
– Press locking lever 2 away from shift drum locating 3 and take off the shift drum
locating.
– Release the locking lever.
