KTM 2013 690 SMC R EU - Removing Freewheel; Installing Freewheel

16 ENGINE 143

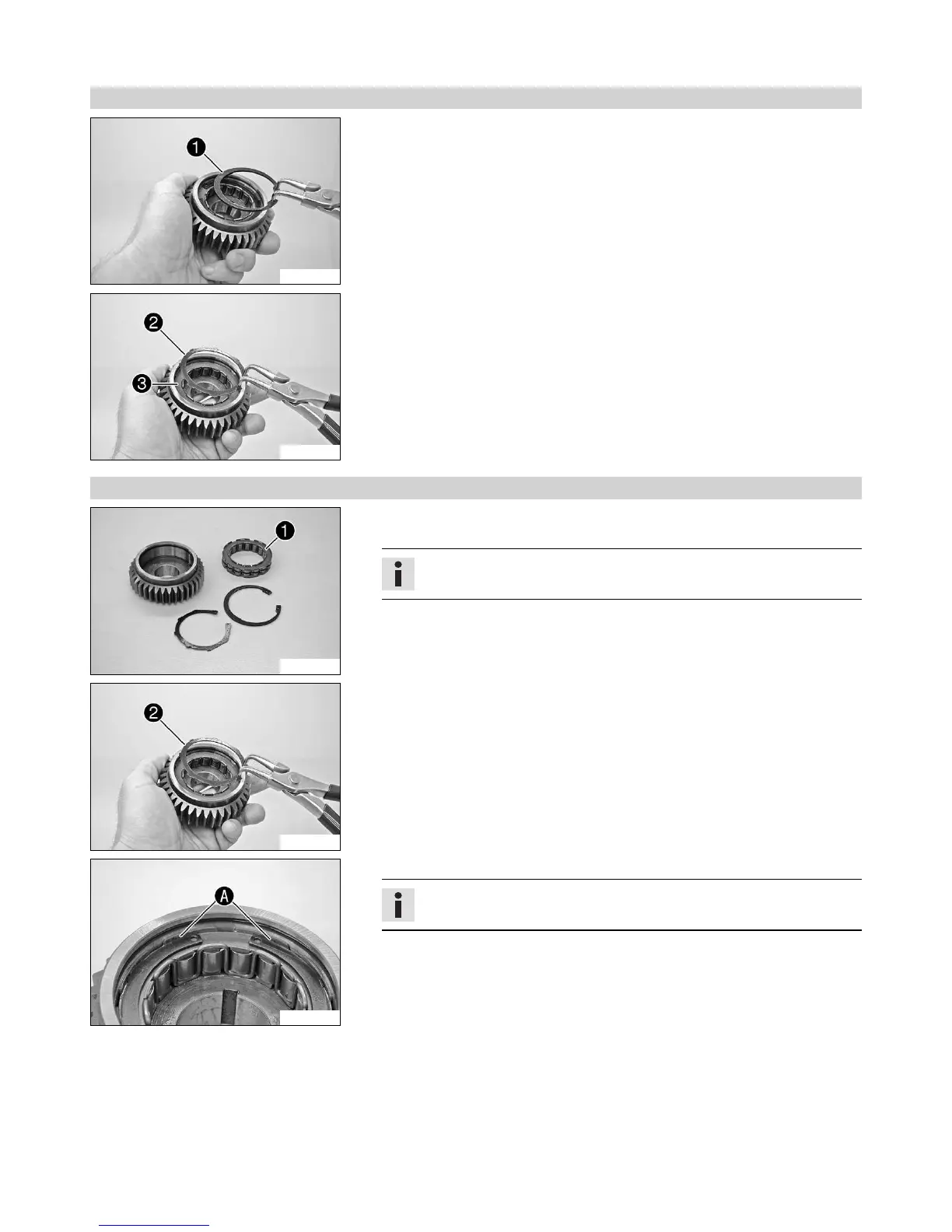

16.4.41 Removing freewheel
300127-10
– Extract the lock ring 1 from the groove using suitable pliers.
300128-10
– Compress the expansion ring 2 and remove it, using suitable pliers.
– Take the freewheel 3 out of the primary gear.
16.4.42 Installing freewheel
300129-10
– Lubricate all parts thoroughly.
– Push the freewheel 1 into the primary gear.
Info
Note the direction of rotation.
300128-11
– Install the expansion ring 2.
300130-10
– Make sure that all lugs of the expansion ring locate in the slits A of the freewheel.
Info
If necessary, use a screwdriver to ease them in.
