6 FORK, TRIPLE CLAMP 19
201240-01
– Disassemble the fork legs. ( p. 19)
– Check the fork legs. ( p. 22)
– Assemble the fork legs. ( p. 23)

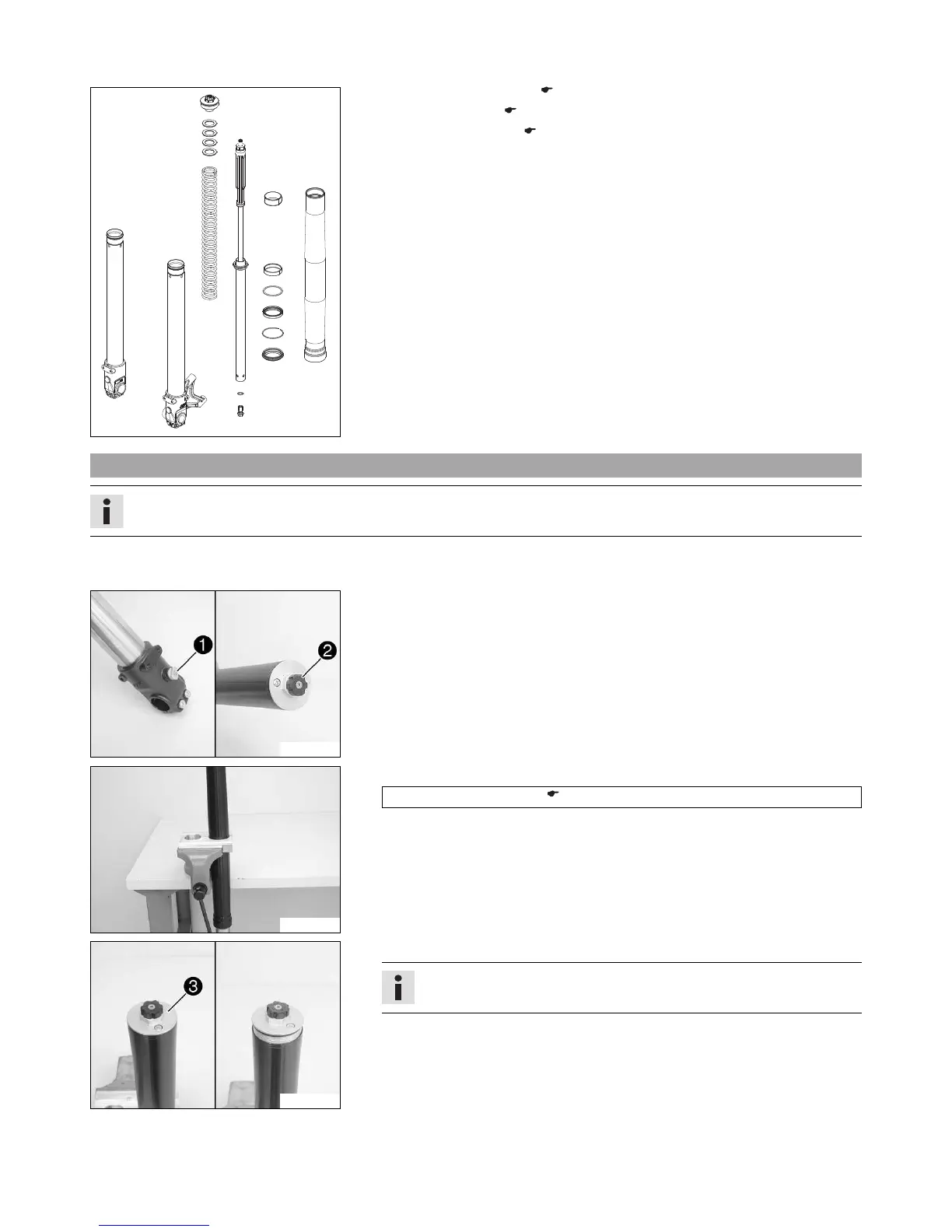

6.10 Disassembling the fork legs
Info
These operations are the same on both fork legs.
Condition
The fork legs have been removed.
200660-01
– Establish and note the current state of the rebound damping 1 and compression
damping 2.
– Completely open the adjusters of the rebound and compression damping.
200643-10
– Clamp the fork leg in the area of the lower triple clamp.
Clamping stand (T1403S) ( p. 221)
200644-12
– Loosen screw cover 3.
Info
The screw cover cannot be removed yet.
