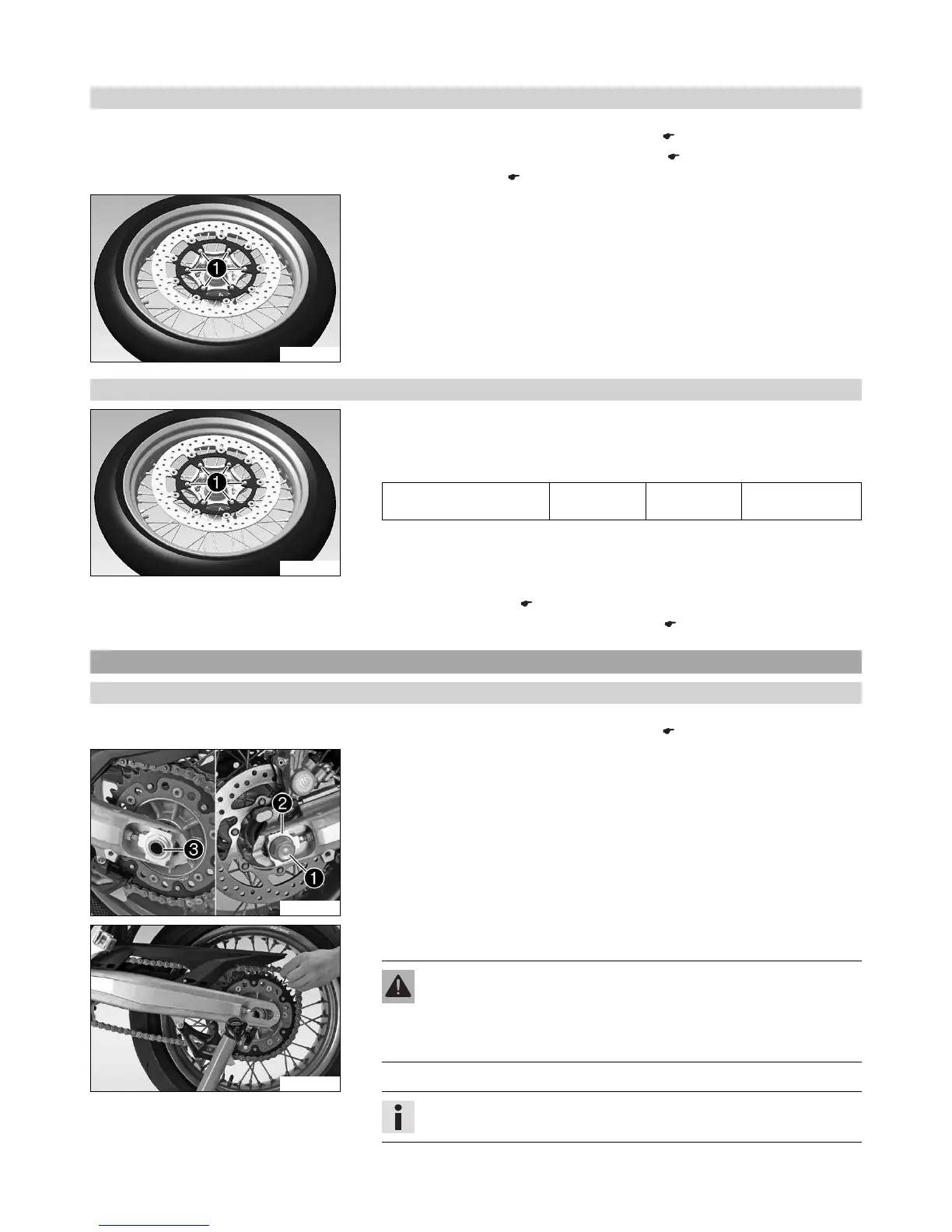

12 WHEELS 72
12.6.3 Removing the brake disc of the front brake
Preparatory work
Raise the motorcycle with the rear wheel stand. ( p. 10)
Raise the motorcycle with the front wheel stand. ( p. 10)
Remove front wheel. ( p. 70)
S00122-10
Main work
Remove screws 1. Take off the brake disc.
12.6.4 Installing the brake disc of the front brake
S00122-10
Main work
Clean the contact surface of the brake disc.
Position the brake disc with the label facing outward. Mount and tighten screws 1.
Guideline
Screw, front brake disc M6 14 Nm
(10.3 lbf ft)
Loctite
®
243™
Finishing work
Install the front wheel. ( p. 71)
Take the motorcycle off of the rear wheel stand. ( p. 10)
12.7 Rear wheel
12.7.1 Removing rear wheel
Preparatory work
Raise the motorcycle with the rear wheel stand. ( p. 10)
601913-10
Main work
Press the brake caliper by hand on to the brake disc in order to press back the
brake piston.
Remove nut 1. Remove chain adjuster 2.
Holding the rear wheel, withdraw the wheel spindle 3.
601903-01
Push the rear wheel forwards as far as possible and take the chain off the rear
sprocket.
Warning
Danger of accidentsReduced braking effect caused by damaged brake
discs.
Always lay the wheel down in such a way that the brake discs are not
damaged.
Take the rear wheel out of the swing arm.
Info
Do not operate the foot brake when the rear wheel is removed.
