15.8 Changing the turn signal bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
100160-10
Main work
– Remove the screw on the rear of the turn signal housing.

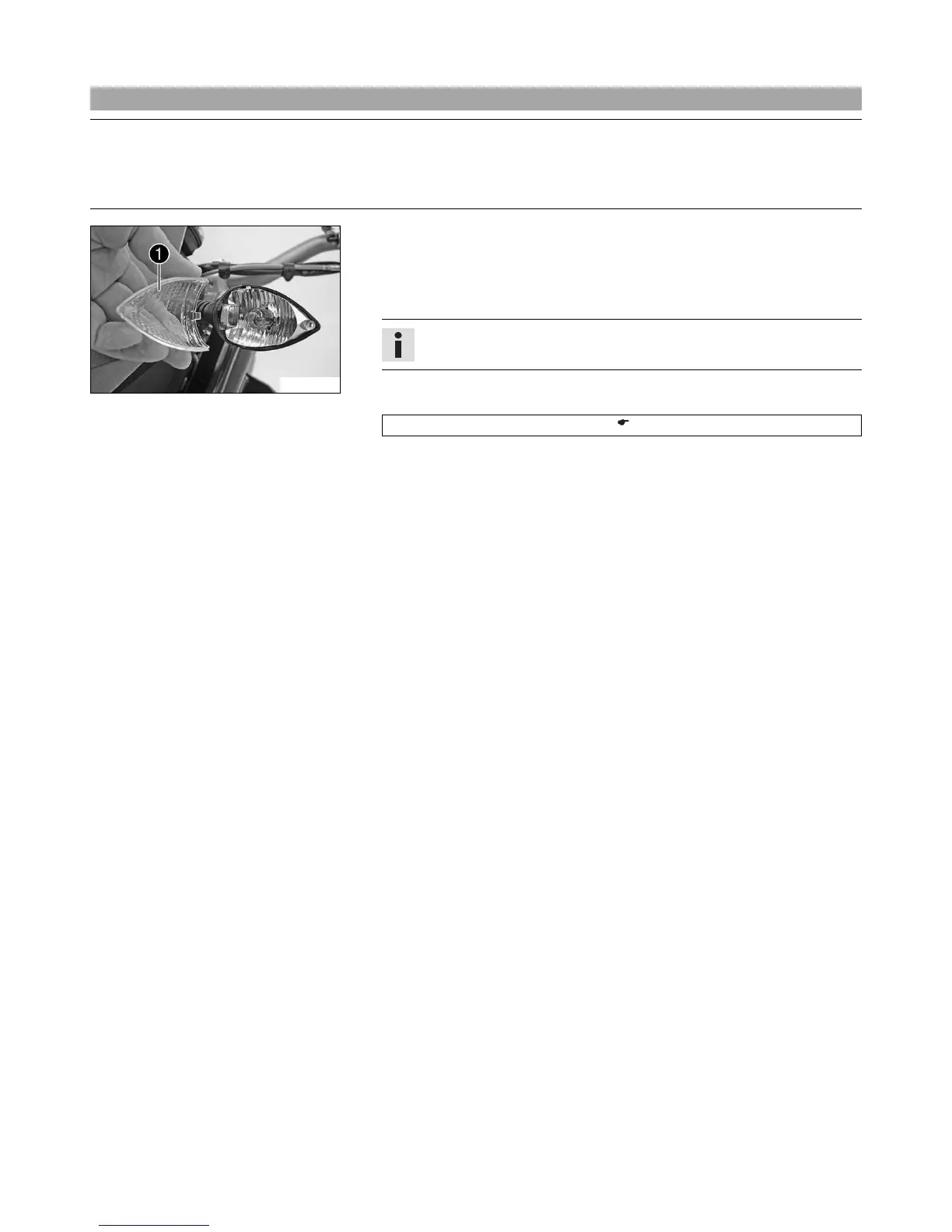

– Carefully swing turn signal glass 1 forward and take it off.
– Press the turn signal bulb carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise until
it stops.
Turn signal (RY10W / socket BAU15s) ( p. 177)
– Position the turn signal glass.
– Insert the screw and turn it counterclockwise first until it engages in the thread.
Tighten the screw slightly.
Finishing work
– Check the turn signal system function.
