6 FORK, TRIPLE CLAMP 20

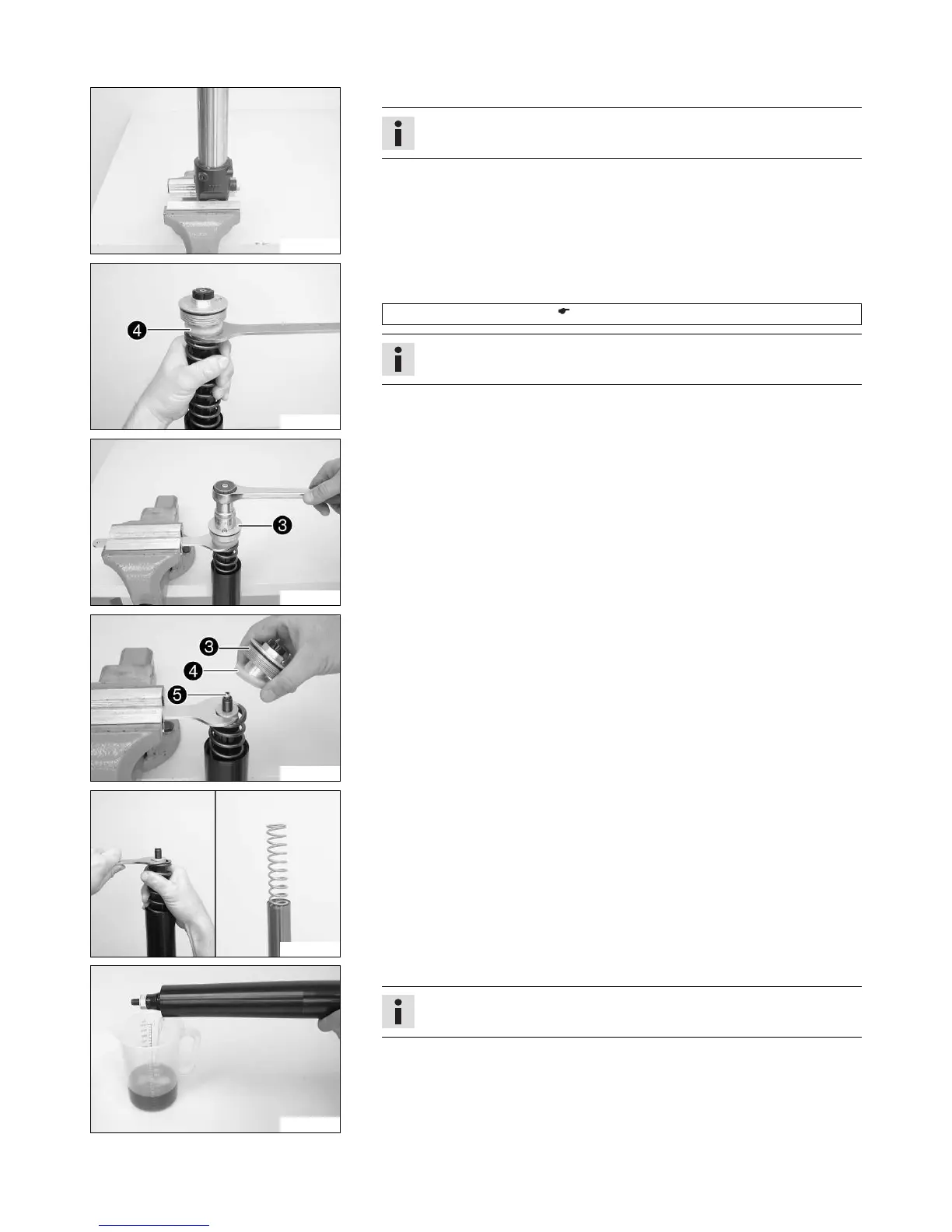

200661-01
– Release the fork leg and clamp it with the axle clamp.
Info
Use soft jaws.
200646-12
– Push the outer tube downward.
– Pull the spring downwards. Mount the special tool on the hexagon.
Open-end wrench (T14032) ( p. 221)
Info
The preload spacers 4 should be above the special tool.
200647-12
– Clamp the special tool in the vise. Loosen screw cover 3.
200648-12
– Remove screw cover 3 with preload spacers 4.
– Remove adjusting tube 5.
200649-01
– Pull the spring downward. Remove the special tool.
– Remove the spring.
200650-01
– Drain the fork oil.
Info
Pull out and push in the piston rod a few times to empty the cartridge.
