6 FORK, TRIPLE CLAMP 21
200662-01

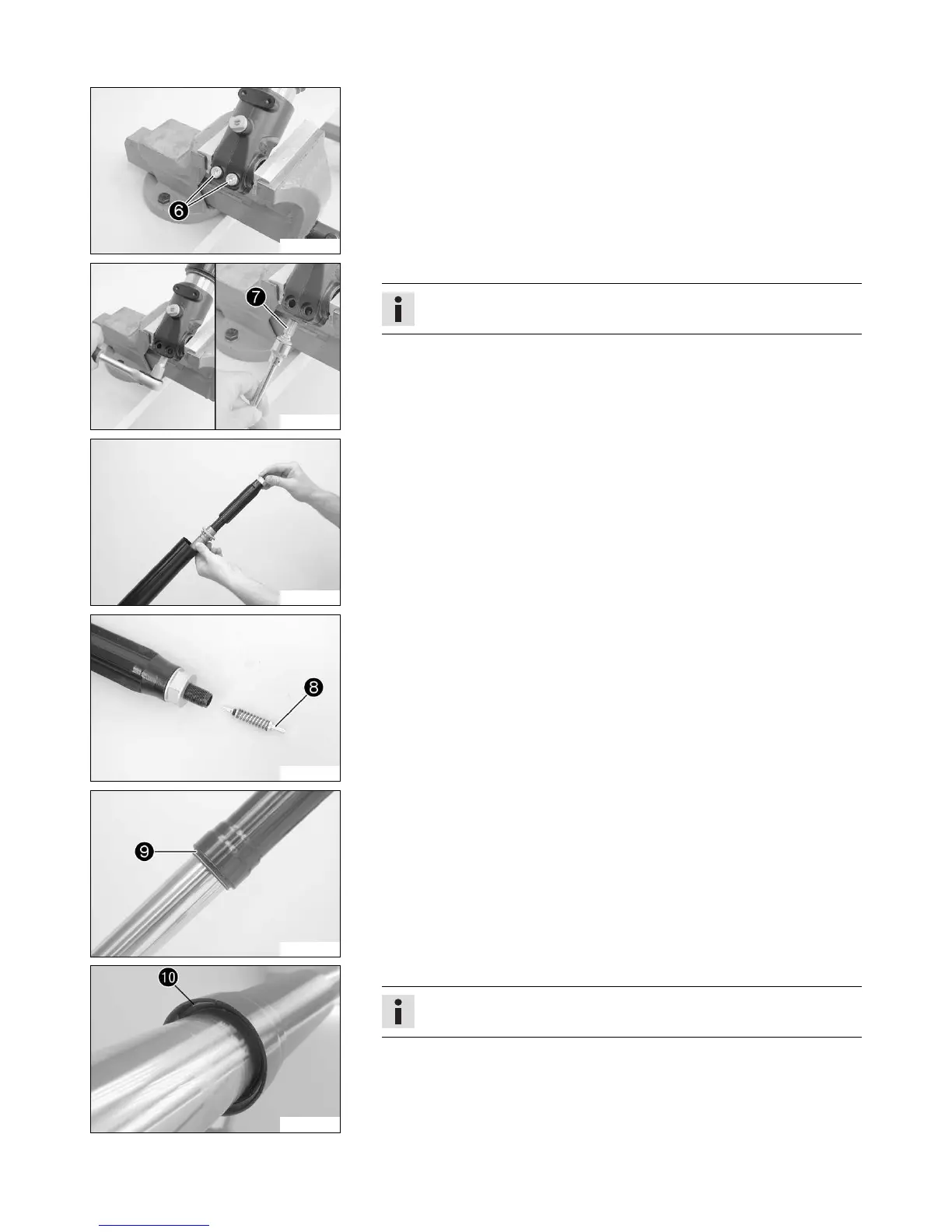

– Clamp the fork leg with the axle clamp.
– Remove screws 6 of the axle clamp.
200667-10
– Loosen screw 7 of the cartridge and remove it with the sealing ring.
Info
Place a container underneath to catch any oil that may run out.
200653-01
– Remove the cartridge.
200654-12
– Remove valve 8 of the rebound damping with the spring from the cartridge.
200655-12
– Remove dust boot 9.
200656-12
– Remove lock ring bk.
Info
The lock ring has a beveled end where a screwdriver can be applied.
