16 ENGINE 102
– Take off the engine sprocket.
– Take off the clutch slave cylinder and hang it to the side.
Info
Do not kink the clutch line.
Do not activate the clutch lever if the clutch slave cylinder has been
removed.
– Take off the clutch push rod.
S00091-10

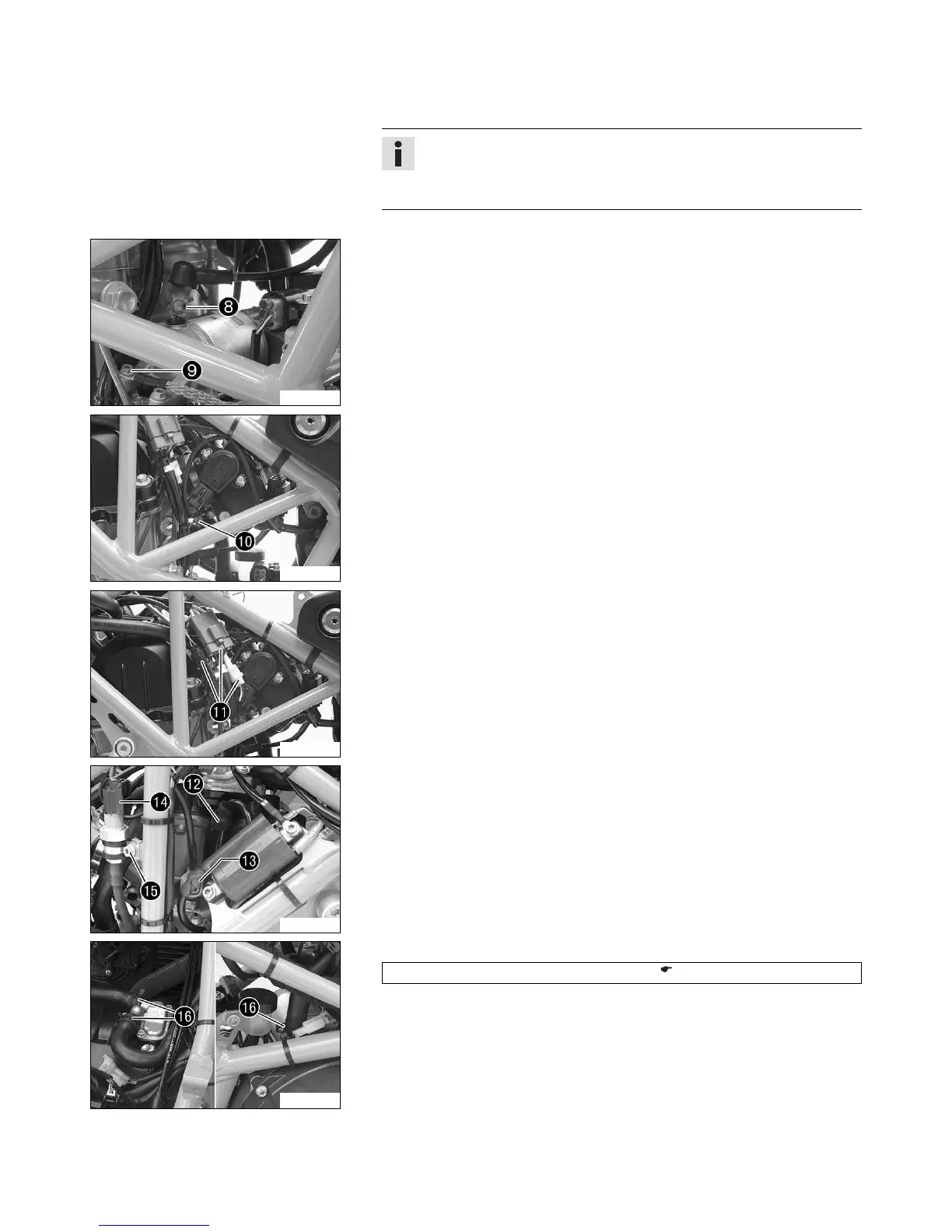

– Remove screw 8.
– Remove the electrical connection on the starter motor.
– Remove screw 9.
– Take off the ground cable of the starter motor.
S00092-10
– Release hose clip bk.
– Pull off the throttle valve body from the rear.
S00094-10
– Disconnect connector bl of the gear position sensor, the crankshaft position sensor,
and the alternator.
– Remove the cable binders and expose the cable.
S00093-10
– Pull off spark plug connector bm.
– Unplug the connector of the engine coolant temperature sensor bn.
– Unplug the connector of the oil pressure sensor bo.
– Remove screw bp.
S00096-10
– Loosen the spring band clamps bq using the special tool.
Pliers for spring band clamp (60029057100) ( p. 213)
– Pull off the hoses.
