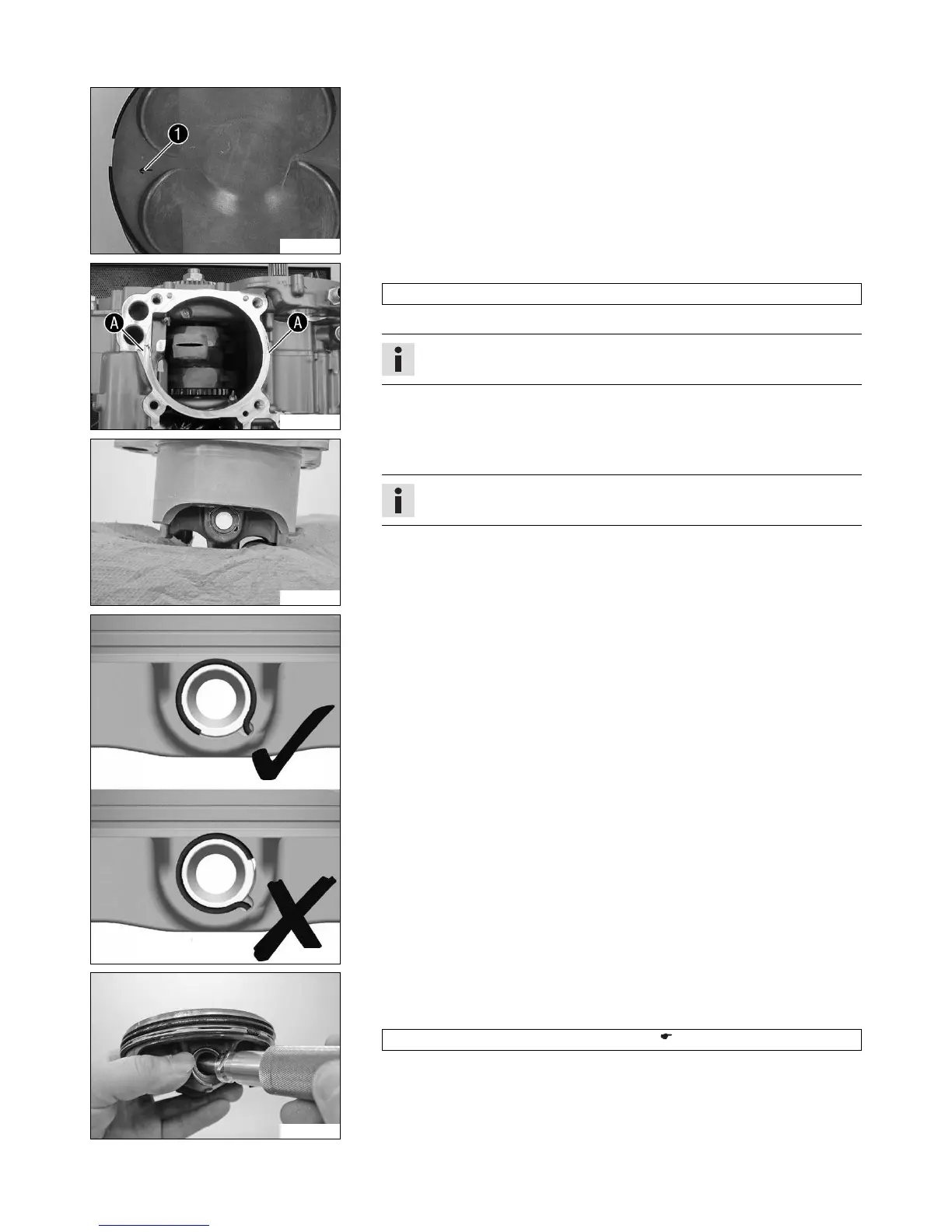

16 ENGINE 152
302599-10
– Ensure that piston marking 1 faces the outfeed side.
302598-10
– Apply a thin layer of sealing compound in area A.
Loctite
®
5910
– Place the cylinder base gasket on.
Info
Make sure the grooved pins are seated correctly.
300036-10
– Cover the engine case opening with a cloth. Thread the timing chain through the
chain shaft. Mount the piston pin.
Info
For clarity, the following steps are illustrated using a disassembled piston.
400366-10
– Position the piston pin retainer.
300038-10
– Insert the special tool and firmly press it toward the piston.
– Turn the special tool counterclockwise, thereby pressing the piston pin retainer into
the groove.
Insertion for piston ring lock (75029035000) ( p. 215)
– Make sure that the piston pin retainer is seated correctly on both sides.
