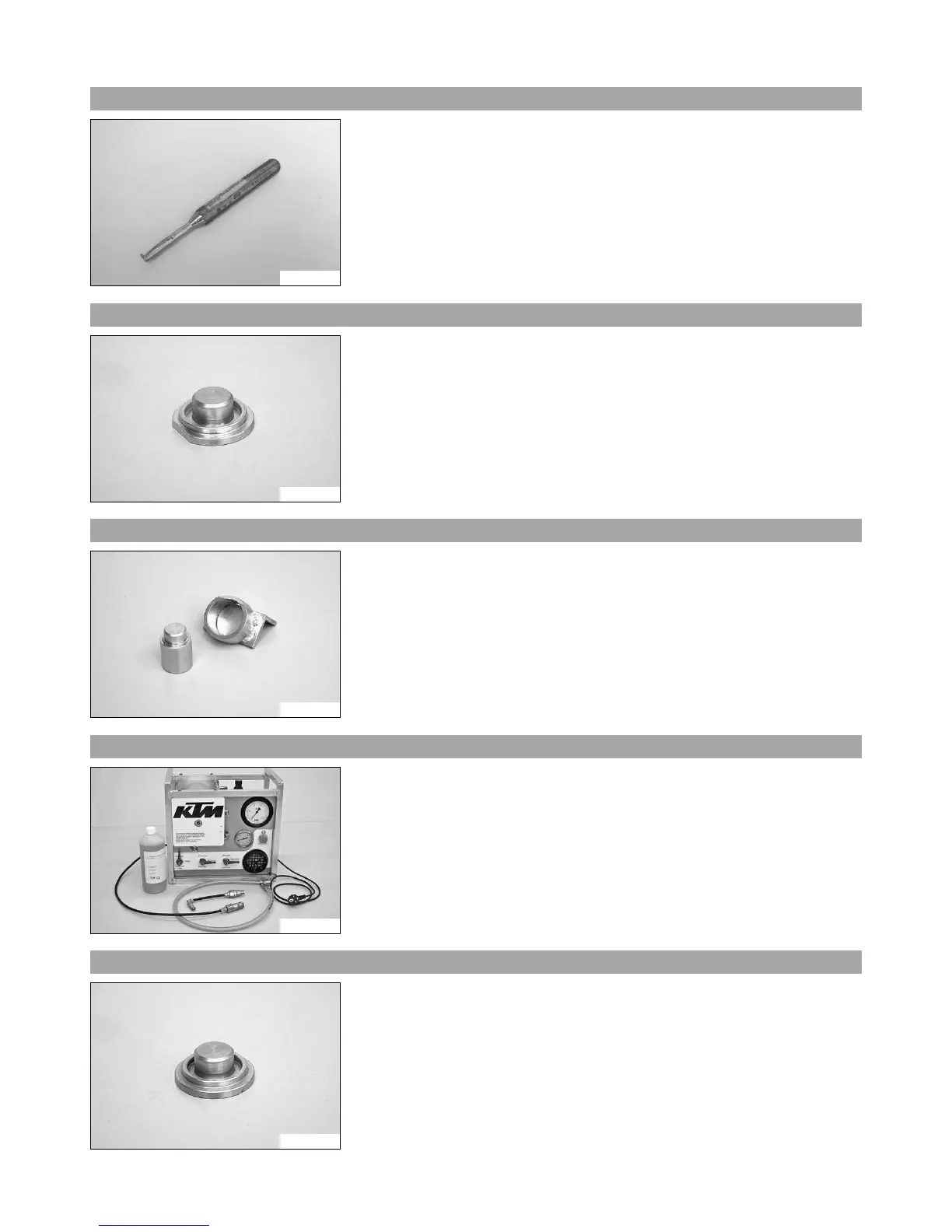

28 SPECIAL TOOLS 220

Pin

201235-10

Art. no.: T120

Pressing tool

200583-10

Art. no.: T1206

Pressing tool

200585-01

Art. no.: T1207S

Vacuum pump

200273-10

Art. no.: T1240S

Pressing tool

200584-01

Art. no.: T129
