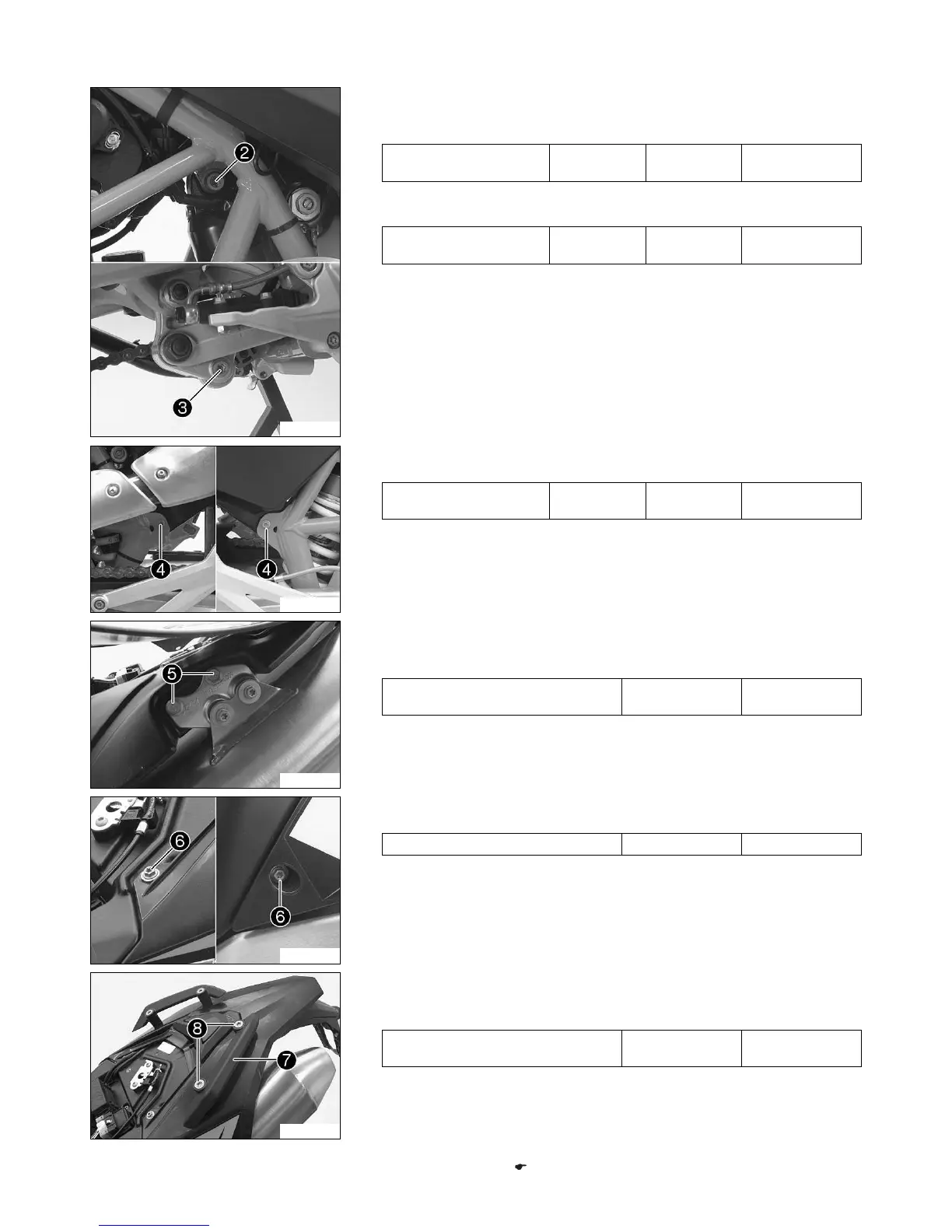

8 SHOCK ABSORBER, SWINGARM 37
S00066-11
Mount screw 2 but do not tighten yet.
Mount and tighten screw 3.
Guideline
Screw, bottom shock
absorber
M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
Tighten screw 2.
Guideline
Screw, top shock absorber M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
S00065-11
Mount and tighten screws 4.
Guideline
Screw, fuel tank, bottom M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
S00064-11
Lift the rear fairing.
Mount and tighten screws 5.
Guideline
Screw, main silencer holder on fuel
tank
M8 25 Nm
(18.4 lbf ft)
S00063-11
Mount and tighten screws 6.
Guideline
Screw, side cover M6 5 Nm (3.7 lbf ft)
S00062-11
Position grab handle 7.
Mount and tighten screws 8.
Guideline
Screw, handrail M8 20 Nm
(14.8 lbf ft)
Finishing work
Mount the side cover. ( p. 60)
