10 AIR FILTER 58
S00077-11

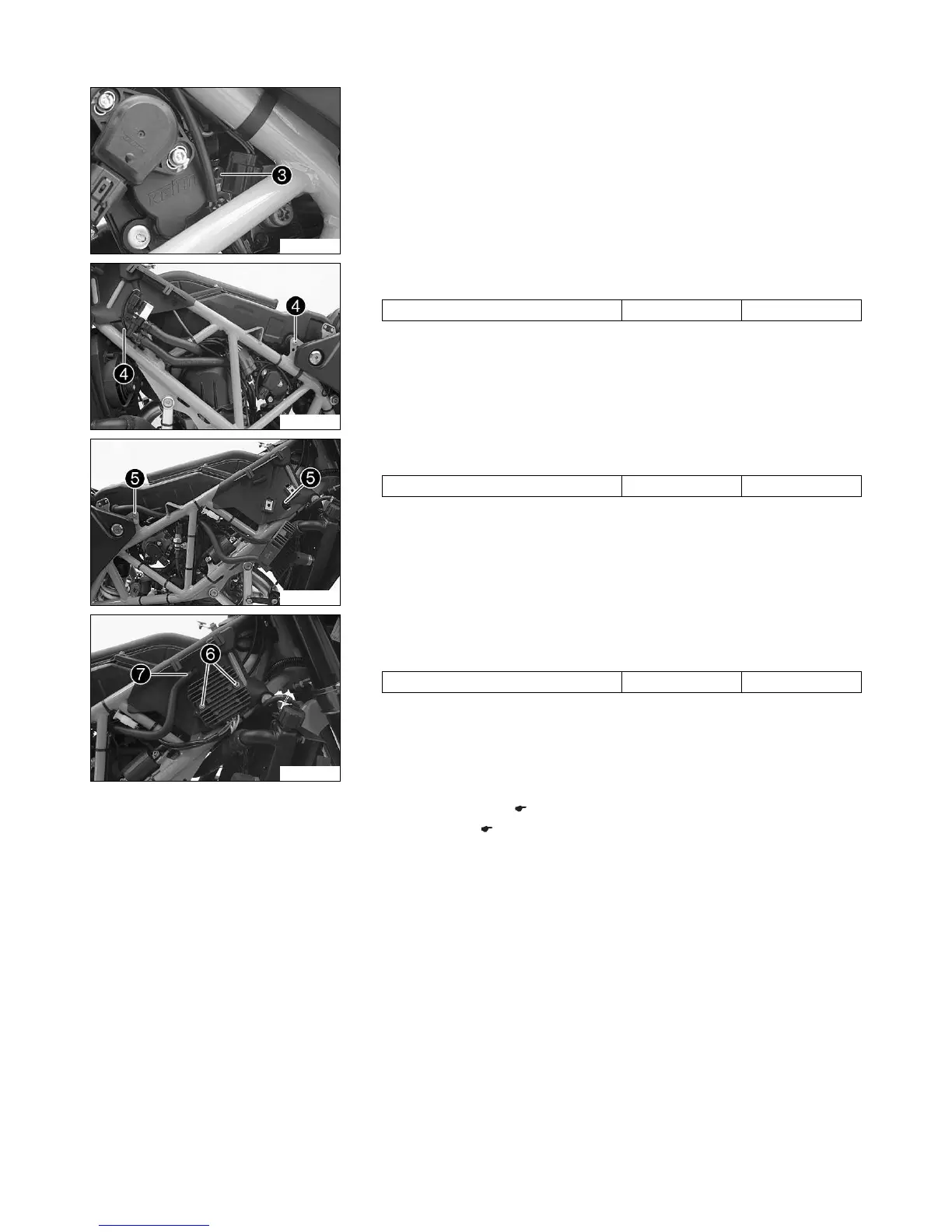

– Position the air filter box.
– Mount and tighten hose clip 3.
S00076-10
– Mount and tighten screws 4.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
S00075-11
– Mount and tighten screws 5.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
S00074-11
– Position the voltage regulator.
– Mount and tighten screws 6.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Route and mount vent hose 7 without kinking.
Finishing work
– Mount the side cover. ( p. 60)
– Mount the seat. ( p. 60)
