4.0 Shaftcopy System with UCM Zone
HSK-90 / HSK46 System

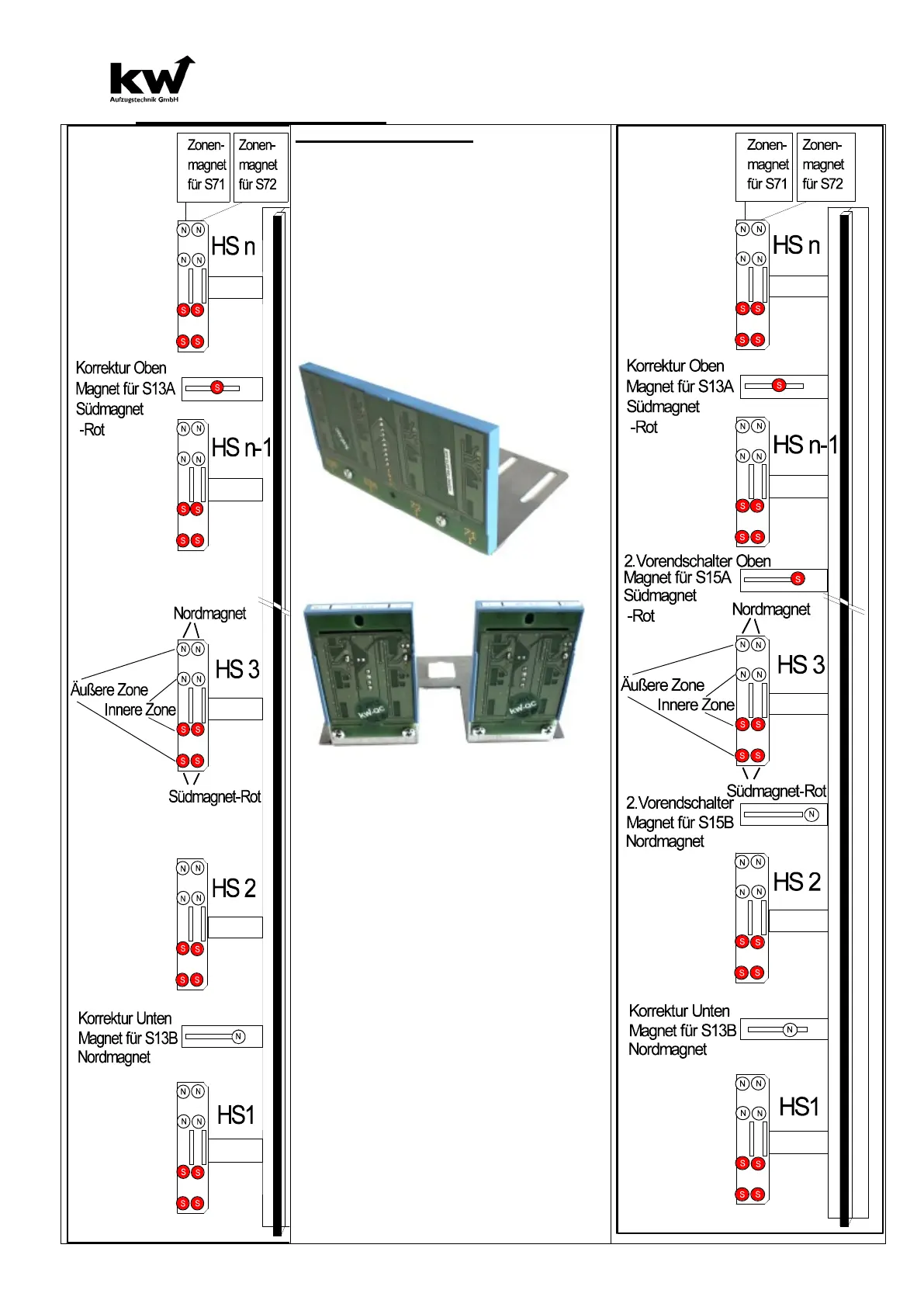

The shaft copy system HSK-90
consists of
the shaft and the shaft ESF16 flags SFH16
holders of the respective magnets and mount-
ing hardware.
On the flag, the North magnets are always on
top! Each 4 round magnets of a track-form an
exterior and an interior zone. The outer zone
is responsible for the driveway
with the door
open, the interior area for catching up / UCM
detection. The shaft resolution approximation
HSK-90 panel is mounted on the cab roof us-
ing the mounting bracket.
At the HSK46-System
the magnets are
mounted directly on the rail.
The pre-limit up / top S13A correction is
turned on by a magnet south.
The magnet
must be between the penultimate and last
floor!
The pre-limit down / bottom correction
S13A is turned on a north magnet. The mag-
net must be between the 2 - and are lowest
floor!
At a higher Speed than 2.0 m/s, or short
travel stops, respectively, a second pre-limit
switch is necessary.
The second pre-limit up / top S15A turned
off-a South magnet. The magnet must be lo-
cated between the pre-penultimate and pe-
nultimate floor.
The second pre-limit down / bottom S15B
is turned on a north magnet.
The magnet
must be between the 3rd and 2nd Floor there.
