KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 198 -

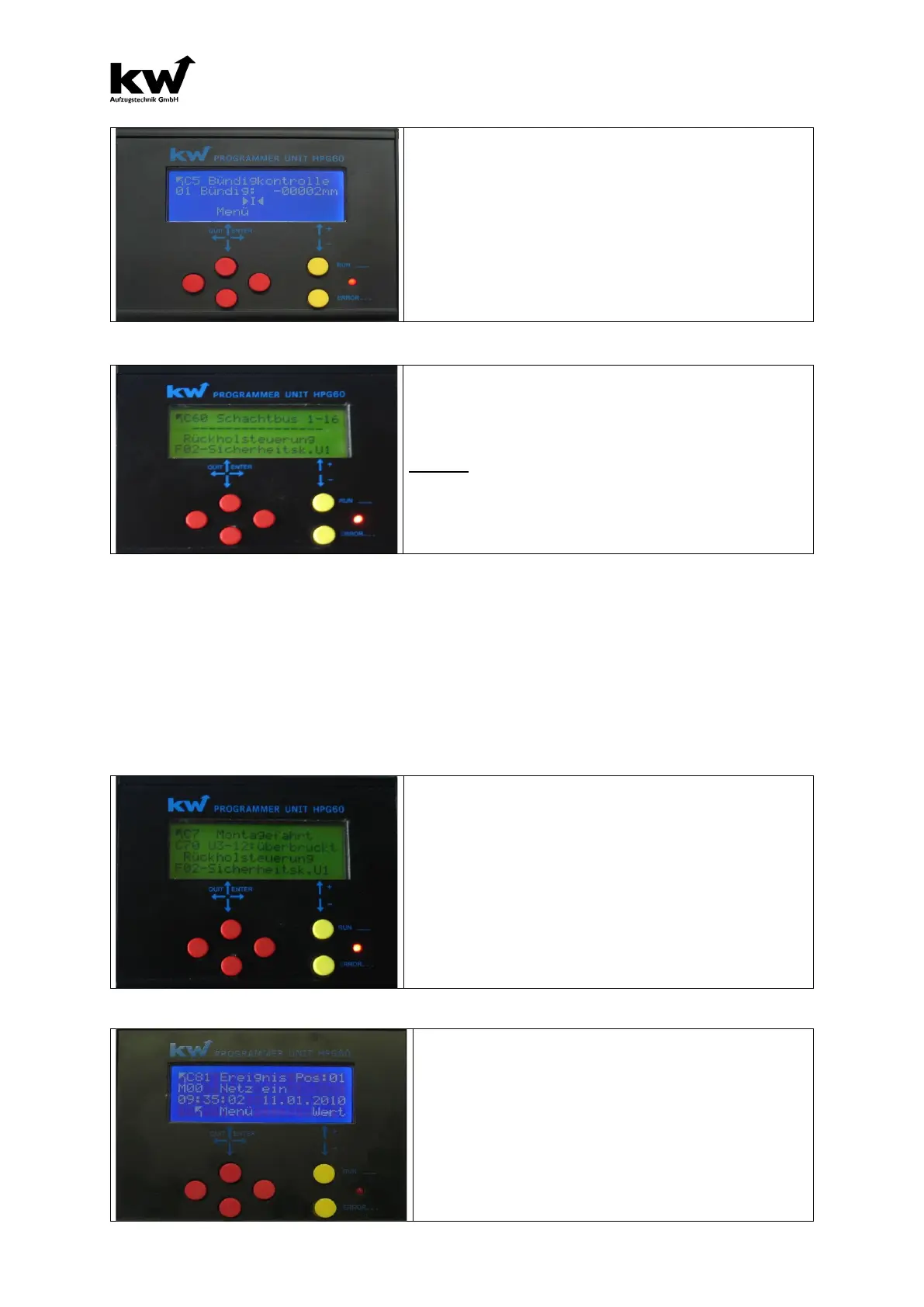

C5 Leveling control
In the submenu C5 Leveling control is spent the current
position of the car in mm. If the car is located concisely in
the stop additionally a second numerical value provided
with a sign is spent. A minus means that the car is located
too low
in purchase to the measured position. A plus
means that it stands too high.
C6 Modul Monitor
In the menu C60 equipment control is spent in the subi-
tem ER 00 to 16 and ER16 to 32 the condition of all devices
at the pit bus i.e. all floor computers and auxiliary`s groups.
Legend:
“-“ it is not missing a remote station at this address
“*” remote station at this adress is correct
“?” remote station at this adress has a defect
In addition the pulse conditions can be monitored during digital shaft copying. For normal counting
it is necessary that the impulse conditions increase in the one direction and decrease in the other direc-
tion.
In addition the revision number of the individual operating system of blocks can be found there.
For the programming of the ER-2007 remote station serves the parameter remote station address
program.
The remote station ER-2007 which can be programmed is connected to the RJ-45 cable with the central
unit. All other floor computers may not be connected. Those program-bends at the ER-2007 must be
set. By the choise of the floor number ( 01 to 32) ER-2007 gets its address. Afterwards the ER-2007 is
installed into the appropriate floor.
C7 ASSEMBLING TRAVEL
In the submenu C7 point C70 assembly travel can be ac-
tivated during active resend control of these parameters.
When the assembling of a lift switches off,
is
not yet set at the beginning. This function makes the
safety entrances U3 to U12 tension movement possible
with the resend control. A condition is that against U1 and
U2 clamping rests.
This reaches automatically the use of a KW assembly pear.
If the resend control break this parameter it is automatically
deactivated.
C8 EVENT LOG
In the submenu C8, point C81 Event Log
Event Log with the last 30 Events messages:
- Message -00: Power -ON
- Message -10: Emergency Evacuation ON
- Message -11: Emergency Evacuation Floor
- Message -12: Emergency Evacuation OFF
