KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 160 -

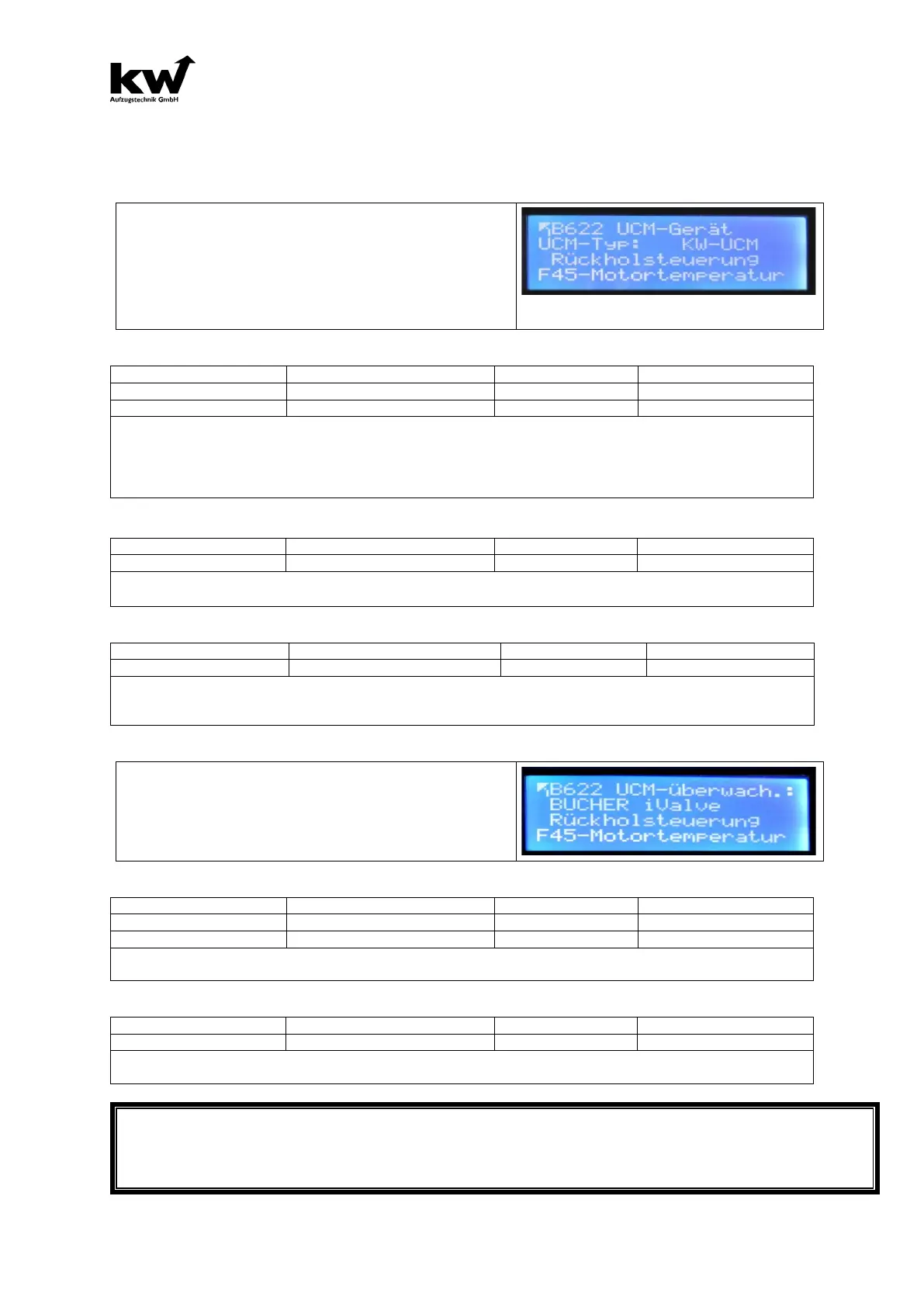

B622 UCM MONITORING
B622 UCM Monitoring is based on the standard EN 81 1/ 2 –A3 which controlling unintentional move-
ment of the car with open doors in stop.
UCM-Device
The following settings are possible:
1.) OFF
2.) KW-UCM-Circuit
3.) WITTUR EOS
4.) Speed Limiter with Anti-Creep
5.) Dynatech-Vega Speed Limiter
WITTUR EOS-UCM
Signal
Input
Output
Menu
ACD-Feedback
E495 UCM State-3
--
Batterymonitor
E507 Batterymonitor
--
 Menu B600
Response: If the ACD reporting and feedback comes in the safety circuit interrupts U5 (speed Limiter), the case
of Motion of the car with the door open is provided from the bus stop. It depends on the error message "F60 A3-
case".
Does the battery monitoring of the EOS system counts, if the error message "F42 battery monitoring." A rope
elevator keeps the next stop, a hydraulic elevator drives to the bottom floor.
Speed Limiter with Anti-Creep (Type Bode Componentes, Jungblutt, Dyntec Star, Liftequipe-ThyssenK )
Signal
Input
Output
Menu
Message contact
E495 UCM State-3
--
Response: If after the expiration of the trip the coil does not fall off, this is reported via the read-back contact
and prevent the next ride. It depends on the error message "F60 A3-case".
Speed Limiter with Anti-Creep
– Dynatech-Vega
Signal
Input
Output
Menu
Message contact
E495 UCM State-3
A638 UCM-Coil
Response: The solenoid coil is controlled via output function A638. During the start process, the correct posi-
tion of the rocker is monitored via a proximity switch (input E495). Up to 7 start attempts are possible. If the end
position of the rocker is then not reached, the error message "F60 A3-case" appears.
UCM-Monitoring
The following attitudes with A3 are possible:
1.) NO MONITORING
2.) OILDYNAMIC NGV A3
3.) BUCHER iValve
GMV-Oildynamic: Safety Valve NGV-A3
Signal
Input
Output
Menu
READY
E493 UCM Staus-1
--
RUN
E494 UCM Staus-2
--
Reaction: If the sequence is wrong, the case of the traveling motion of the car with the door open. It depends
on the error message "F30 UCM check valve".
BUCHER iValve – Integrated Emergency Stop – Down- Valve
Signal
Input
Output
Menu
+SMA
E493 UCM Staus-1
--
Reaktion: If the sequence is wrong, the case of the traveling motion of the car with the door open. It depends
on the error message "F30 UCM check valve".
Three different ways to Reset of the error “F60 A3-Case”:
1.) In the menu C0 Controller Reset
2.) Simultaneously press the three buttons maintenance call top-down call on the central unit ZR.
3.) De-energizing the FKR in the inspection box.
