KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 36 -
2.9 Device Description Car Controller FKR
The lift control system DAVID-613 is a distributed
control system.
The information is serially transmitted from the cen-
tral unit to the car controller unit FKR.

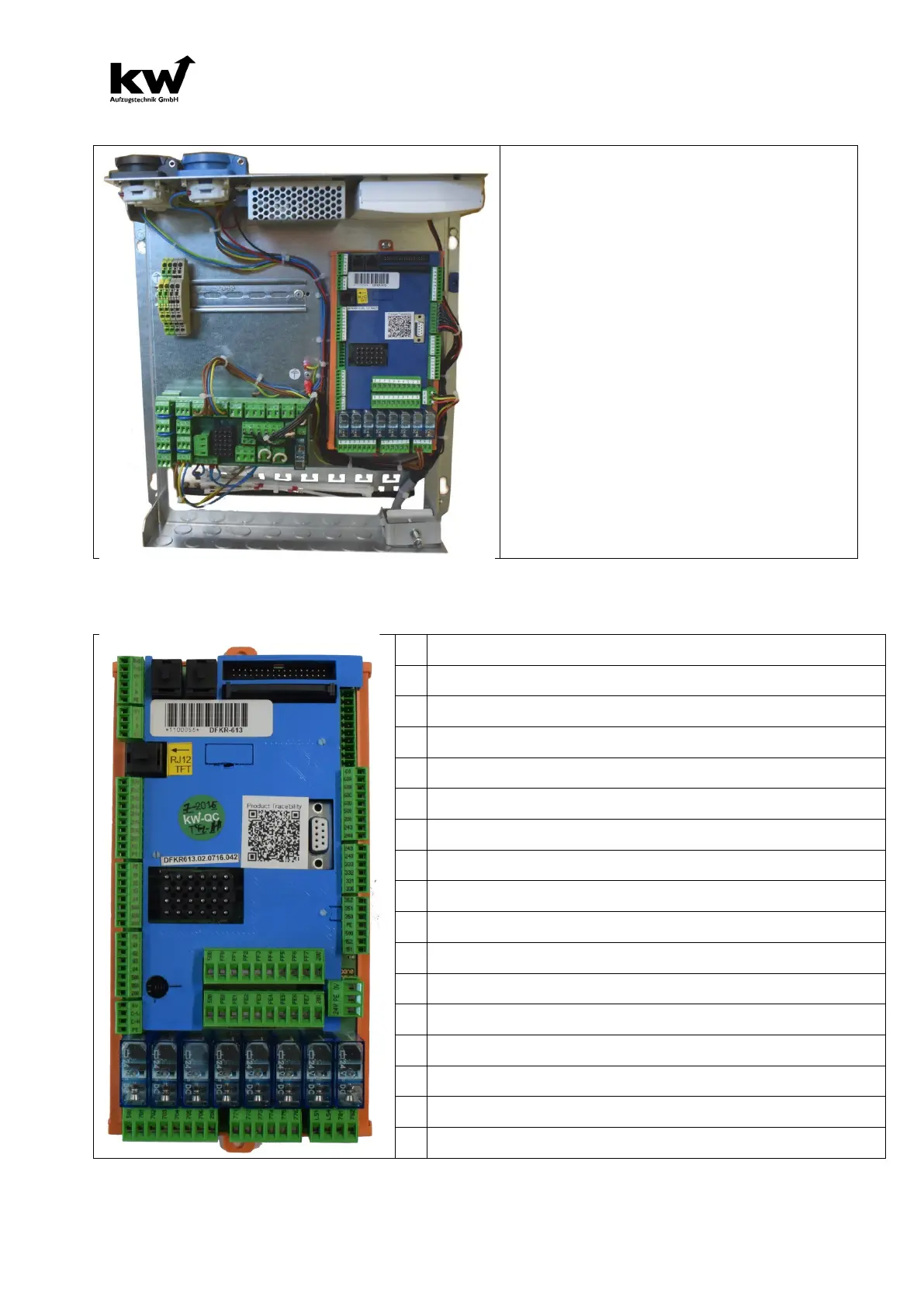

In the figure on the left of the box with
inspection is FKR (middle right), terminal block
(below), power outlet, power supply and alarm
horn.
The FKR coordinates the shaft copy, load meas-
urement, cabin-gong, and door control. Up to
inside panels, as well as matrix, LCD and TFT dis-
plays can be connected.
All connections for the system components, in or
on the cabin are pre-assembled.
Connection options on the car controller FKR 613
Gong-output
Load-sensor-input
+24V DC Inputs
Digital Encoder-inputs
Absolute value Encoder-inputs
16 +24V DC Outputs
7 Relay outputs
2 RJ-12-Interface for Carposition- and Drive Indicator
2 Flatwire Interface 34 pole for two Car-panel-Interfaces
3 Serial Interface RS 232 / RS 485
2 Car-Panel-Interfaces f0r EIT
1 CANOpen Interface
1 RJ-12-Interfacefor TFT-Grafic displays
1 Hanging wire interface
1 Expansionport
