KW DAVID 613 - I5-Actual Value Menu Safety Circuit

KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 194 -

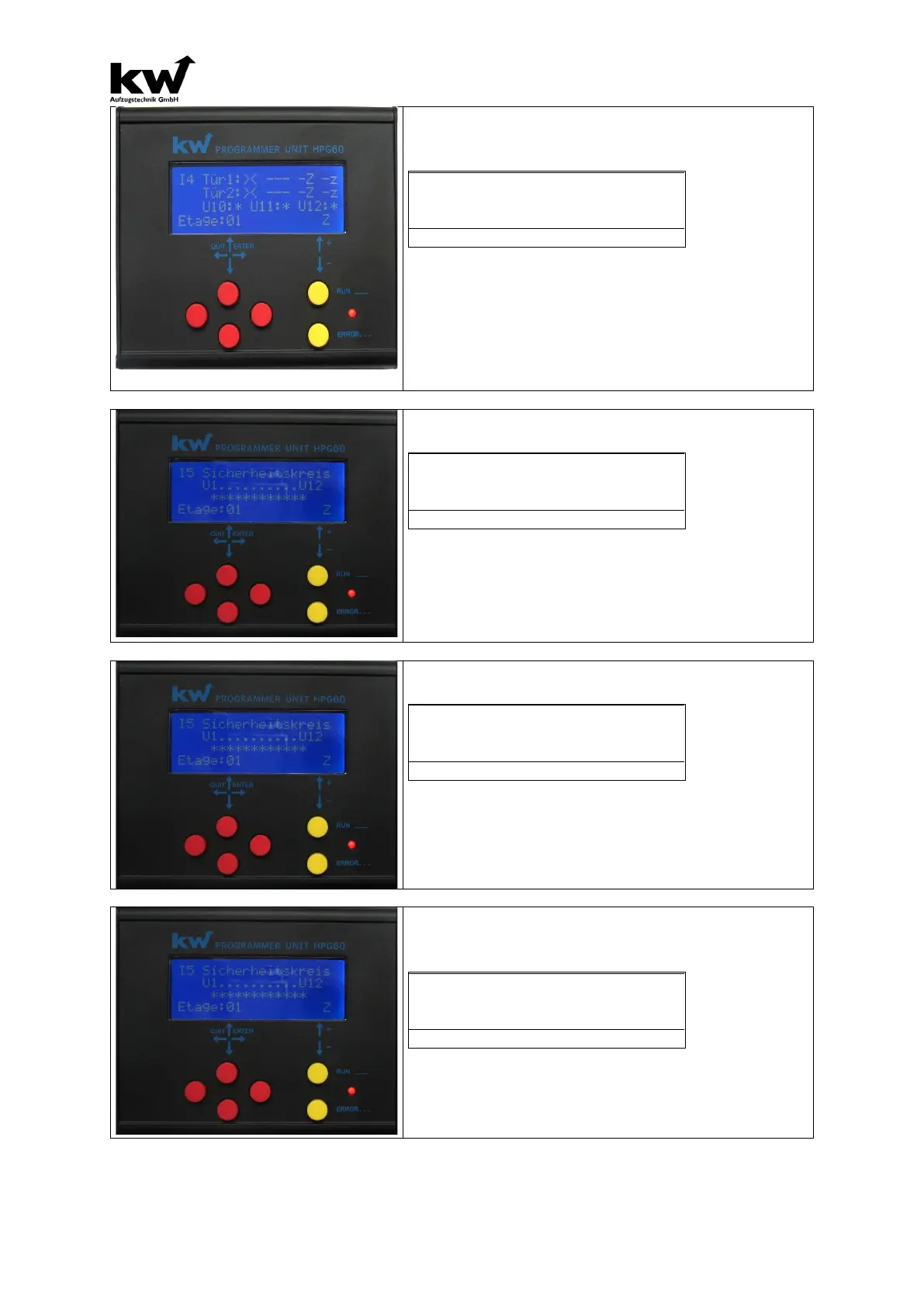

I4-Actual value menu door position, door
switch, door controller, safety photocell
I4 Door1:<> LRV AZ az
Door2:>< LRV AZ az
U10:- U11:- U12:-
Floor:01
1./2.line : L: safety photocell Door1/2
R: reverse contact Door 1/2
V: entrance monitor Door 1/2
A: door command-Open Door 1/2
Z: door command ZU Door 1/2
a: end switcher open Door 1/2
z: end switch close Door 1/2
3.line : safety circuit Doors: U10/U11/U12
I5-Actual value menu safety circuit
I5 Safety circuit
U1..........U12
------------
Floor:01
In this actual value menu the current cab position is indi-
cated in mm. The second value indicates the learned con-
cise value in mm.
In the 4
th
line are indicated the current Stop and the driving
direction up and down.
I6-Actual value menu car command
I6 Commands
VAin01234
K31 K32 K33 K34
Floor:01
2.line: Drive commands
3.line: pilot control K31..K34
I7-Actual value menu Modem; active, availa-
ble, standby, communication..
I7 Modem: ready
Sig:050% T-Mobile D
Floor:01
1.line: Condition Modem
(off/ready/search/online/connection clearing)
2.line (only GSM-Modem): Reception intensity – network
provider run command
