KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 211 -

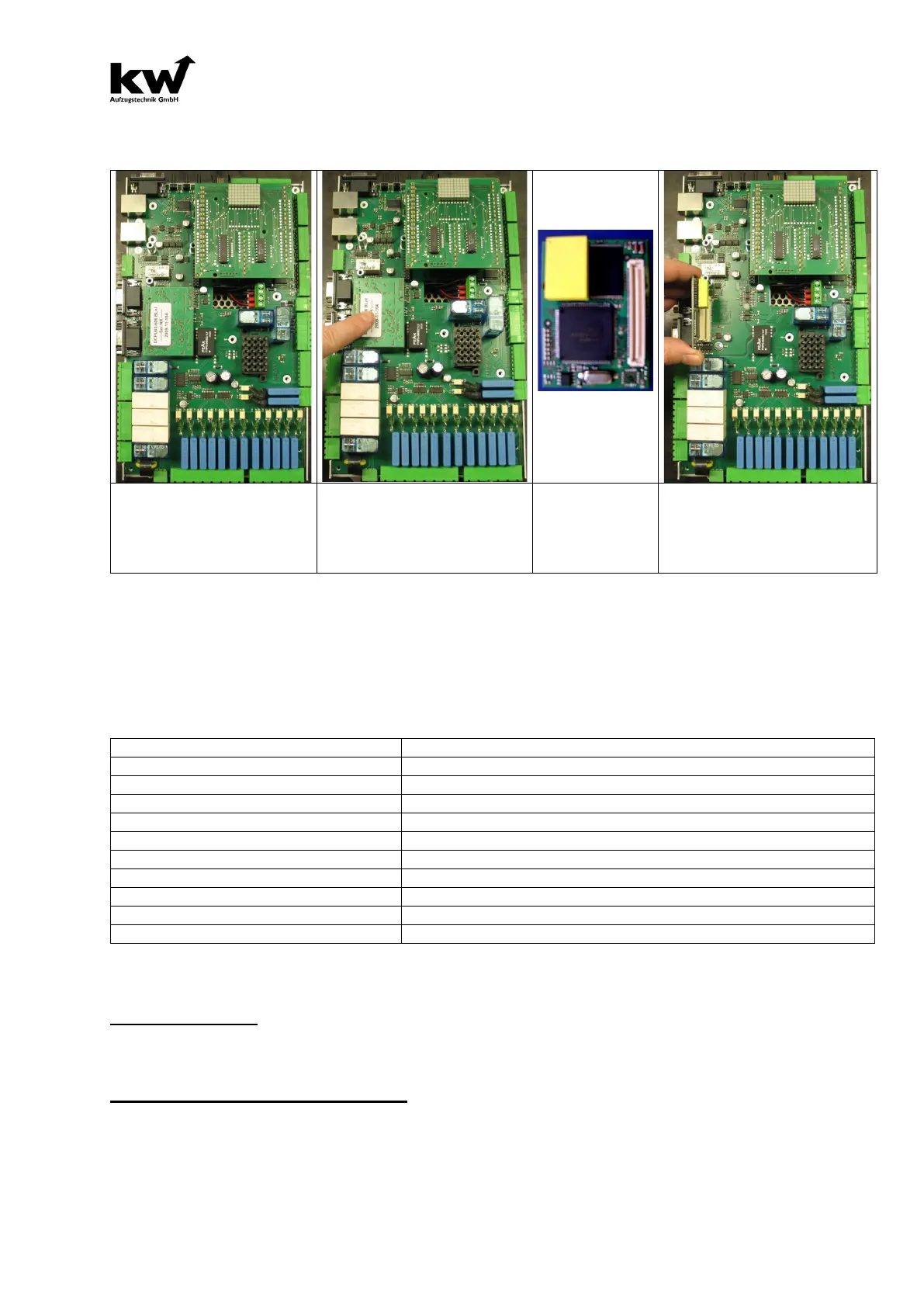

W01 Exchange of the processor map
Before you proceed to replace the CPU card, all fuses and switches are turned off. Set the car at the
lowest level flush, with activated emergency operation (car doors closed).
For the change of the CPU
map the cover of the ZR-
unit must be opened. The
map is on the bottom left
in the body.
Do not damage other parts
on the lare printed circuit
board. With two finers you
can loosen the prited cir-
cuit board.
Take the new
CPU map from
the ESD pro-
tective plastic
film.
Use the new CPU map care-
fully. Convince yourself
that the map sits correctly.
Close the cover again after-
wards.
6.0 Information
D1 IN / OUTPUT
The submenu D1 is not yet realized.
D2 Trip counter
In the submenu D2 the trip counter is realized. Two trip counters are available:
Total trip counter
Not erasable
Total trip counter erasable
Erasable for the statistics evaluation
Delete trip counter ?
No - Yes
Trip counter Up erasable
Erasable for the statistics evaluation
Trip counter Up delete ?
No - Yes
Travel counter down erasable ?
Erasable for the statistics evaluation
Trip counter down delete ?
No - Yes
Change of direction counter
See below
Rope wear counter
See below
Floor trip counter for each floor
Erasable for the statistics evaluation
Delete trip counter?
No - Yes
Menu D2 Change of direction counter
Submenu password
In order to make or change outputs in the direction of the change counter, a password entry is neces-
sary.
Submenu change of direction OFF / ON“
Here the direction change counter can be switched on or off.
