KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 108 -
B43 – Absolut Copy
1.0 General
The absolute copying represents a digital shaft copying which is operated either without magnet control
or with 3-4 magnet control:
2.0 With one shaft switch / HSK-10 & V-shaft-flag
In this method, the Hall switch HSK01 is used for the detection of zone 71. The second zone 72 is
generated via the absolute value encoder system.
After assembly of the ABS sensor system, the car is parked between floors 1 and 2. After the start of
the learning journey, counting direction and the zones of the floors are learned.

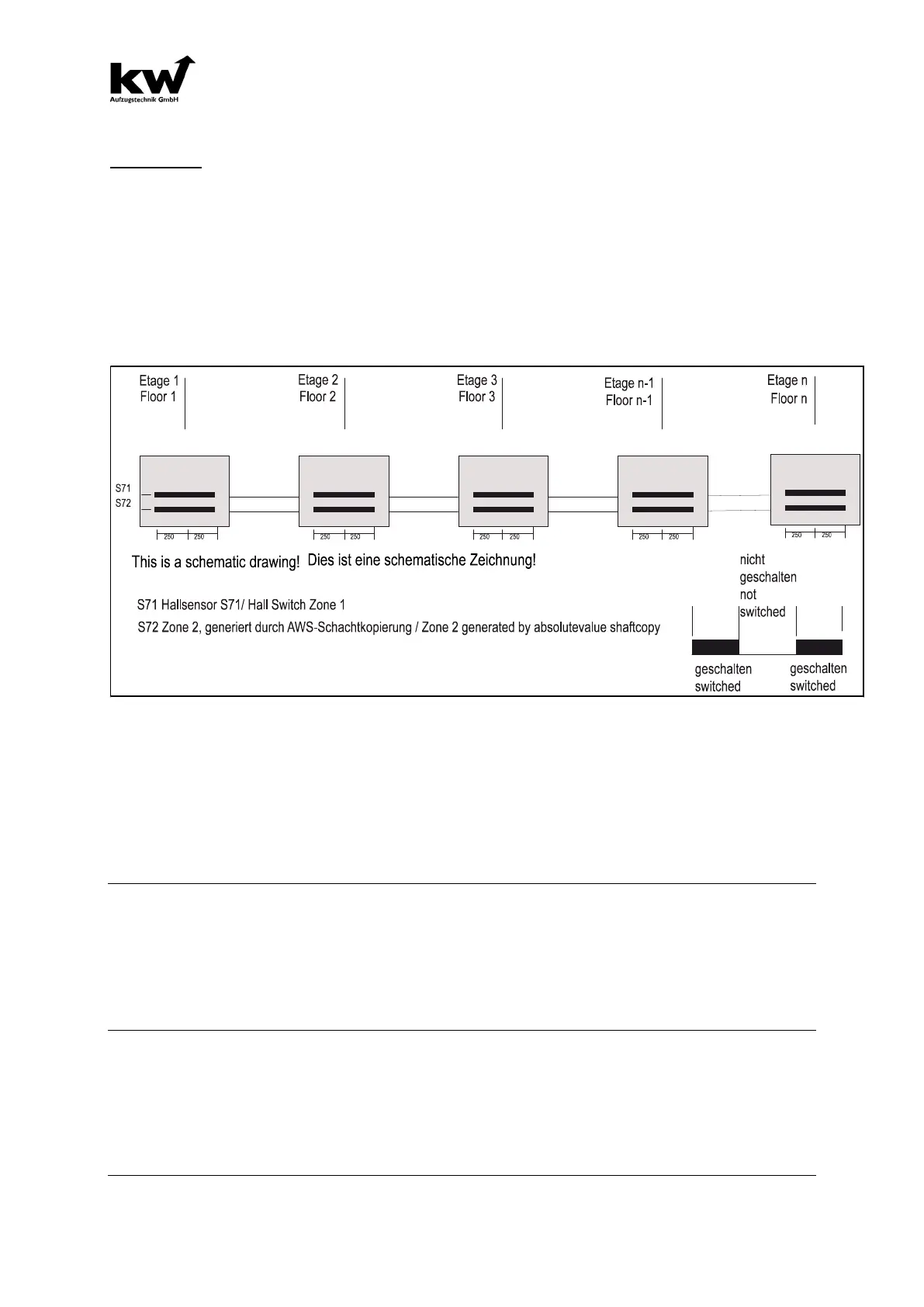

With one shaft switch
After learning, the center of the zone area is assumed to be flush. A correction can be carried out by
entering the difference values for the flattening correction parameter. A change in the position of the
zones must not be carried out after the learning run. A detailed description can be found in chapter
I02-Startup absolute copying of the control manual or the installation instructions.
Delay and pre-limit switch
The delay to enter the station is made using absolute shaft copying.
Type 1: Connector at ZR-613: SSI-Encoder Type Schmersal UPS SSI
Type 2: Connector at FKR-613: SSI-Encoder Type p Wachendorff WDG-SL00 – ALT
