KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 132 -
Text-2 Factory-No.
Here, the specification of the serial number on the labeling in the inner panel of the cabin is determined.
Text-3 Build Year
Here, the year of manufacture on the labeling in the inner panel of the cabin is determined.
Text-4 CE-Sign
Here, the specification of the CE-No., or the rebuilding year for the labeling in the inner panel of the
cabin is determined.
Floor Indicator
There are three visualization modes: fixed, rolling and as an animation.
Arrow Indicator
There are three visualization modes: fixed, rolling and as an animation.
Display String-1
Here, it is determined whether the string-1 is displayed on the TFT display.
Display String -2
Here, it is determined whether the string-2 is displayed on the TFT display.
Display String -3
Here, it is determined whether the string-3 is displayed on the TFT display.
Display String -4
Here, it is determined whether the string-4 is displayed on the TFT display.
Display Persons
Here, it is determined whether the number of persons indication is displayed on the TFT display.
Display Load
Here, it is determined whether the load indication is displayed on the TFT display.
Emergency Light
Here, it is determined whether the TFT display serves as an emergency light source. Physically required
the TFT display, the 12V DC power supply (terminals 100 & 500).

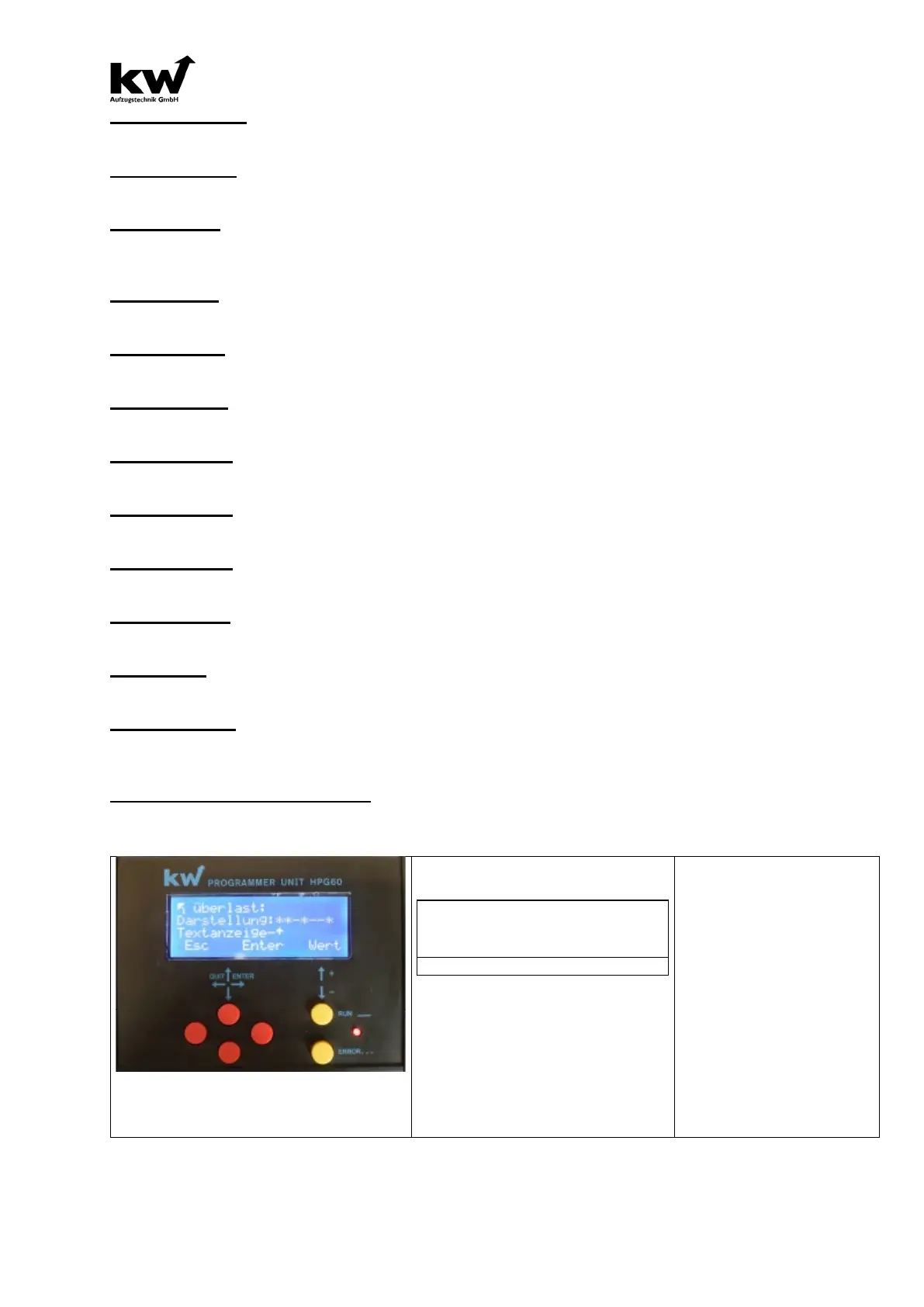

Message Overload … Please Speak
When KW display protocol up to 16 special messages can be transmitted serially. In this menu the fol-
lowing settings can be defined for each message:
B509 Displaytext
Overload:
Imaging:**-*--* Dis-
playtext-^
Esc Enter Wert
Here, the display text is activated by
the star, it will appear on the TFT dis-
play of the special text.
(* Display ON, - Display OFF)
Messages:
-> Overload
-> Evacuation
-> Fire Evacuation
-> Emergency Power Evac.
-> Fire Fighter Travel
-> Special Travel
-> Bed Travel
-> Guide Mode
-> Out Of Order
-> Maintenance
-> Loadingtime Active
-> Door Opening
-> Door Closing
-> Please Leave Car
-> Please Wait
-> Please Speak
