KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 39 -

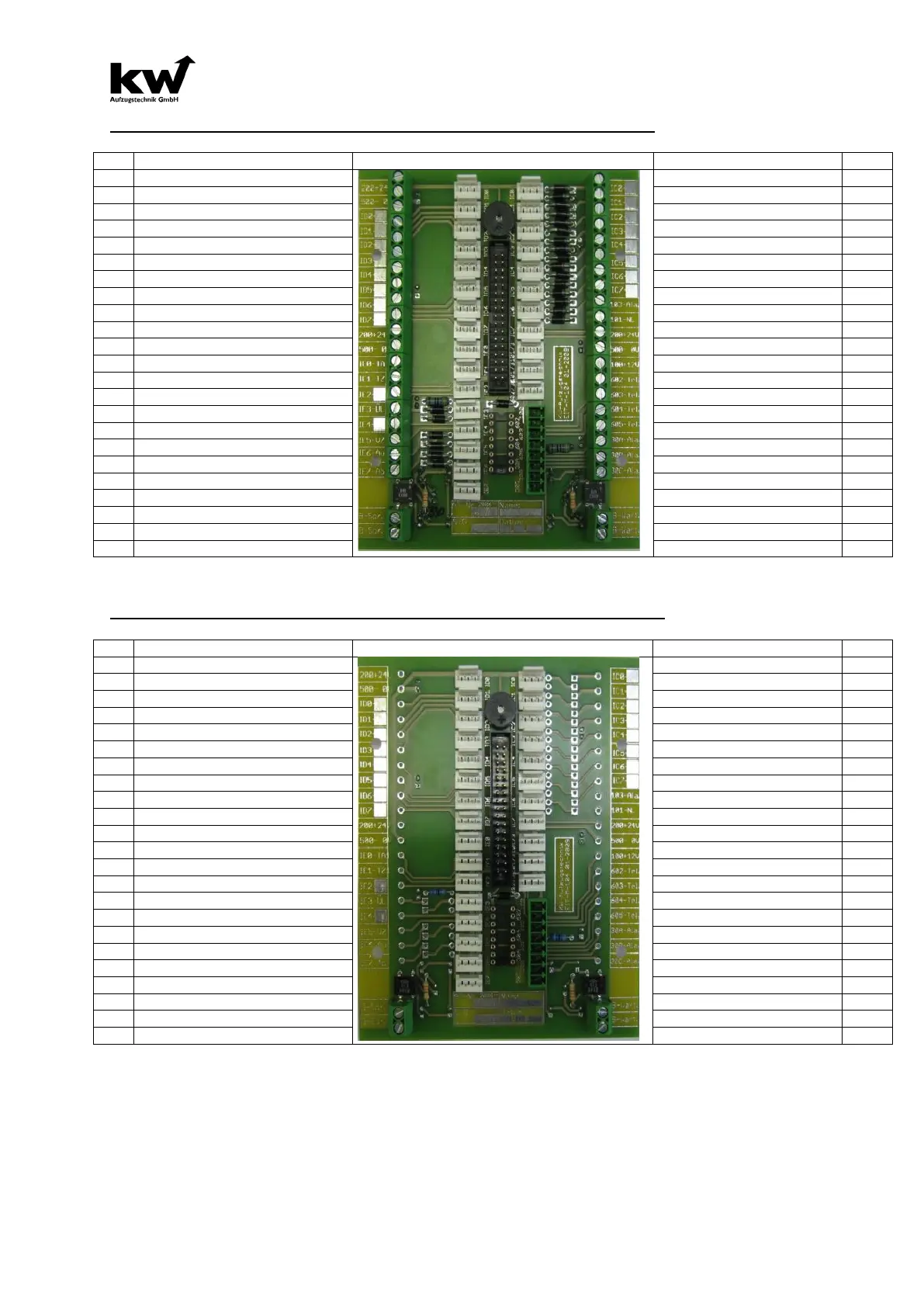

2.0 Technical Mountingof the PCB EIT-105 Full Version for KW-Carpanels
21h – Car position Floor 01
22h – Car position Floor 02
– Carcall Floor 01 ( high active )
23h – Car position Floor 03
– Carcall Floor 02 ( high active )
24h – Car position Floor 04
– Carcall Floor 03 ( high active )
25h – Car position Floor 05
– Carcall Floor 04 ( high active )
26h – Car position Floor 06
– Carcall Floor 05 ( high active )
27h – Car position Floor 07
– Carcall Floor 06 ( high active )
28h – Car position Floor 08
– Carcall Floor 07 ( high active )
– Carcall Floor 08 ( high active )
S43A – Door 1-Open Button
S44A – Door 1-Close Button
S43B – Door 2-Open Button
Arrow – Traveldirection UP
Arrow – Traveldirection DOWN
3.0 Technical Mountingof the PCB EIT-105 Light Version for KW-Carpanels
21h – Car position Floor 01
22h – Car position Floor 02
– Carcall Floor 01 ( high active )
23h – Car position Floor 03
– Carcall Floor 02 ( high active )
24h – Car position Floor 04
– Carcall Floor 03 ( high active )
25h – Car position Floor 05
– Carcall Floor 04 ( high active )
26h – Car position Floor 06
– Carcall Floor 05 ( high active )
27h – Car position Floor 07
– Carcall Floor 06 ( high active )
28h – Car position Floor 08
– Carcall Floor 07 ( high active )
– Carcall Floor 08 ( high active )
S43A – Door 1-Open Button
S44A – Door 1-Close Button
S43B – Door 2-Open Button
Arrow – Traveldirection UP
Arrow – Traveldirection DOWN
