4. Remove the connectors from the main
PWB.
5. Release the wire from the 2 hookings
on the wire guide.
6. Remove a screw securing the ground
wire.

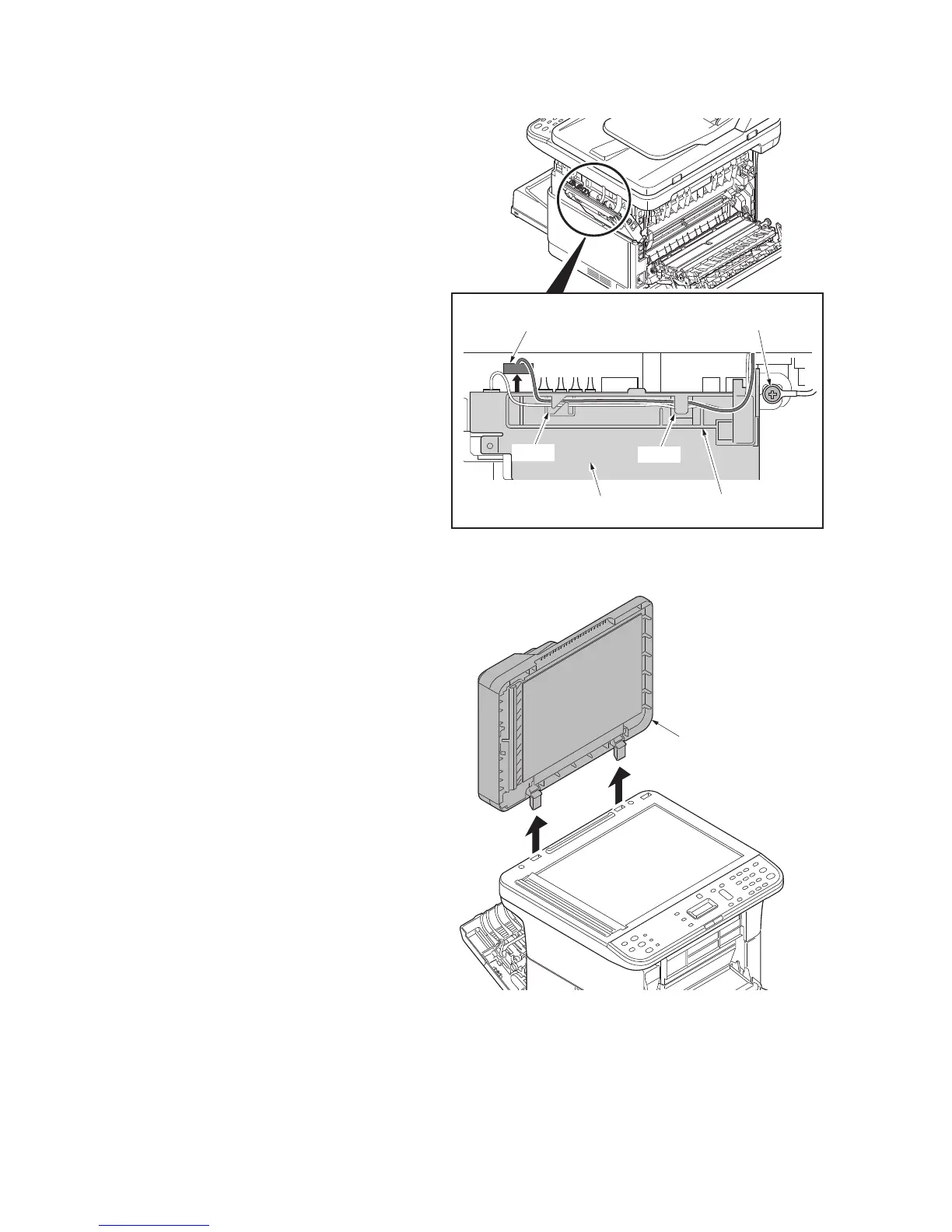

Figure 1-5-15
7. Open and lift the document processor
and remove.
Figure 1-5-16
Screw
Main PWB unit
Connector (YC19)
Wire guide
Hook
Hook
Document processor
