Kyocera ECOSYS FS-1020MFP

2M4/2M5/2M6/2M7
1-5-12

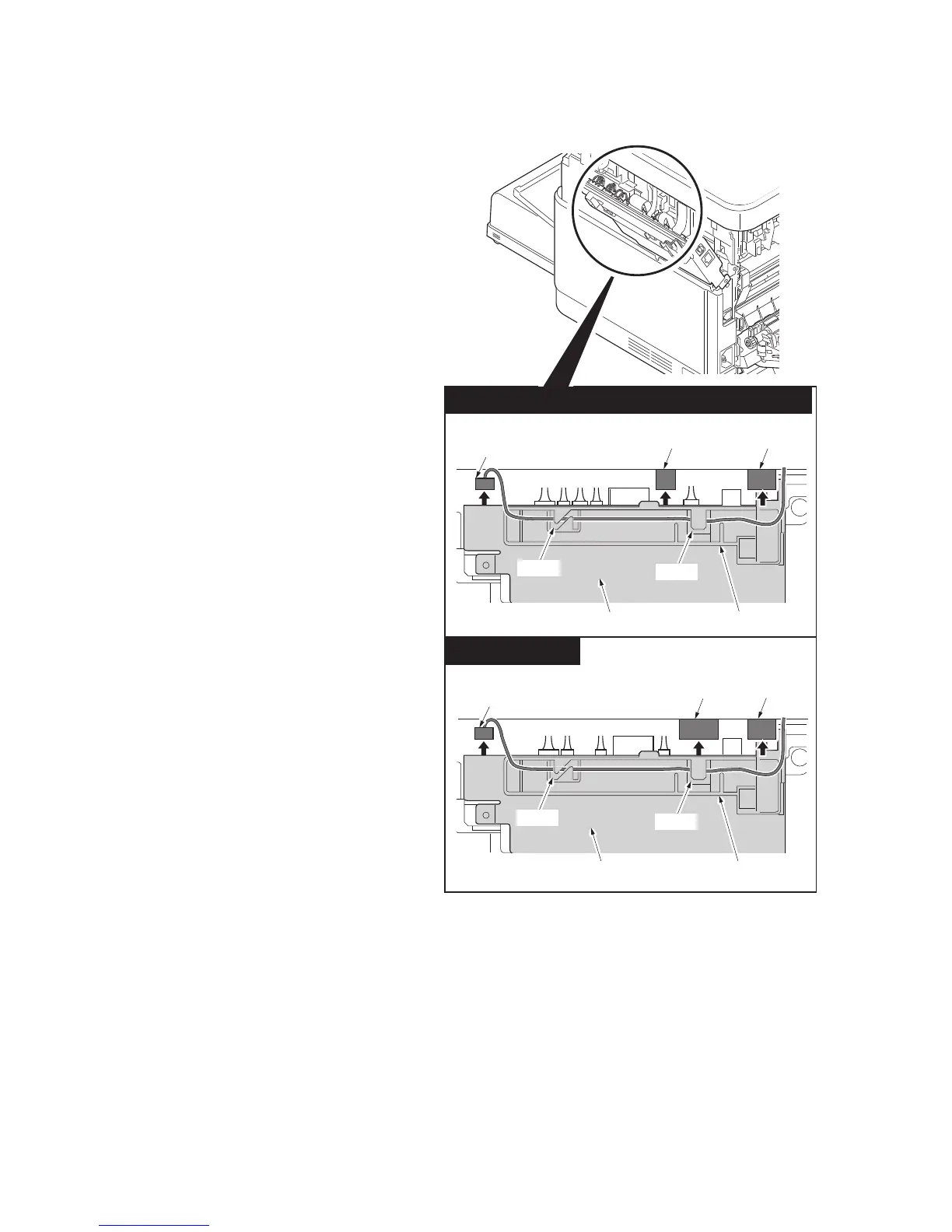

8. Detach the connector and two FFCs
from the main PWB.
9. Release the wire from the 2 hookings
on the wire guide.
Figure 1-5-17
3 in 1 20/21 ppm
4 in 1 25/26 ppm, 3 in 1 25/26 ppm, 4 in 1 20/21 ppm
Main PWB unit
Main PWB unit
Connector (YC18)
FFC (YC21)
FFC (YC8)
Connector (YC18)
FFC (YC6) FFC (YC8)
Hook
Hook
Wire guide
Hook
Hook
Wire guide
