Kyocera ECOSYS FS-1020MFP User Manual

2M4/2M5/2M6/2M7
1-5-19
4. Detach the following connectors and
FFC from the main PWB:
4 in 1 25/26 ppm model,
4 in 1 20/21 ppm model,
3 in 1 25/26 ppm model:
Seven connectors, four FFC
3 in 1 20/21 ppm model:
Five connectors, four FFC
5. Release the wire from the 2 hookings
on the wire guide.

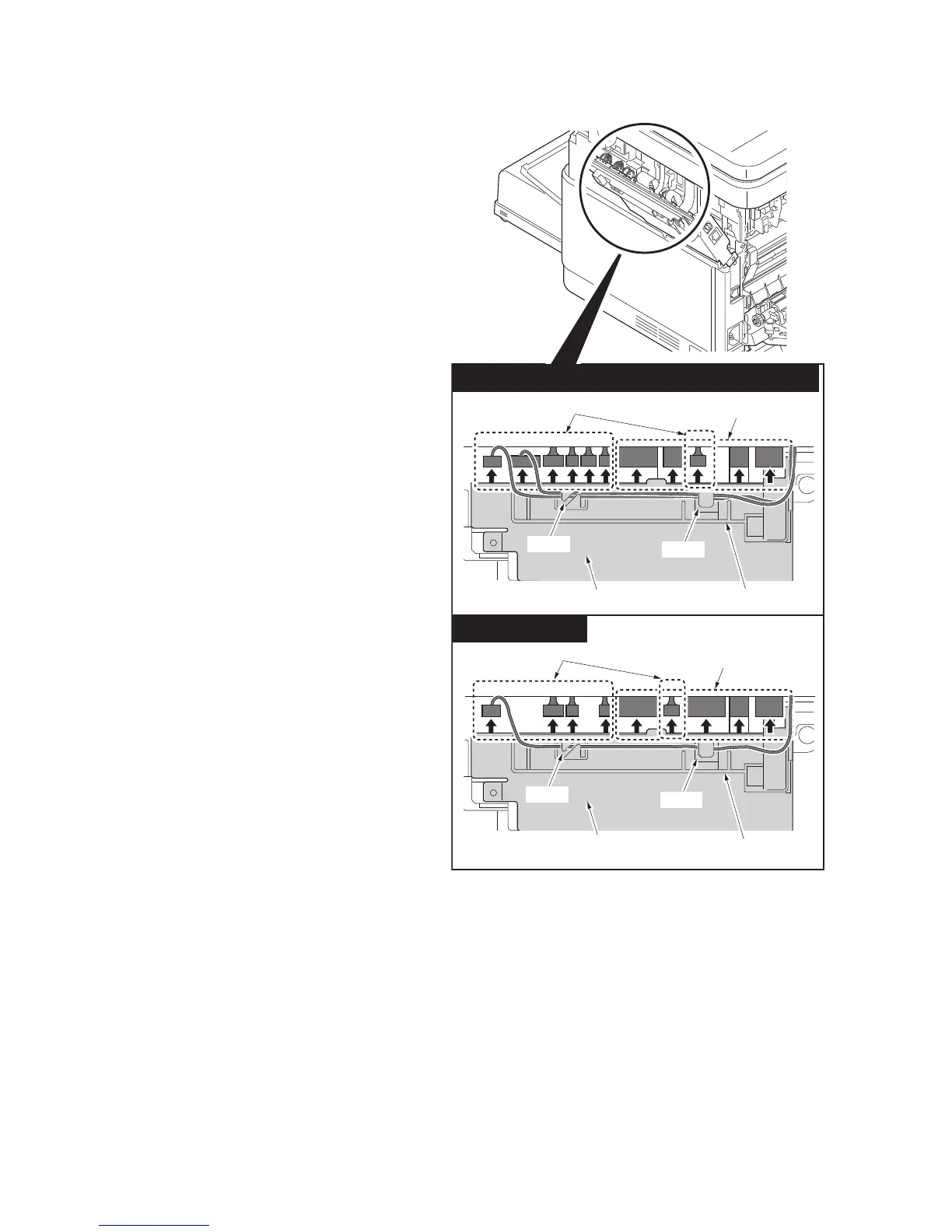

Figure 1-5-28
3 in 1 20/21 ppm
4 in 1 25/26 ppm, 3 in 1 25/26 ppm, 4 in 1 20/21 ppm
Seven connectors
Four FFC
Four FFC
Main PWB unit
Main PWB unit
Five connectors
Wire guide
Hook
Hook
Wire guide
Hook
Hook

Kyocera ECOSYS FS-1020MFP Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Monthly Duty Cycle	20, 000 pages
Time to First Page	8.5 seconds
Duplex Print Mode	Manual
Scan Type	Flatbed
Output Capacity	100 sheets
Maximum Paper Size	A4
Functions	Print, Copy, Scan
Memory	32 MB
Print Speed	20 ppm
Copy Speed	20 pages per minute
Maximum Scan Area	8.5 x 14 inches
Fax Transmission Speed	Not supported
