Kyocera ECOSYS FS-1020MFP

2M4/2M5/2M6/2M7
1-5-20

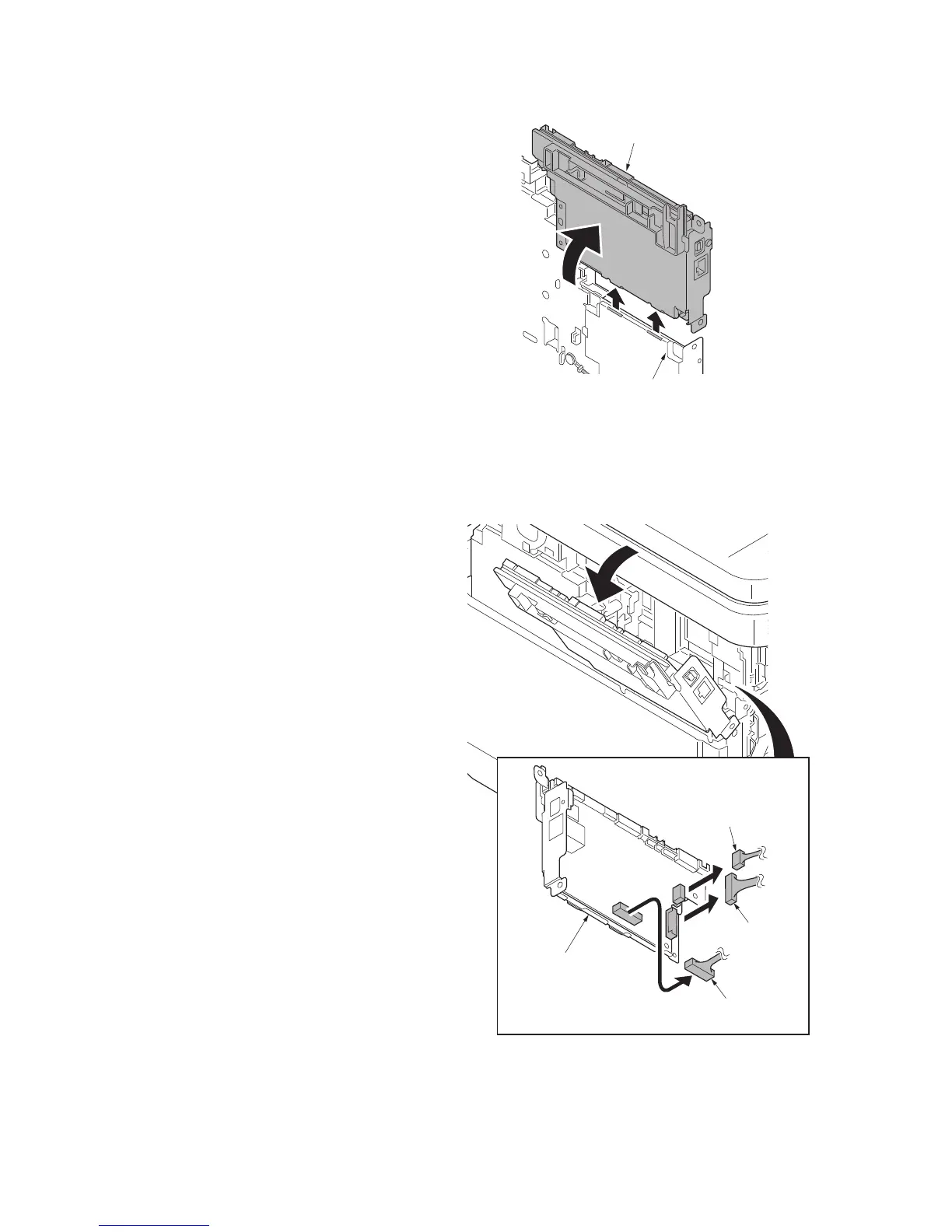

6. Raise the main unit board unit upright
and pull upwards to remove.
Figure 1-5-29
7. Detach the following connectors from
the main PWB:
4 in 1 25/26 ppm model,
4 in 1 20/21 ppm model:
Three connectors
3 in 1 25/26 ppm model,
3 in 1 20/21 ppm model:
Two connectors
Figure 1-5-30
Controller
unit
Main PWB unit
Main PWB unit
Connector(YC12)
Connector(YC13)
Connector (YC2)
(4 in 1 model only)
