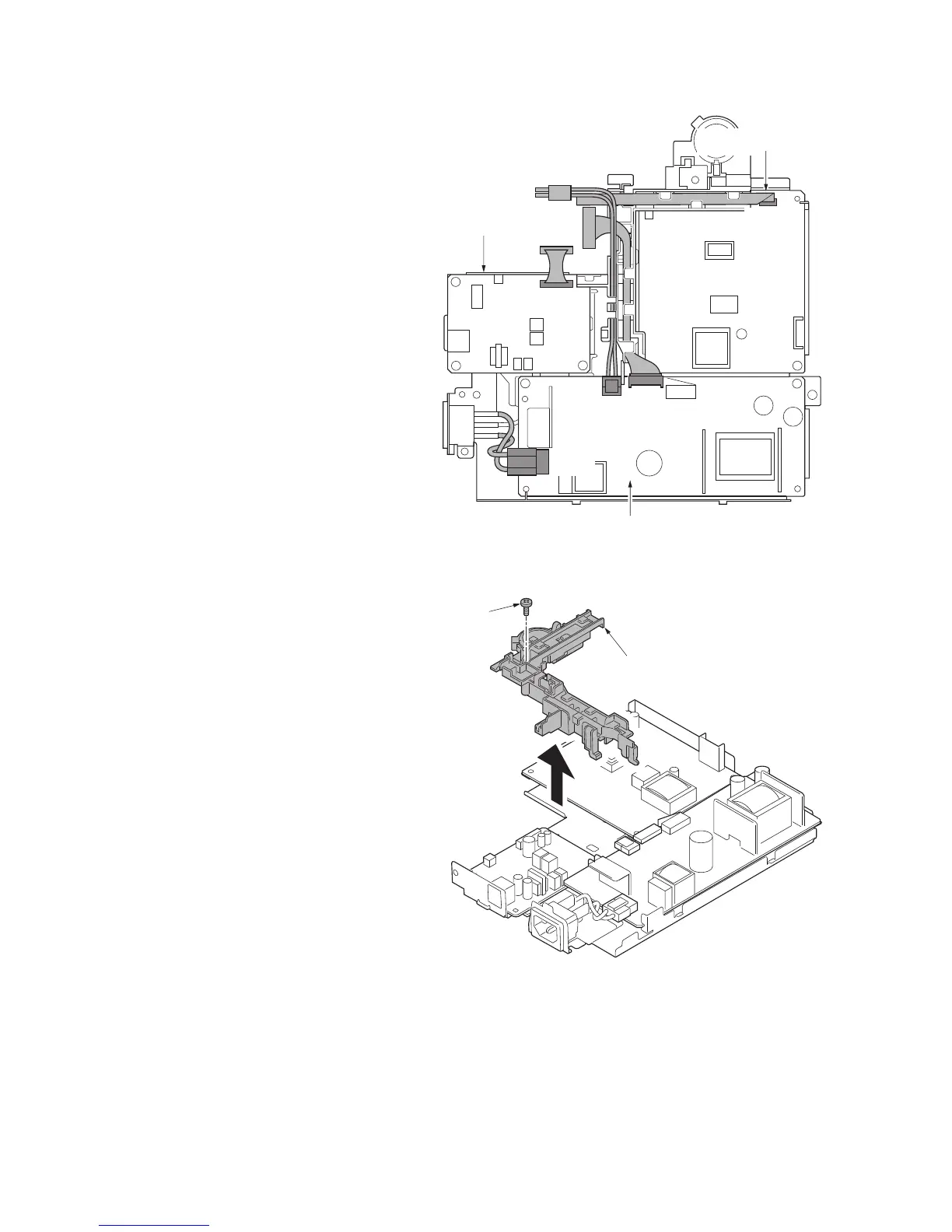

4. Remove the connector
(YC101) that connected to the High
voltage PWB.
5. Remove the connectors
(CN4) that connected to the FAX PWB.
6. Remove the three connectors
(YC101,YC102,YC103) that connected
to the power source PWB.
Figure 1-5-33
7. Remove screw and then remove the
Cable holder.
Figure 1-5-34
YC101
CN4
YC103
YC102
YC101
High voltage PWB
FAX PWB
Power source PWB
Cable holder
Screw
