Kyocera ECOSYS FS-1020MFP - Page 137

2M4/2M5/2M6/2M7
1-5-23
8. Remove four screws and then remove
the FAX PWB (4 in 1 model only).

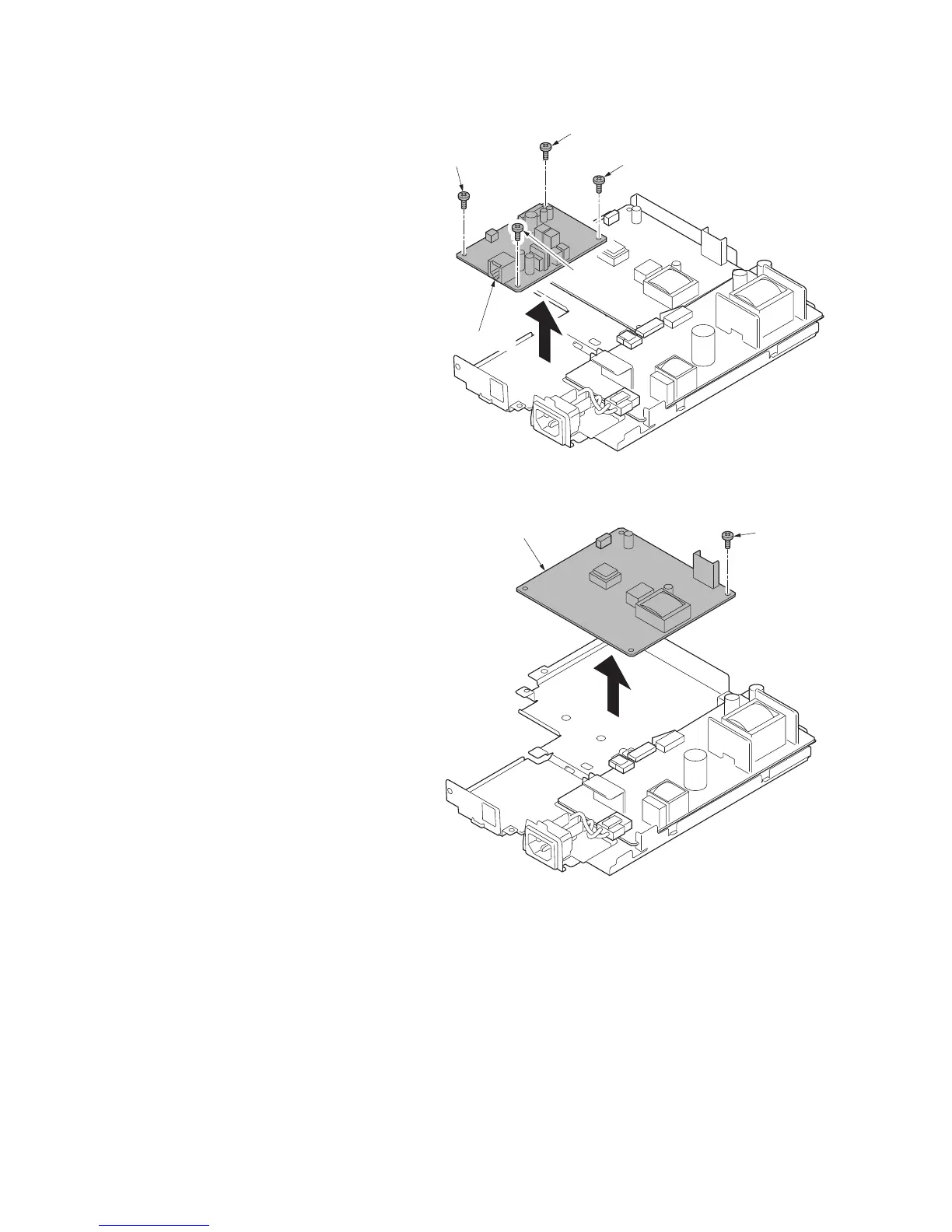

Figure 1-5-35
9. Remove screw and then remove the
high voltage PWB.
Figure 1-5-36
FAX PWB
Screw
Screw
Screw
Screw
Screw
High voltage PWB
