2M4/2M5/2M6/2M7
1-5-35

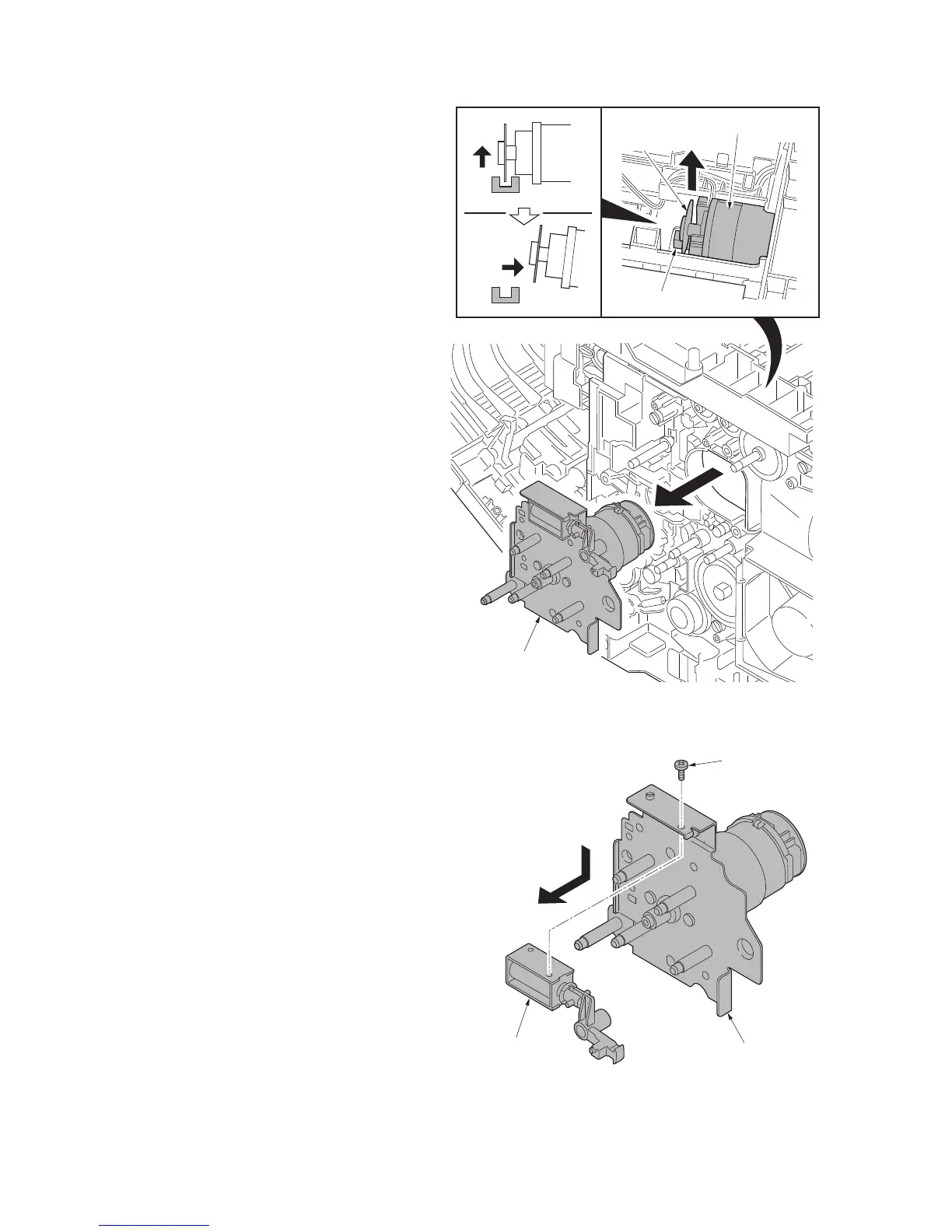

15. Remove the main motor unit so that the
pulse board will not hit the sensor.
Figure 1-5-56
16. Remove the screw and remove the
duplex solenoid from the main motor
unit (25/26 ppm model only).
17. Check or replace the main motor unit,
and refit all the removed parts.
*: To fit the main motor unit to the
machine, make sure not to let the pulse
board hit the sensor.
Figure 1-5-57
Main motor
Pulse board
Sensor
Main motor unit
Screw
Duplex solenoid
Main motor unit
To Next Page
