2M4/2M5/2M6/2M7
1-5-34

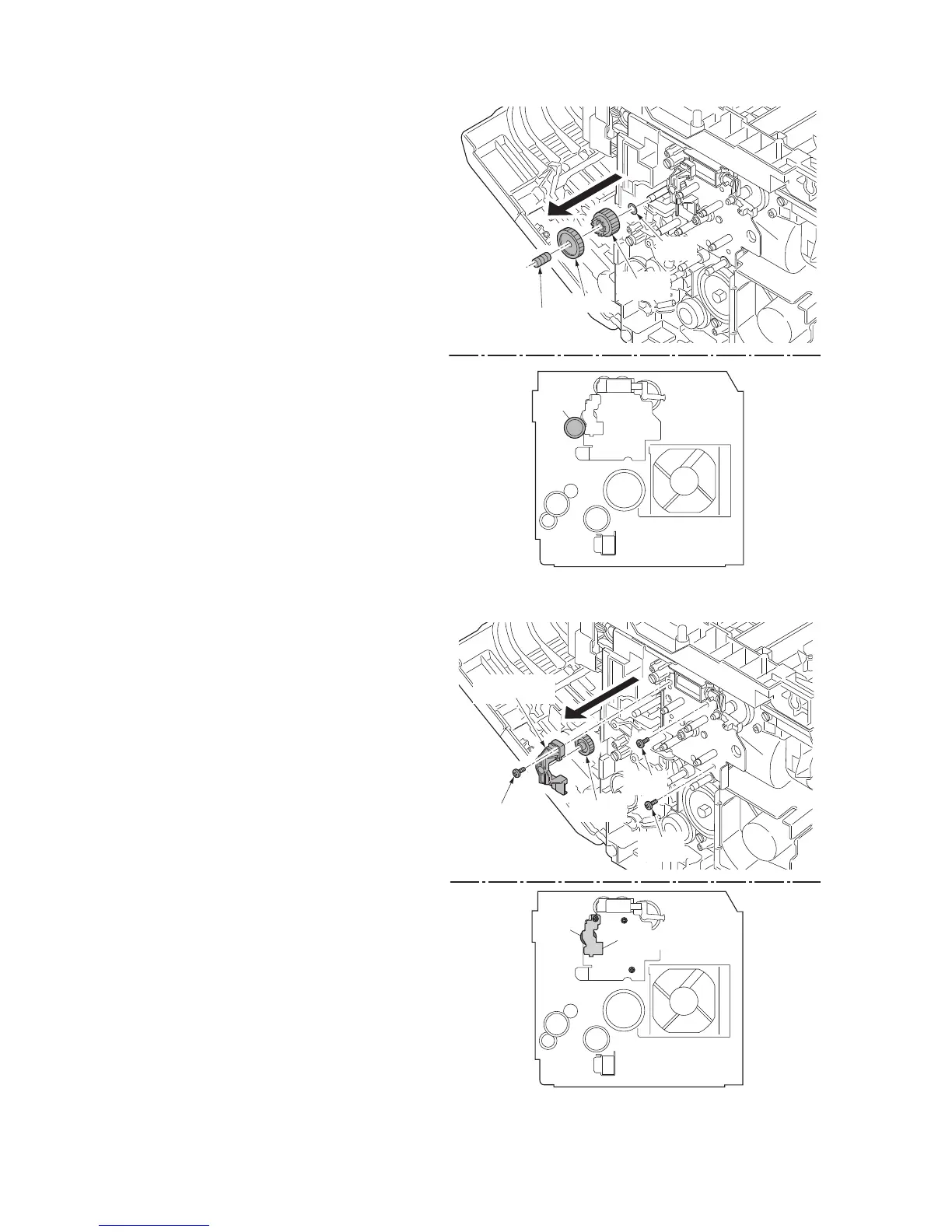

13. Remove the spring, gear M, gear N and
sim.
Figure 1-5-54
14. Remove the three screws and remove
the gear cover and gear P.
Figure 1-5-55
M,N
Sim
Gear N
Gear M
Spring
P
Gear cover
Gear cover
Screw
Screw
Screw
Gear P
