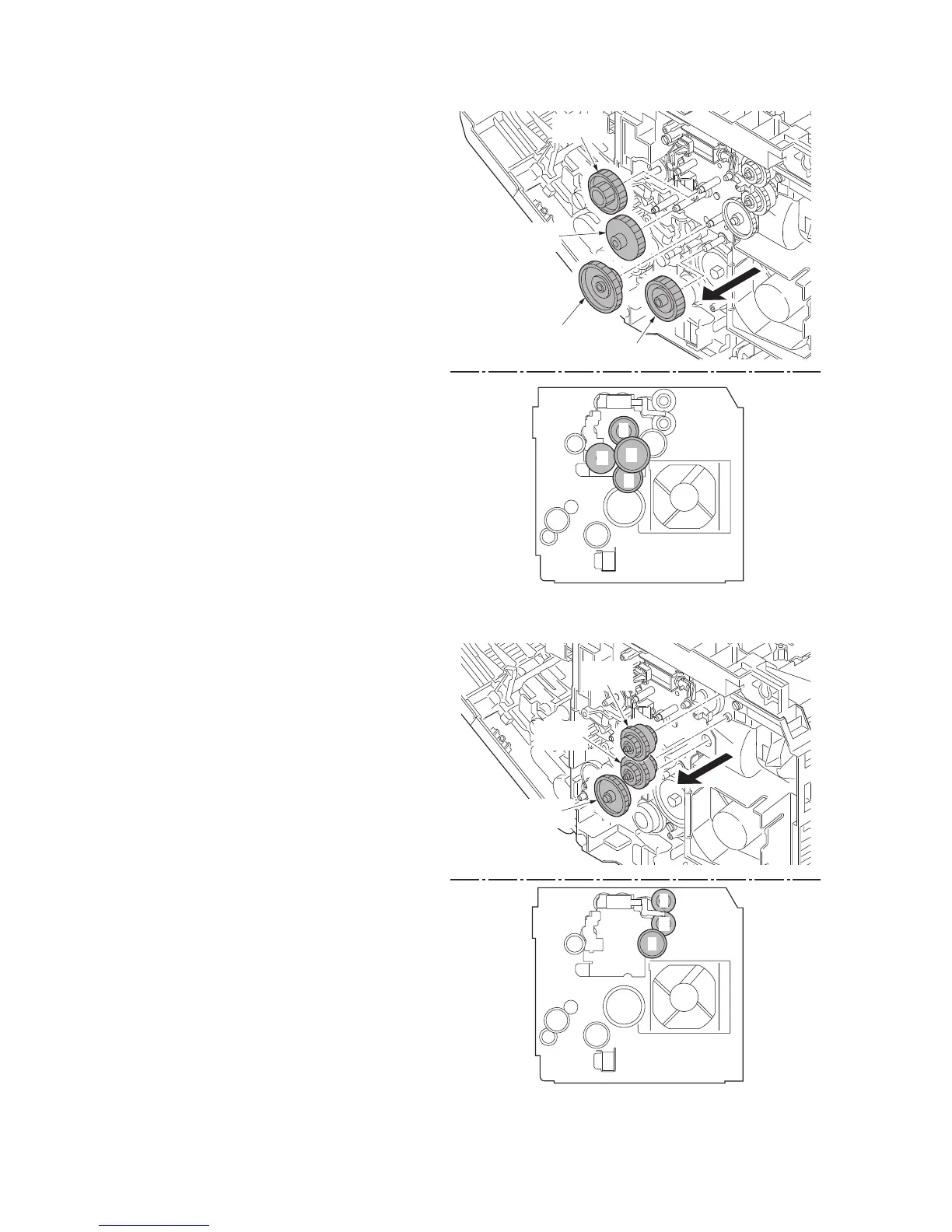

11. Remove the gear F, gear G, gear H and
gear I.
Figure 1-5-52
12. Remove the gear J, gear K and gear L
(25/26 ppm model only).
Figure 1-5-53
F
I
G
H
Gear I
Gear H
Gear F
Gear G
J
K
L
Gear L
Gear K
Gear J
