2M4/2M5/2M6/2M7
1-5-32

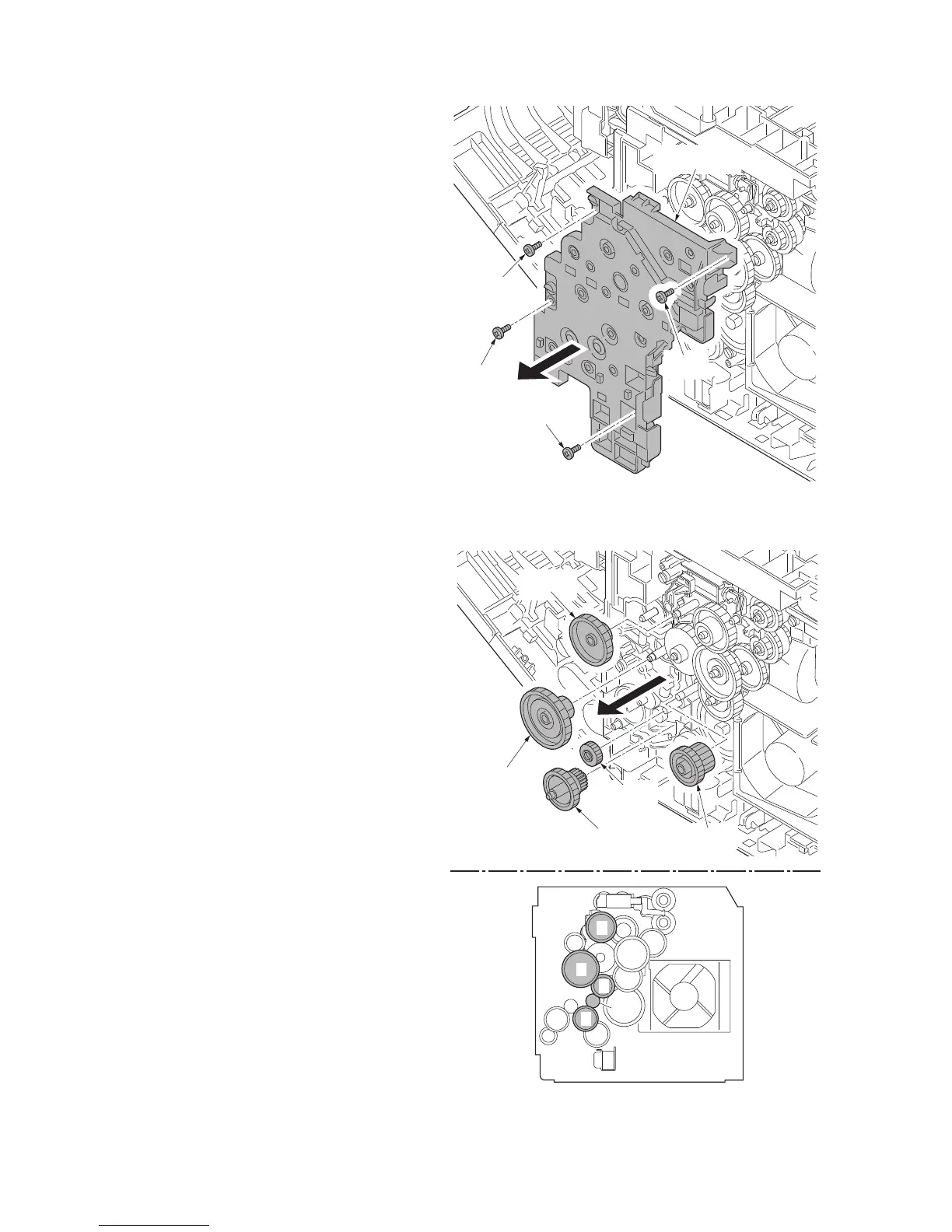

9.
Remove four screws and then remove
the drive cove
r
.
Figure 1-5-50
10.
Remove the gear A, gear B, gear C,
gear D and gear
E.
Figure 1-5-51
Drive cover
Screw
Screw
Screw
Screw
B
A
E
D
C
Gear E
Gear A
Gear C
Gear B
Gear D
145
147
Table of Contents
Service Manual
1
Revision History
3
Safety Precautions
5
Installation Precautions
7
Table of Contents
11
Specifications
15
Parts Names
24
Machine
24
Operation Panel
26
Machine Cross Section
27
20/21 Ppm Model
27
25/26 Ppm Model
28
ISU/DP Section
29
Installation Environment
31
Unpacking and Installation
33
Installation Procedure
33
Service Mode
53
Executing a Service Mode
53
Operation Method
54
Status Page
58
Event Log
62
Maintenance Menu
71
Items for Various Settings
73
Service Package
75
Paper Misfeed Detection
77
Paper Misfeed Indication
77
Paper Misfeed Detection Condition
78
Self-Diagnostic Function
81
Self Diagnostic Codes
82
Image Formation Problems
86
No Image Appears (Entirely White)
86
No Image Appears (Entirely Black)
87
Part of Image Is Missing
88
Gray Background
88
White Streaks Are Printed Vertically
89
Black Streaks Are Printed Vertically
89
White or Black Streaks Are Printed Horizontally
89
Spots Are Printed.printing Incomplete or out of Position
90
Printing Incomplete or out of Position
90
Paper Is Wrinkled
90
Offset Occurs
91
Fusing Is Loose
91
Faint or Blurred Printing
91
Dirt on the Top Edge or Back of the Paper
92
Image Center Does Not Align with the Original Center
92
Spots in the Printed Objects
92
Electric Problems
93
Mechanical Problems
96
Error Messages
98
Send Error List
103
Error Codes
104
Error Code
104
Table of General Classification
105
U004XX Error Code Table: Interrupted Phase B
108
U006XX Error Code Table: Problems with the Unit
109
U008XX Error Code Table: Page Transmission Error
109
U009XX Error Code Table: Page Reception Error
109
U010XX Error Code Table: G3 Transmission
110
U011XX Error Code Table: G3 Reception
112
U017XX Error Code Table: V.34 Transmission
113
U018XX Error Code Table: V.34 Reception
114
U023XX Error Code Table: Relay Command Abnormal Reception
114
U044XX Error Code Table: Encrypted Transmission
114
Precautions for Assembly and Disassembly
115
Precautions
115
Drum
115
Toner
115
How to Tell a Genuine Kyocera Toner Container
116
Outer Covers
117
Detaching and Refitting the Right Upper Cover and Rear Upper Cover R
117
Detaching and Refitting the Left Upper Cover and Rear Upper Cover L
118
Detaching and Refitting the Right Cover
119
Detaching and Refitting the Left Cover
120
Detaching and Refitting the Top Cover
121
Optical Section
124
Detaching and Refitting the Scanner Unit
124
Detaching and Refitting the Laser Scanner Unit
129
Fuser Section
131
Detaching and Refitting the Fuser Unit
131
Pwbs
132
Detaching and Refitting the Main PWB
132
Detaching and Refitting the High Voltage PWB, Power Source PWB and FAX PWB (4 in 1 Model Only)
135
Document Processor (4 in 1 20/21,25/26 Ppm Model, 3 in 1 25/26 Ppm Model Only)
139
Detaching and Refitting the Document Processor
139
Detaching and Refitting the DP Forward Roller and DP Paper Feed Roller
141
Detaching and Refitting the DP Separation Pad
143
Others
144
Detaching and Refitting the Main Motor Unit
144
Direction of Installing the Principal Fan Motor
150
Upgrading the Firmware
151
Remarks on Main PWB Replacement
156
Paper Feed/ Conveying Section
157
Cassette Paper Feed/ Paper Conveying Section
157
Manual Feed Section (25/26 Ppm Model Only)
158
Drum Section
160
Developer Section
161
Optical Section
162
Scanner Unit
162
Laser Scanner Section
163
Transfer/Separation Section
166
Fuser Section
167
Duplex Conveying/Eject Section
169
Document Processor (DP)
171
Electrical Parts Layout
173
Pwbs
173
Switches and Sensors
175
Others
176
Document Processor (3 in 1 25/26 Ppm Model, 4 in 1 20/21, 25/26 Ppm Model)
177
Main PWB
179
In 1 25/26 Ppm Model, 4 in 1 20/21, 25/26 Ppm Model
179
In 1 20/21 Ppm Model
186
Relay PWB PWB
190
Power Source PWB
192
FAX Control PWB
194
Operation Panel PWB
196
Maintenance Kits
199
Procedure for Replacing Maintenance Kit
200
Checking the Components Included and Preparing the Paper-Feed Replacement Unit for Installation
200
Preparing the Machine
202
Detaching the Drum Unit
204
Detaching the Developer Unit
205
Detaching the Toner Disposal Box
205
Detaching and Refitting the Paper Feed Pulley and Lower Paper Feed Guide
206
Refitting the Toner Disposal Box
210
Refitting the Developer Unit
210
Refitting the Drum Unit
211
Detaching and Refitting the Transfer Roller
212
Notice after Replacing Maintenance Kit
213
Procedure for Only Replacing Drum Unit
215
Procedure for Only Replacing Developer Unit
216
Cleaning the Machine
218
Interior of the Machine
218
Slit Glass Cover
219
