2M4/2M5/2M6/2M7
2-4-9

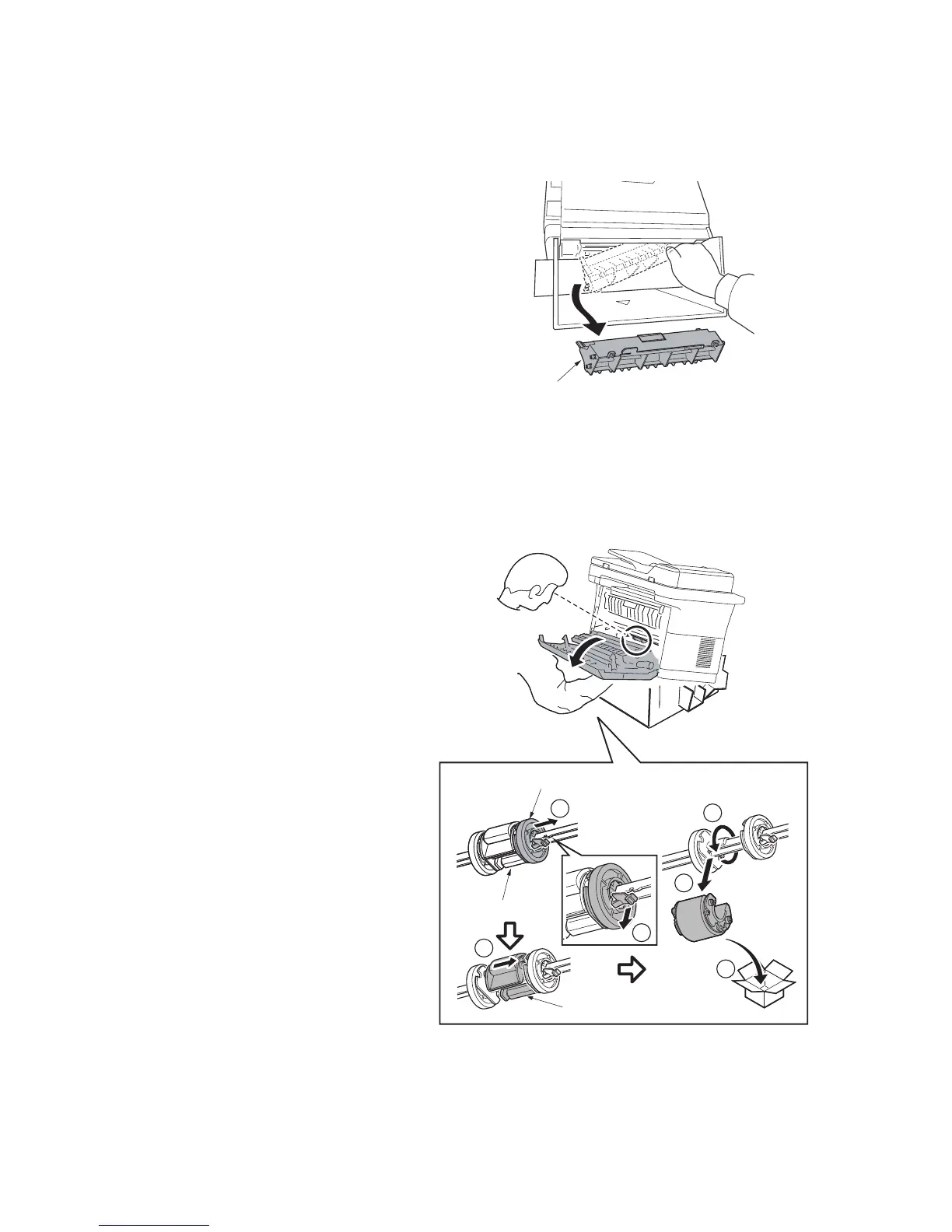

5. Remove the lower paper feed guide in
the reverse direction of its sliding
direction and pull askew and upwards.
Figure 2-4-18
6. Detaching the paper feed pulley
1.Open the rear cover.
Note:
Perform steps while checking the feed
roller from the paper feed side.
2.Raise the left side lever of the roller
holder.
3.Slide the roller holder leftward.
4.Slide the paper feed pulley.
5.Pull the feed roller by turning it.
Figure 2-4-19
Lower paper feed guide
1
2
3
4
5
6
Left roller holder
Roller feed assy
Paper feed
pulley
